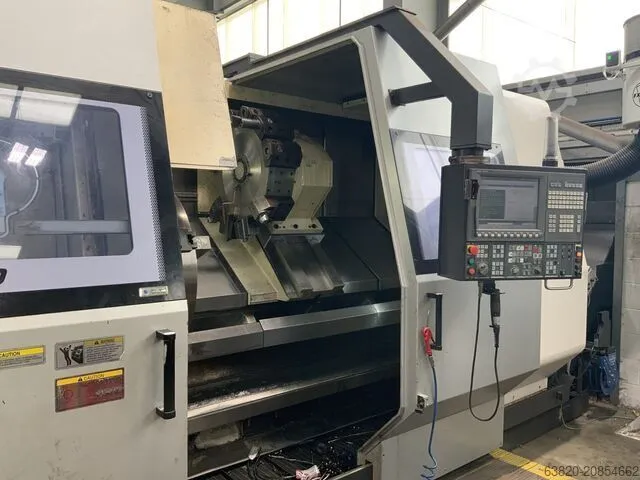

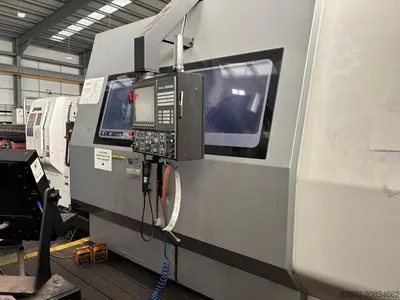

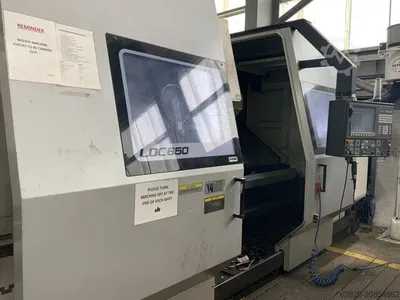

NEW OKUMA LOC650/1750 1ST
Overview
Description
2013 OKUMA LOC 650 Hollow Spindle CNC Oil Country Lathe with 15" Hole Thru, 2 - 34" Chucks
Okuma LOC series hollow spindle lathes, like the popular LOC-650, are heavy-duty oil country machines featuring large spindle bores (e.g., 375mm/14.76" on the LOC-650), big chucks (e.g., 850mm/33.46"), powerful spindle motors (e.g., 45kW/60hp), OSP CNC controls, upper/lower turrets for complex tasks, and capabilities for large diameter pipes and oilfield components, with specs varying by model and year.
Our LOC650 is capable of performing the tightest threading functions on big pipes with precision and speed. With three spindle bore variations specifically designed for this machine, it is able to accommodate large diameter pipes. Okuma's Oil Field "Threading Suite" is custom-designed to combine variable speed threading and harmonic spindle control that delivers an exact match between infeed patterns and cutting increments. Our lathes are known for their power and control. Though huge in scale, the LOC650 delivers Okuma precision with optimum efficiency.
Power on 20,538
N/C Running Time 2,270 Hours
Spindle Revolution Time 2287 Hours
Cutting Time 1,691 Hours
Specifications
| Swing | 31.5" | 800.1 mm |
|---|---|---|
| Centers | 68.9" | 1,750.1 mm |
| Spindle Bore | 15" | 381 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 500 RPM | 500 RPM |

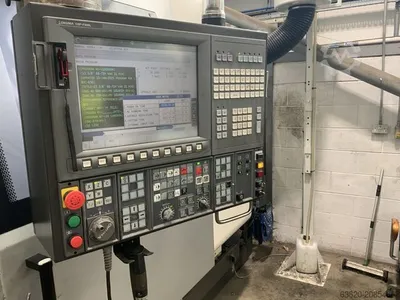

| Control | CNC (OKUMA OSP P300L) | CNC (OKUMA OSP P300L) |
| Dimensions | Length 6.4 m, Width 2.8 m, Height 2,843 mm | Length 6.4 m, Width 2.8 m, Height 2,843 mm |
| Weight | 23,000 kg | 23,000 kg |
Swing over Bed: 1030mm (40”)
Max. Turning Dia.: 650mm (25.59”)
12 Station Upper Turret
Max. Work Length: 1750mm (68.90”)
Spindle Motor: 60HP
Spindle Bore: 375mm dia.(15”)
Spindle Speeds: 5 - 500 RPM
Spindle Nose: ASA A2-20
Rapid Traverse X/Z (ipm): 197/394
Equipped With
- SMW Autoblok BB-N850-375-3-ES Big Bore Air Chucks (front & rear)
Swarf Conveyor
Coolant System
