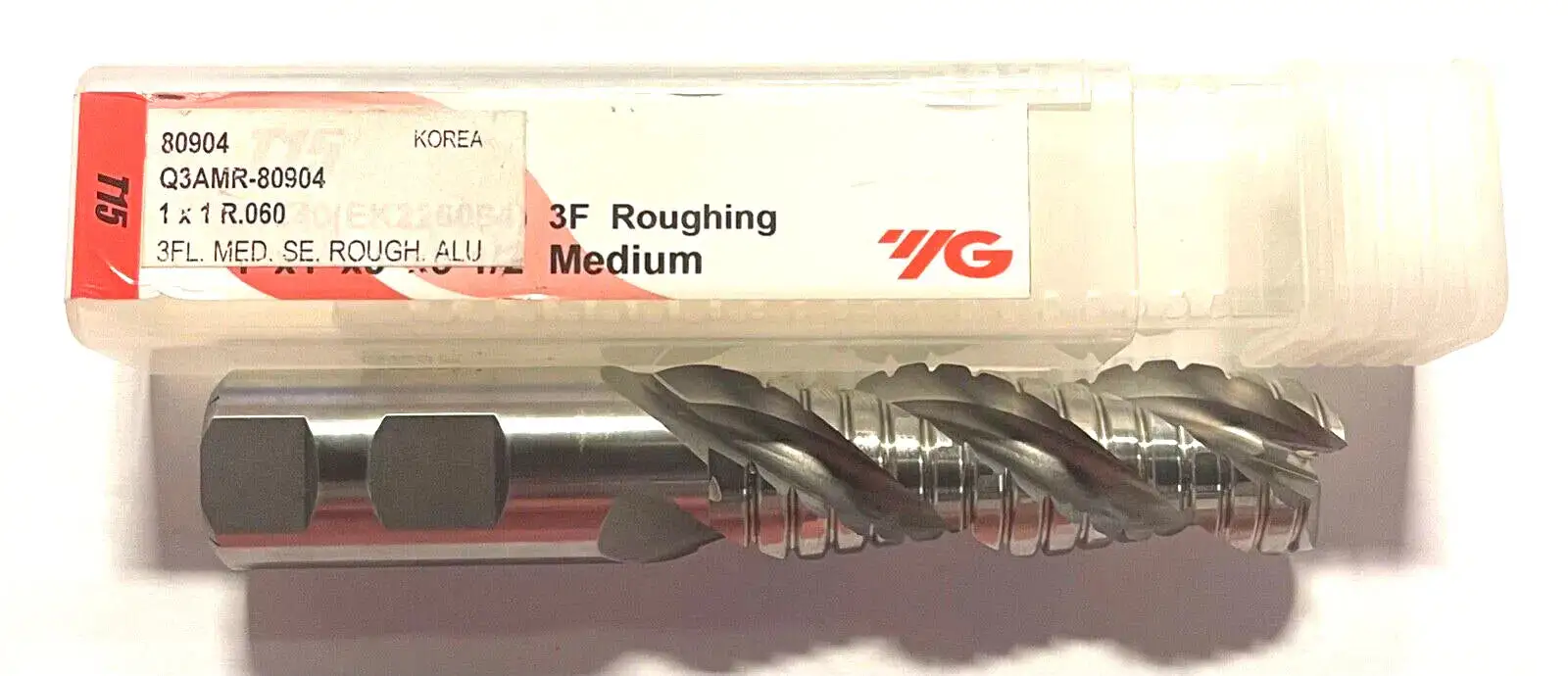

YG-1 Cobalt T15 Roughing End Mill 1" x 1" x 3" x 5-1/2" Medium length .060 3FL

YG-1

COBALT ROUGHING END MILL

Cutting Diameter (DC): 1″
End Shape: Corner Radius
Connection Diameter Machine Side (DCONMS): 1″
Applicable Material: Aluminum / Non-Ferrous Materials
Depth of Cut Maximum (APMX): 3″
Corner Radius (RE): 0.06″
Overall Length (OAL): 5-1/2″
Tool Type: T15, 3 Flute 42°Helix and Medium Length Roughing With Corner Radius for Aluminum
Cutting Edge Material: T15
Length Group: Medium
Coating: Bright
Flute Type: Roughing
Flute Count (NOF): 3
Decimal Equivalent: 1″
Flute Helix Angle (FHA): 42 Degrees
Measurement Type: Inch
Shank Type: Flat
Series/List #: EK226
