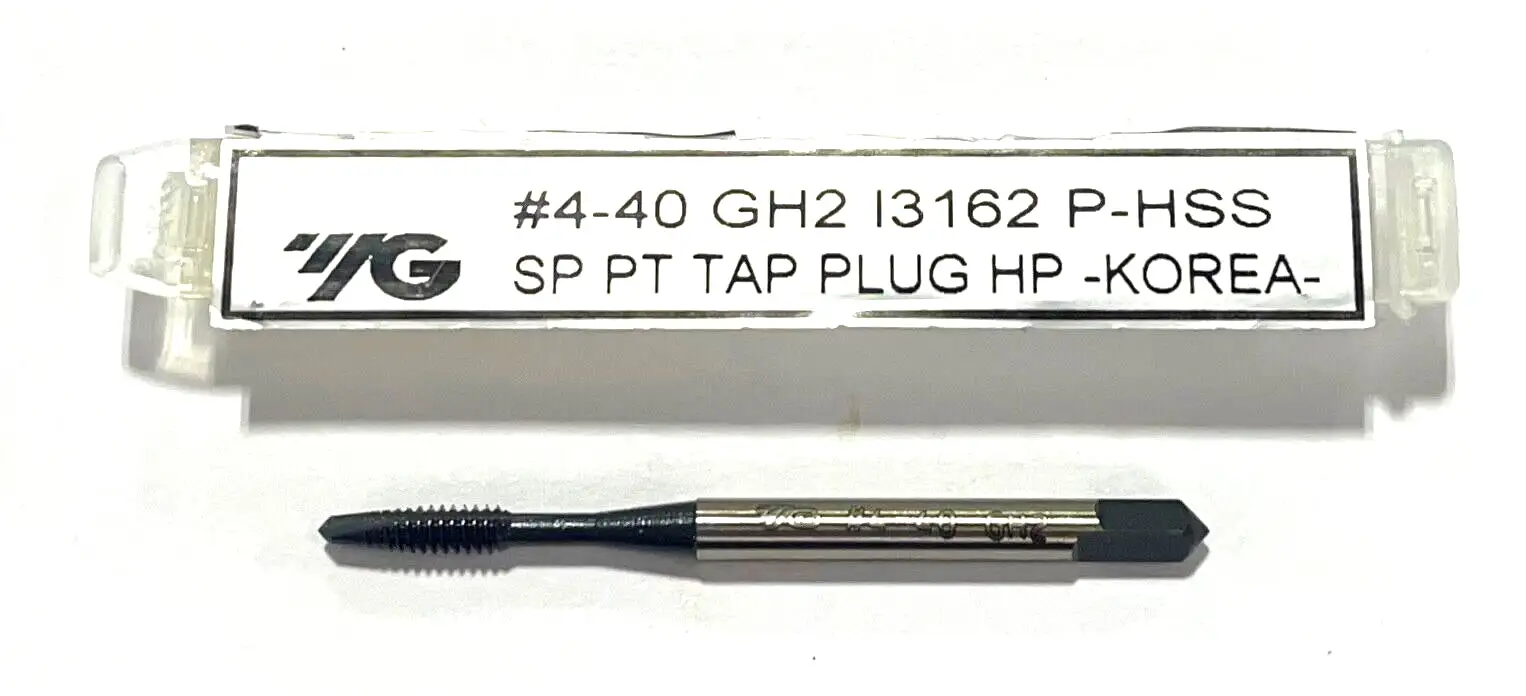

YG-1 4-40 HSSPM Spiral Point Plug Tap 2FL GH2 High Performance Tap

YG-1

HSSPM SPIRAL POINT TAP

Thread Standard: | UNC |
Connection Diameter Machine Side (DCONMS): 0.141″
Thread Size: #4 - 40
Thread Cutting Part Length (THL): 0.335″
Thread Diameter Size (TDZ): #4
Flute Helix Angle (FHA): 0 Degrees
Threads per Inch (TPI): 40
Tapping Prehole Diameter (Pre-hole): 0.089″
Thread Tolerance Class (TCTR): | H2 |
End Shape: Plug
Usable Length (LU): 0.563″
Shank Type: Square
Overall Length (OAL): 1.88″
Coolant Supply Property (CSP): No
Chamfer: 4P-5P
Length Group: 3xD
Coating: | Black Oxide |
Square Size: 0.11″
Flute Count (NOF): 2
Measurement Type: Inch
Cutting Edge Material: HSSPM
Series/List #: I3
Tool Type: Spiral Point Tap
