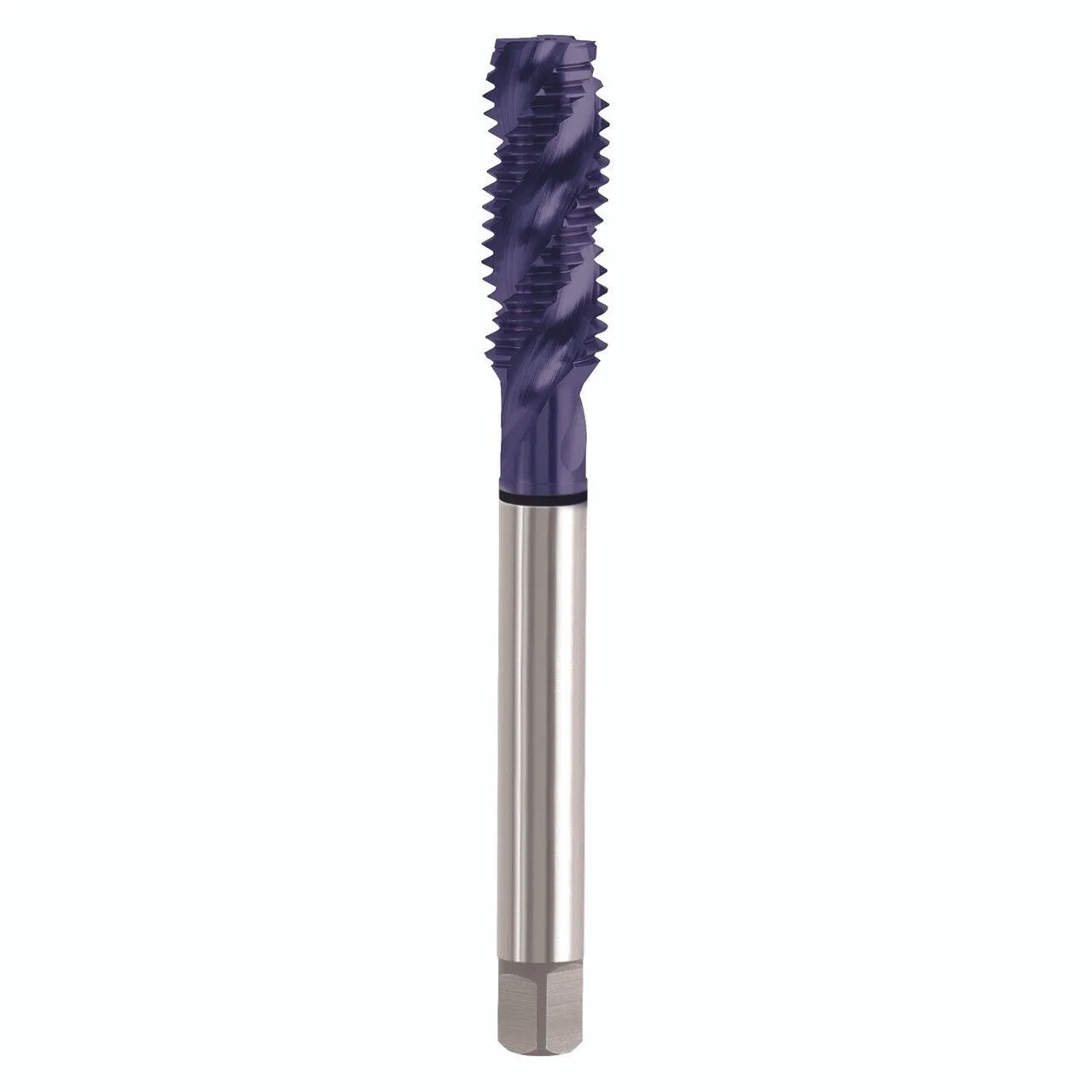

YG 7/8"-14 HSS-EX Spiral Flute Tap 3 Flute H6 Modified Bottoming Black Ring TiCN

YG-1

HSS-EX SPIRAL FLUTE MODIFIED BOTTOMING TAP

EDP Number
T2766C
Size & Pitch
7/8-14
Diameter (Decimal Inch)
0.8750"
Diameter (mm)
22.23mm
Overall Length (Decimal Inch)
4.6900"
Length/Diameter
2.5xD
Chamfer Type
Modified Bottoming
Overall Length (mm)
119.13mm
Thread Length (Decimal Inch)
0.7090"
Thread Length (mm)
18.01mm
Square Length (Decimal Inch)
0.7500"
Square Length (mm)
19.05mm
Shank Diameter (Decimal Inch)
0.6970"
Shank Diameter (mm)
17.70mm
Square Size (Decimal Inch)
0.5230"
Square Size (mm)
13.28mm
Neck Diameter (Decimal Inch)
0.6850"
Connection (mm)
17.7 x 13.28mm
Connection (Decimal Inch)
0.697 x 0.523"
Useable Length (Decimal Inch)
2.8150"
Neck Diameter (mm)
17.40mm
Drill Size (Decimal Inch)
0.8101"
Drill Size (mm)
20.58mm
Useable Length (mm)
71.50mm
Thread Series
UNF
Pitch Limit
H6
Chamfer Length
2P-3P
Finish
TICN
Blank Standard
302A
Helix Angle (Degree)
40 Degree
Number of Flutes
4
Tap Type
SPFL
Shank Type
Square
Coolant Through
No
Ring Color
Black
Trade Name
Combo Tap
Series
T2-C
Material
HSS-EX
Product Type
Spiral Flute Bottom Tap
