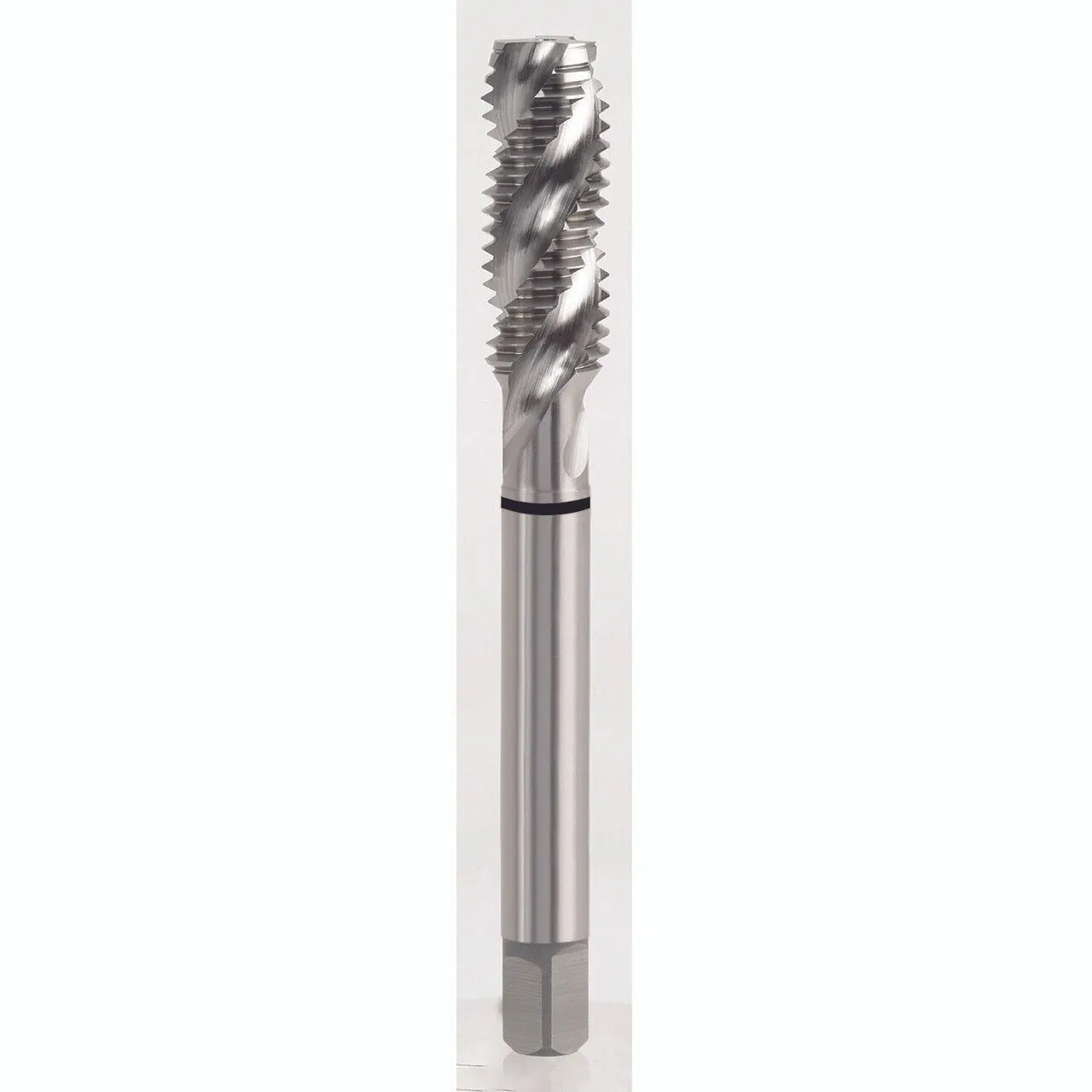

YG 5/8"-18 HSS-EX Spiral Flute Tap 4 Flute GH5 Modified Bottoming Black Ring Tap

YG-1

HSS-EX SPIRAL FLUTE MODIFIED BOTTOMING TAP

EDP Number
T2665
Size & Pitch
5/8-18
Diameter (Decimal Inch)
0.6250"
Diameter (mm)
15.88mm
Overall Length (Decimal Inch)
3.8100"
Length/Diameter
2.5xD
Chamfer Type
Modified Bottoming
Overall Length (mm)
96.77mm
Thread Length (Decimal Inch)
0.5120"
Thread Length (mm)
13.00mm
Square Length (Decimal Inch)
0.5600"
Square Length (mm)
14.22mm
Shank Diameter (Decimal Inch)
0.4800"
Shank Diameter (mm)
12.19mm
Square Size (Decimal Inch)
0.3600"
Square Size (mm)
9.14mm
Neck Diameter (Decimal Inch)
0.4690"
Connection (mm)
12.19 x 9.14mm
Connection (Decimal Inch)
0.48 x 0.36"
Useable Length (Decimal Inch)
2.2050"
Neck Diameter (mm)
11.91mm
Drill Size (Decimal Inch)
0.5745"
Drill Size (mm)
14.59mm
Useable Length (mm)
56.01mm
Thread Series
UNF
Pitch Limit
H5
Chamfer Length
2P-3P
Finish
Bright
Blank Standard
302A
Helix Angle (Degree)
40 Degree
Number of Flutes
4
Tap Type
SPFL
Shank Type
Square
Coolant Through
No
Ring Color
Black
Trade Name
Combo Tap
Series
T2
Material
HSS-EX
Product Type
Spiral Flute Tap
