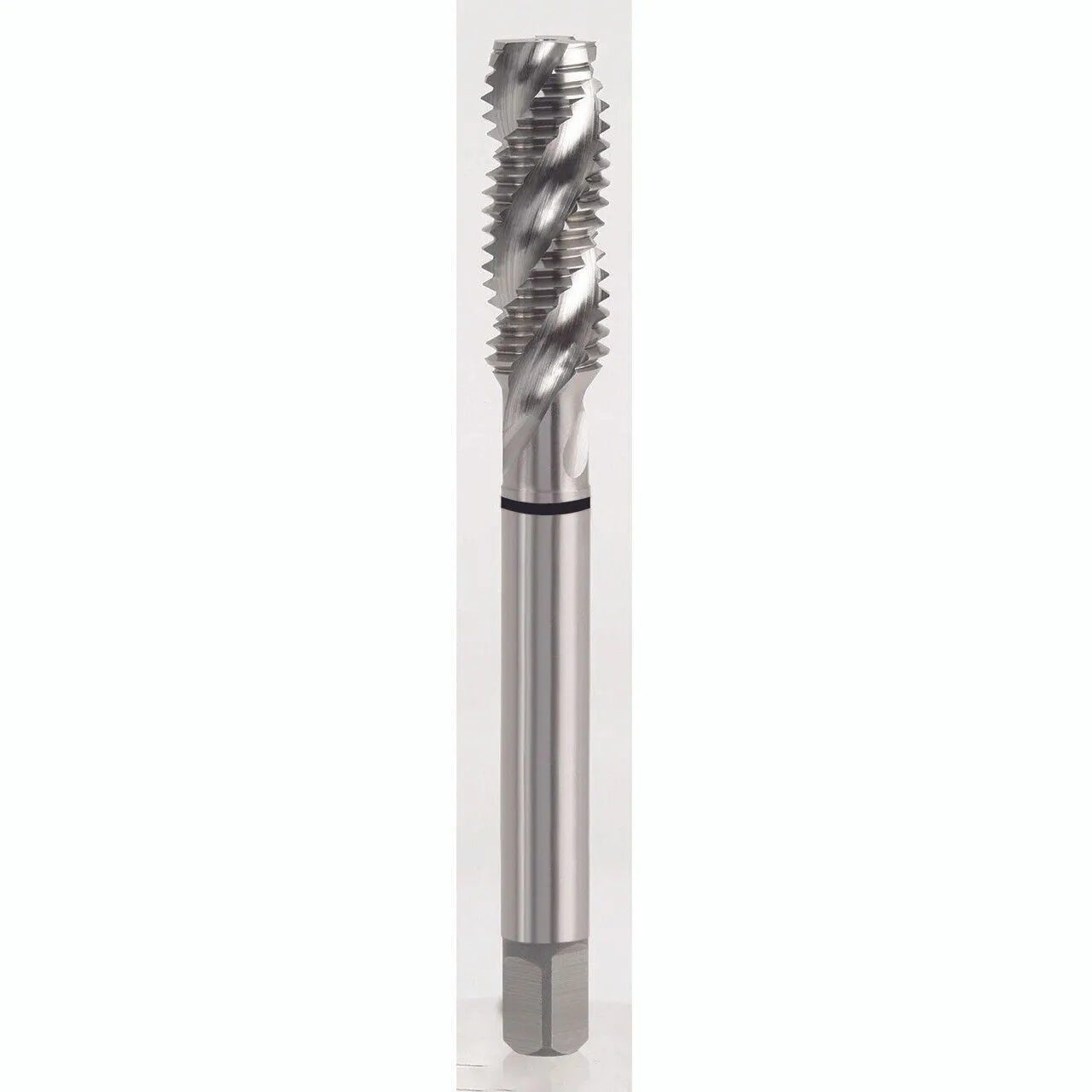

YG 12-24 HSS-EX Spiral Flute Tap 3 Flute H3 Modified Bottoming Black Ring Tap

Michigan US

new

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
YG 12-24 HSS-EX Spiral Flute Tap 3 Flute H3 Modified Bottoming Black Ring Tap

YG 12-24 HSS-EX Spiral Flute Tap 3 Flute H3 Modified Bottoming Black Ring Tap

USD $4.00

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Other Cutting Tools
Description

YG-1

HSS-EX SPIRAL FLUTE MODIFIED BOTTOMING TAP

Product Specifications
EDP Number
T2363
Size & Pitch
#12-24
Diameter (Decimal Inch)
0.2160"
Diameter (mm)
5.49mm
Overall Length (Decimal Inch)
2.3800"
Length/Diameter
2.5xD
Chamfer Type
Modified Bottoming
Overall Length (mm)
60.45mm
Thread Length (Decimal Inch)
0.3540"
Thread Length (mm)
8.99mm
Square Length (Decimal Inch)
0.2800"
Square Length (mm)
7.11mm
Shank Diameter (Decimal Inch)
0.2200"
Shank Diameter (mm)
5.59mm
Square Size (Decimal Inch)
0.1650"
Square Size (mm)
4.19mm
Neck Diameter (Decimal Inch)
0.1570"
Connection (mm)
5.59 x 4.19mm
Connection (Decimal Inch)
0.22 x 0.165"
Useable Length (Decimal Inch)
0.9060"
Neck Diameter (mm)
3.99mm
Drill Size (Decimal Inch)
0.1781"
Drill Size (mm)
4.52mm
Useable Length (mm)
23.01mm
Thread Series
UNC
Pitch Limit
H3
Chamfer Length
2P-3P
Finish
Bright
Blank Standard
302A
Helix Angle (Degree)
40 Degree
Number of Flutes
3
Tap Type
SPFL
Shank Type
Square
Coolant Through
No
Ring Color
Black
Trade Name
Combo Tap
Series
T2
Material
HSS-EX
Product Type
Spiral Flute Tap
