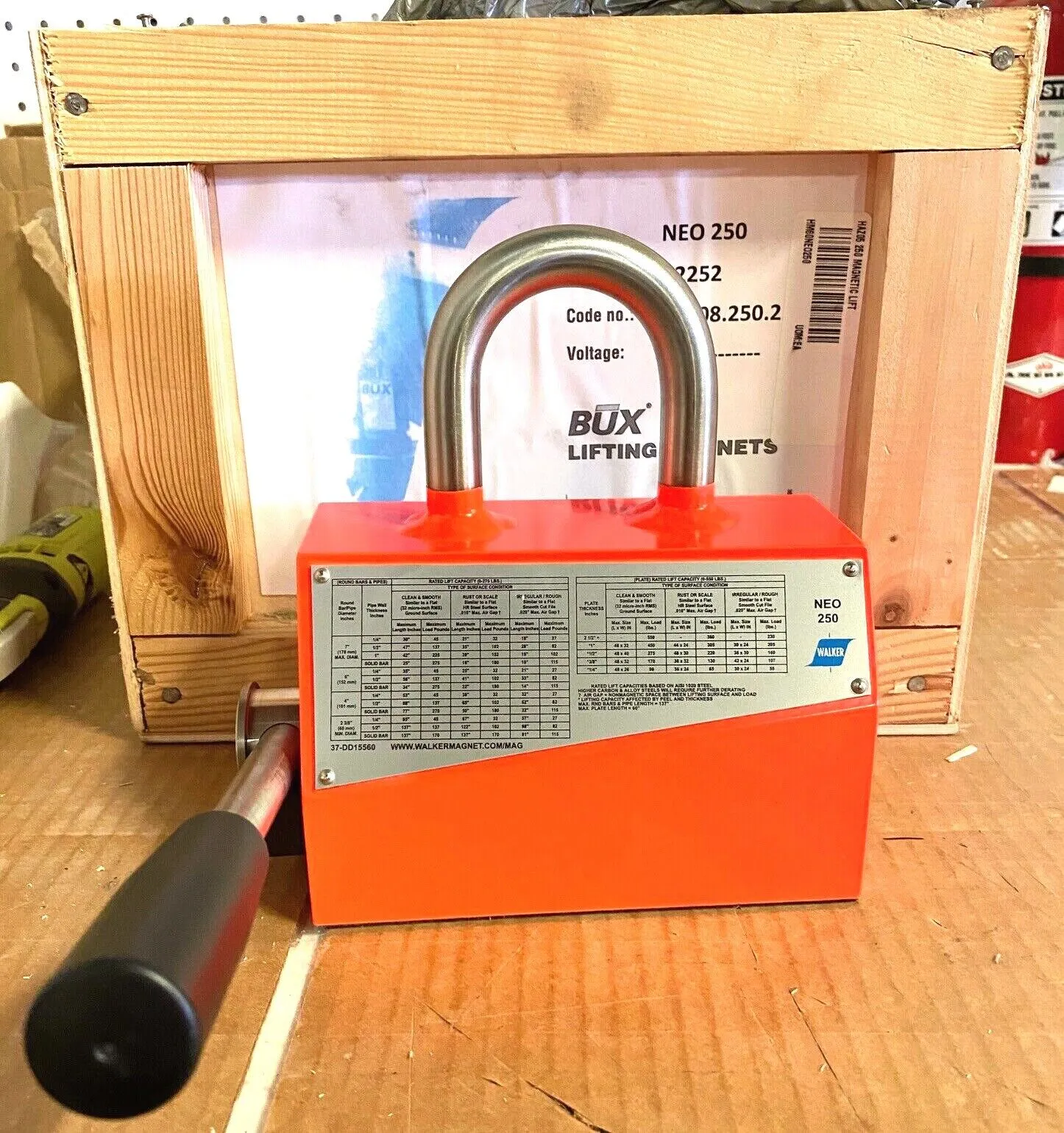

Walker Material Lifting Magnet 550 LBS Sheet 75 LBS Round NEO 250 Made In France
Overview
Description
WALKER
MATERIAL LIFTING MAGNET
•For Vertical Loading into Machining Centers and Lathes
•No product damage from rubbing and twisting of slings and grabs, or insertion and removal of lift hooks
•Improve plant safety by avoiding costly accidents caused when people are on the floor rigging and slinging
•Economical - you don t have the continual cost of repairing and replacing slings, chains and clamps
•Model NEO-250 for loads with a thickness of 1/4″ or greater and diameters between 2–3/8″ and 7″
•Model NEO–500 for loads with a thickness of 1/4″ or greater and diameters between 2–3/4″ and 10″
•For loading of flat, ferrous metal workpieces onto any machining center with horizontal spindle type lathes
•Also used to load machining centers, boring machines and other chip-making operation
Type: Material Lifting Magnet
Magnet Height: 4.53″
Load Capacity: 550 lbs Sheet / 75 lbs Round
Weight: 31
