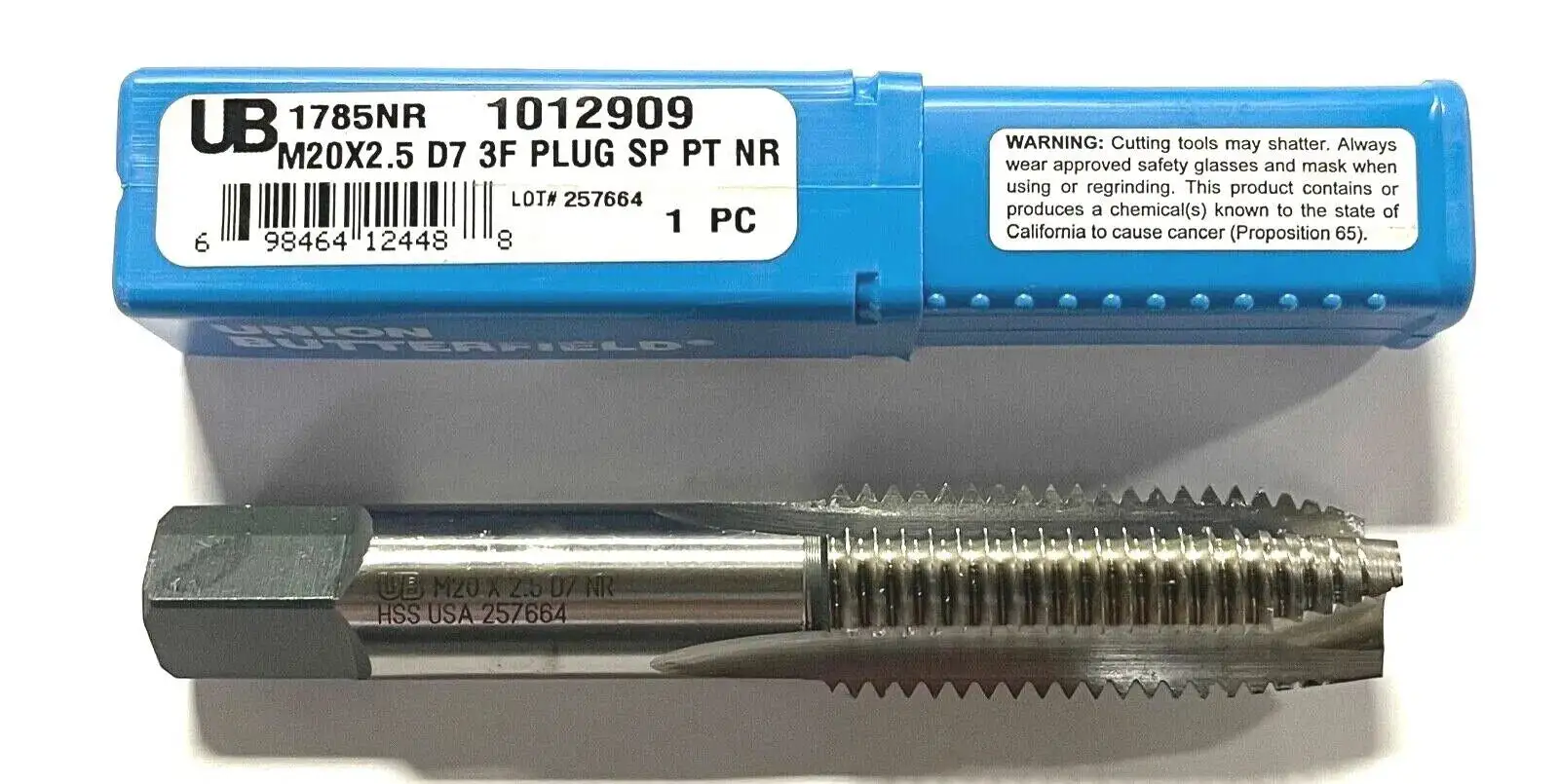

Union Butterfield M20 x 2.5mm Tap HSS Spiral Point Plug Tap D7 3 Flute NR USA

UNION BUTTERFIELD

USA MADE

SPIRAL POINT TAP NON RELIEVED STYLE

Thread Standard: Metric
Standard: ANSI
Thread Size: M20 × 2.5
Connection Diameter Machine Side (DCONMS): 0.489″
Thread Diameter Size (TDZ): M20
Thread Cutting Part Length (THL): 2″
Thread Pitch (TP): 2.5 mm
End Shape: Spiral Point
Thread Tolerance Class (TCTR): 6H|D7
Cutting Direction (HAND): Right Hand
Overall Length (OAL): 4-15/32″
Coolant Supply Property (CSP): External
Coating: Bright
Length Group: 2.5xD
Flute Count (NOF): 3
Square Size: 11/16″
Cutting Edge Material: HSS
Measurement Type: Metric
