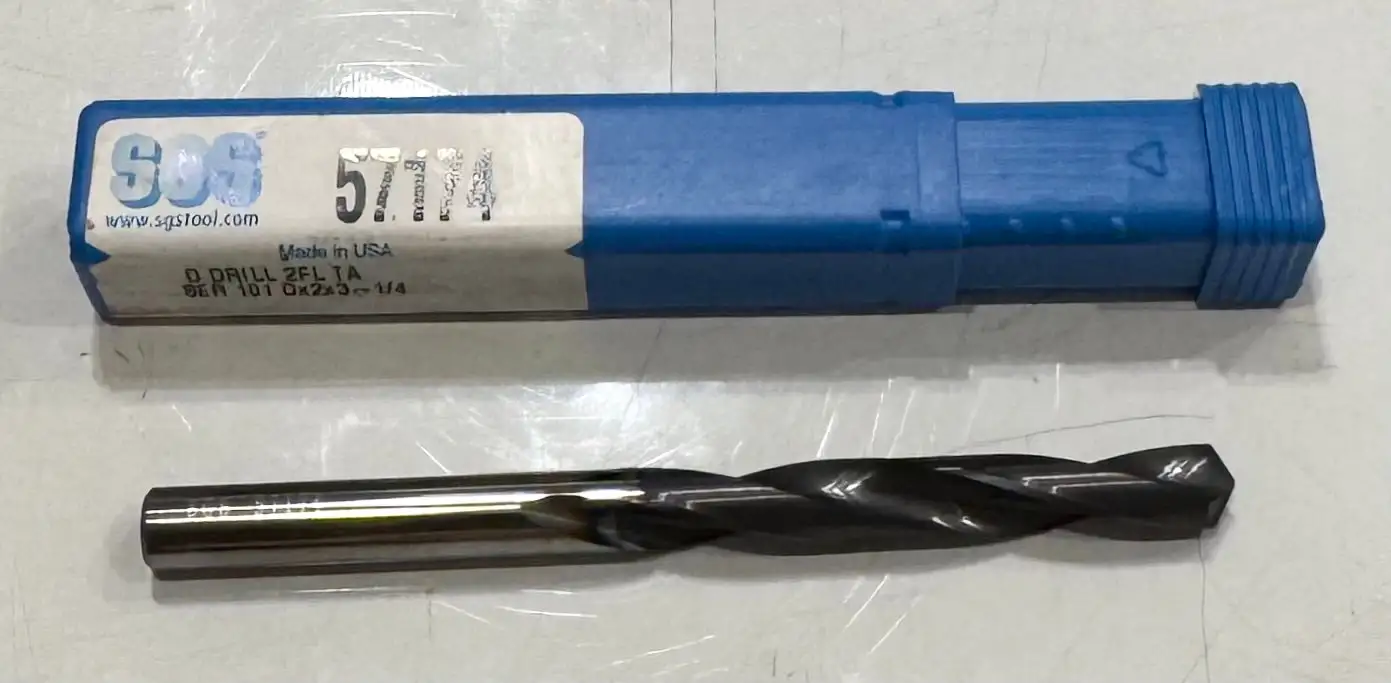

SGS Letter D Solid Carbide Drill, 5xD, TiAlN Coated 2 Flute 118 Deg USA Made

Description: SC Drill; D Dia. x 0.246" Shank Dia. x 3-1/4" OAL x 2" LCF ; 118 Degrees ; 5xD ; Spiral Flute ; AlTiN ; Series 101
Brand: Kyocera SGS Precision Tools
Coating: TA
Connection Diameter Machine Side Dconms: 0.246"
Coolant Supply Property CSP: External
Cutting Direction Hand: Right-Hand
Cutting Edge Material: Carbide
Decimal Equivalent: 0.246"
Drill Bit Size Cutting Diameter DC: D
Flute Count Nof: 2
Flute Helix Angle Fha: 20 Degrees
Flute Type: Spiral
Length Chip Flute LCF: 2"
Length Group: 5xD
Measurement Type: Letter
Overall Length Oal: 3-1/4"
Point Angle Sig: 118 Degrees
Serieslist: 101
Shank Type: Round
Tool Type: Drill
Usable Length Lu: 1.6094"
