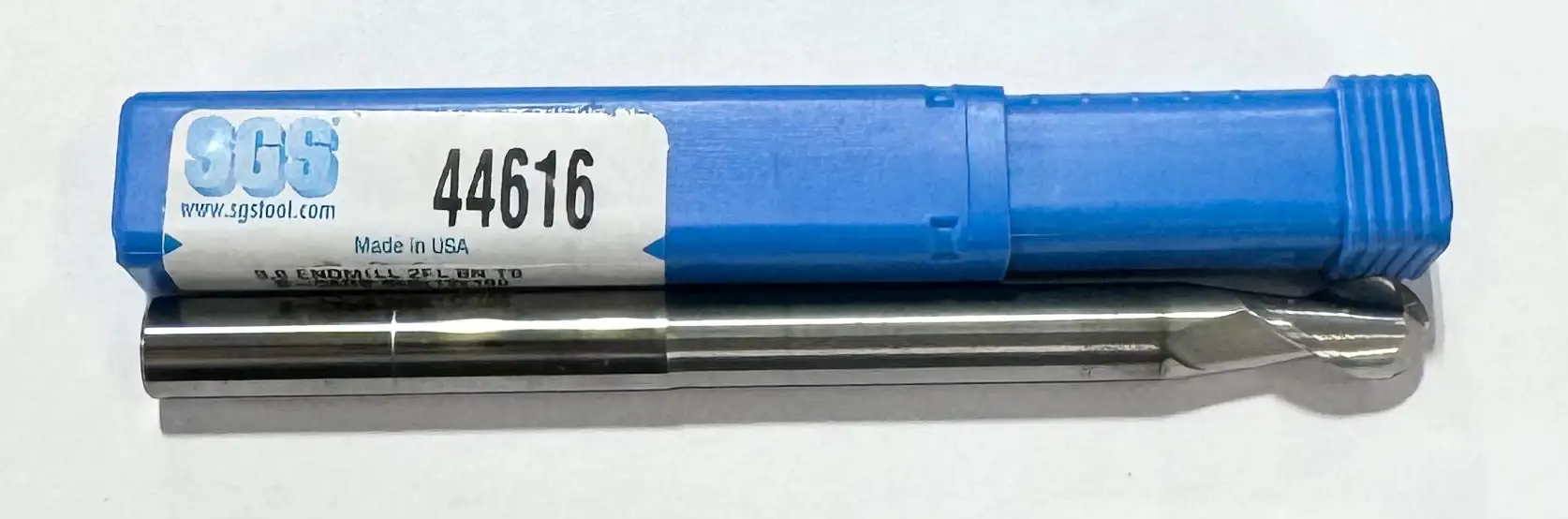

SGS 8mm Carbide Ball Nose End Mill 2 Flute Reduced Neck 4mm Radius TB Coated

Series Description: S-Carb
High Performance: Yes
End Configuration: Ball Nose
Unit (inch/mm): mm
Number of Flutes: 2
Primary Workpiece Material: (N) Non-Ferrous Materials
Secondary Workpiece Material: Plastics & Composites
Cutting Diameter (DC) (Decimal Inch): 0.3150
Cutting Diameter (DC) (mm): 8.00
Shank Diameter (DCON) (Decimal Inch): 0.3150
Shank Diameter (DCON) (mm): 8.00
Length of Cut (APMX) (Decimal Inch): 0.4724
Length of Cut (APMX) (mm): 12.00
Reach (LU) (Decimal Inch): 2.1260
Reach (LU) (mm): 54.00
Overall Length (LF) (Decimal Inch): 3.9370
Overall Length (LF) (mm): 100.00
Neck Diameter (DN) (Decimal Inch): 0.3000
Neck Diameter (DN) (mm): 7.62
Corner Radius (RE) (Decimal Inch): 0.1575
Corner Radius (RE) (mm): 4.00
Shank Length (LS) (Decimal Inch): 3.4646
Cutting Diameter (DC) Tolerance (Decimal Inch): +0.0000/-0.00035
Cutting Diameter (DC) Tolerance (mm): +0.000/-0.009
Shank Diameter (DCON) Tolerance (ISO): h6
Corner Radius (RE) Tolerance (Decimal Inch): +0.0005/-0.0005
Corner Radius (RE) Tolerance (mm): +0.013/-0.013
Shank Type: Straight
Coolant Option: External Coolant
Additional Geometry: Right Hand Cut Direction (RHC)
Rake Angle: Positive
Helix Angle: Right Spiral
Helix Angle (Degree): 35
Variable Helix: No
Center Cutting: Yes
Chip Breaker: No
Shipping Weight: 0.1530
Series: 47MQ
Weldon Flat: No
US Stock: 0
Shank Length (LS) (mm): 88.00
Tool Length: Stub
Coating Description: TIB2 (Ti-NAMITE-B)
