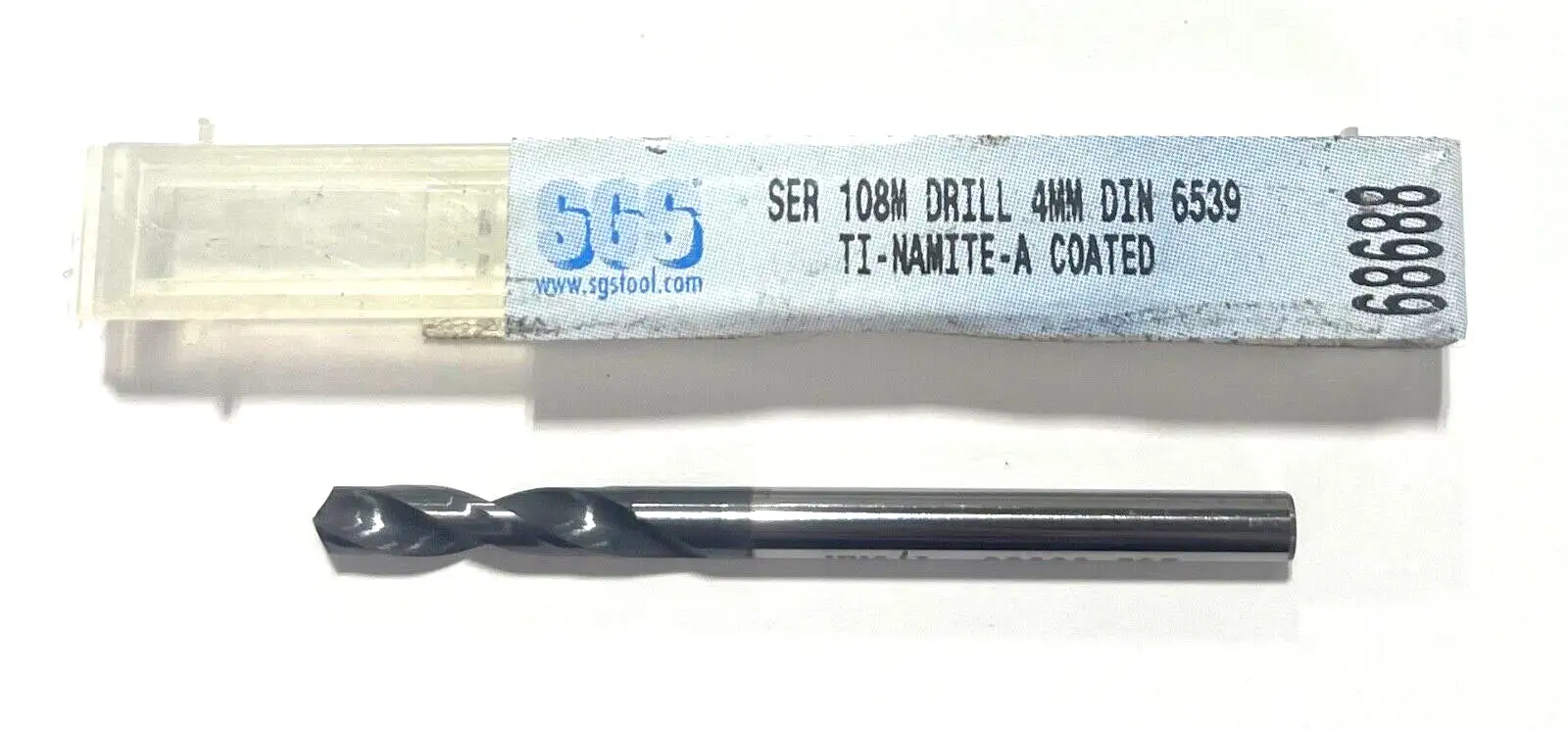

SGS 4mm Solid Carbide Drill AlTiN Coating 2 Flute 145° Point USA Made 68688

Series Description: General Application Drill
High Performance: No
Unit (inch/mm): mm
Number of Flutes: 2
Primary Workpiece Material: (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material: (H) Hardened Materials
Reach (xD): 3xD
Size: 4.00mm
Cutting Diameter (DC) (Decimal Inch): 0.1575
Cutting Diameter (DC) (mm): 4.00
Shank Diameter (DCON) (Decimal Inch): 0.1575
Shank Diameter (DCON) (mm): 4.00
Usable Length (LU) (Decimal Inch): 0.6693
Usable Length (LU) (mm): 17.00
Flute Length (LCF) (Decimal Inch): 0.8661
Flute Length (LCF) (mm): 22.00
Overall Length (OAL) (Decimal Inch): 2.1654
Overall Length (OAL) (mm): 55.00
Shank Length (LS) (Decimal Inch): 1.3640
Point Angle (Degree): 145
Cutting Diameter (DC) Tolerance (Decimal Inch): +.00000 / -.00047
Cutting Diameter (DC) Tolerance (mm): +.0000 / -.0119
Shank Diameter (DCON) Tolerance (ISO): h6
Shank Type: Straight
Coolant Option: External Coolant
Coating Description: Ti-NAMITE-A (AlTiN)
Additional Geometry: Right Hand Cut Direction (RHC)
Helix Angle: Right Spiral
Helix Angle (Degree): 27
Variable Helix: No
Center Cutting: No
Chip Breaker: No
DIN Standard: DIN 6539
Number of Margins: 2
Shipping Weight: 0.0230
Series: 108
Weldon Flat: NoSGS

SOLID CARBIDE DRILL

USA MADE

Series Description
General Application Drill
High Performance
No
Unit (inch/mm)
mm
Number of Flutes
2
Primary Workpiece Material
(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material
(H) Hardened Materials
Reach (xD)
3xD
Size
4.00mm
Cutting Diameter (DC) (Decimal Inch)
0.1575
Cutting Diameter (DC) (mm)
4.00
Shank Diameter (DCON) (Decimal Inch)
0.1575
Shank Diameter (DCON) (mm)
4.00
Usable Length (LU) (Decimal Inch)
0.6693
Usable Length (LU) (mm)
17.00
Flute Length (LCF) (Decimal Inch)
0.8661
Flute Length (LCF) (mm)
22.00
Overall Length (OAL) (Decimal Inch)
2.1654
Overall Length (OAL) (mm)
55.00
Shank Length (LS) (Decimal Inch)
1.3640
Point Angle (Degree)
145
Cutting Diameter (DC) Tolerance (Decimal Inch)
+.00000 / -.00047
Cutting Diameter (DC) Tolerance (mm)
+.0000 / -.0119
Shank Diameter (DCON) Tolerance (ISO)
h6
Shank Type
Straight
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-A (AlTiN)
Additional Geometry
Right Hand Cut Direction (RHC)
Helix Angle
Right Spiral
Helix Angle (Degree)
27
Variable Helix
No
Center Cutting
No
Chip Breaker
No
DIN Standard
DIN 6539
Number of Margins
2
Shipping Weight
0.0230
Series
108
Weldon Flat
No
