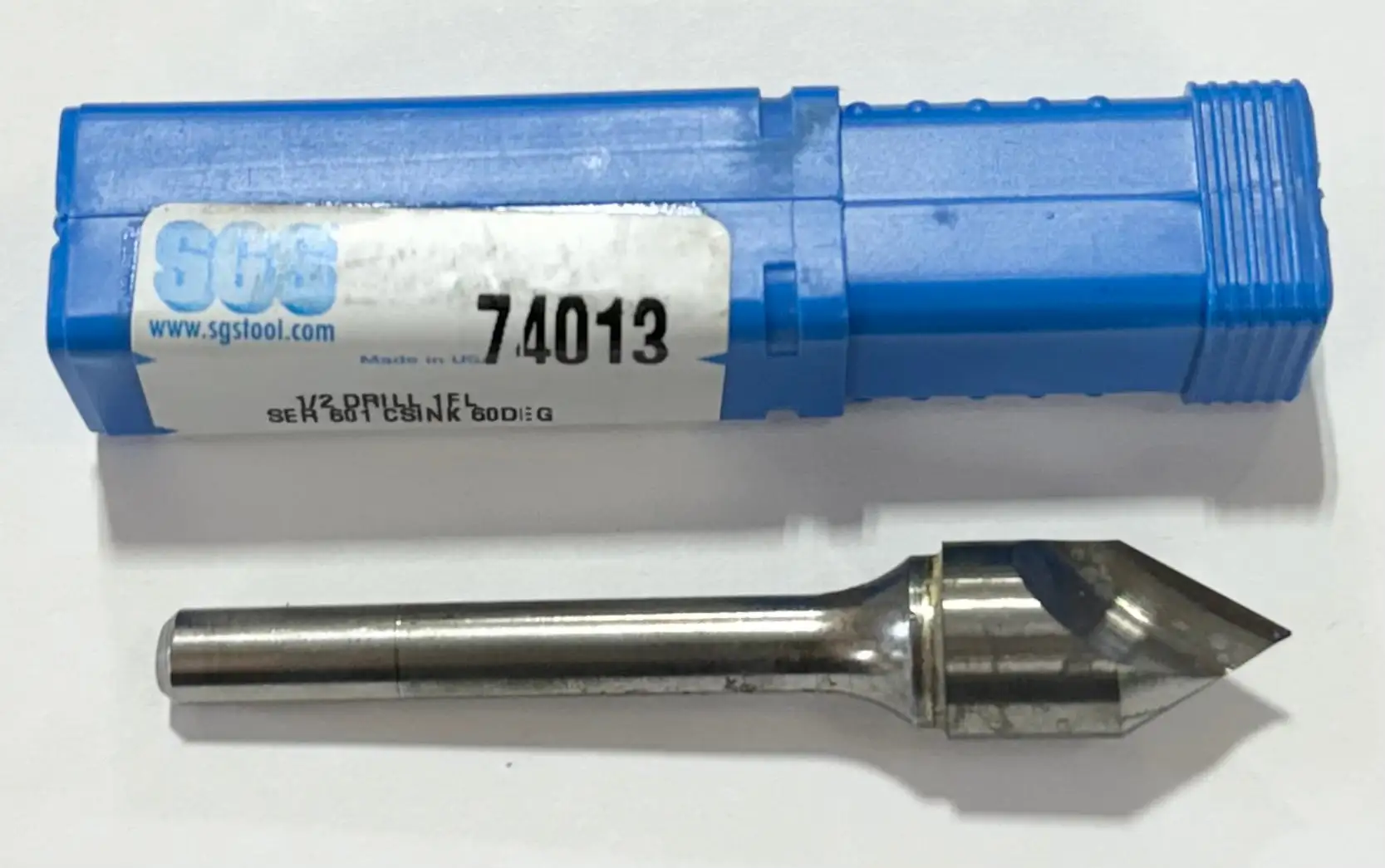

SGS 1/2" Singe Flute 60 Degree Solid Carbide Countersink USA Made 74013

Series Description: General Application Countersink
High Performance: No
Unit (inch/mm): inch
Number of Flutes: 1
Primary Workpiece Material: (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material: (H) Hardened Materials
Size: 1/2"
Cutting Diameter (DC) (Decimal Inch): 0.5000
Cutting Diameter (DC) (Fractional Inch): 1/2
Cutting Diameter (DC) (mm): 12.70
Shank Diameter (DCON) (Decimal Inch): 0.2500
Shank Diameter (DCON) (mm): 6.35
Flute Length (LCF) (Decimal Inch): 0.3120
Flute Length (LCF) (mm): 7.92
Overall Length (OAL) (Decimal Inch): 2.8700
Overall Length (OAL) (mm): 72.90
Shank Length (LS) (Decimal Inch): 1.7500
Shank Length (LS) (Fractional Inch): 1-3/4
Point Angle (Degree): 60
Cutting Diameter (DC) Tolerance (Decimal Inch): +.00300 / -.00000
Cutting Diameter (DC) Tolerance (mm): +.0762 / -.0000
Shank Diameter (DCON) Tolerance (ISO): h6
Shank Type: Straight
Coolant Option: External Coolant
Additional Geometry: Right Hand Cut Direction (RHC)
Rake Angle: Neutral
Helix Angle: Right Spiral
Helix Angle (Degree): 0
Variable Helix: No
Center Cutting: No
Chip Breaker: No
Number of Margins: 1
Shipping Weight: 0.0880
Series: 601
Weldon Flat: No
US Stock: 24
Shank Length (LS) (mm): 44.45
Shank Diameter (DCON) (Fractional Inch): 1/4
Centerline (α) Angle (Degree): 30.0
Coating Description: Bright/Uncoated
