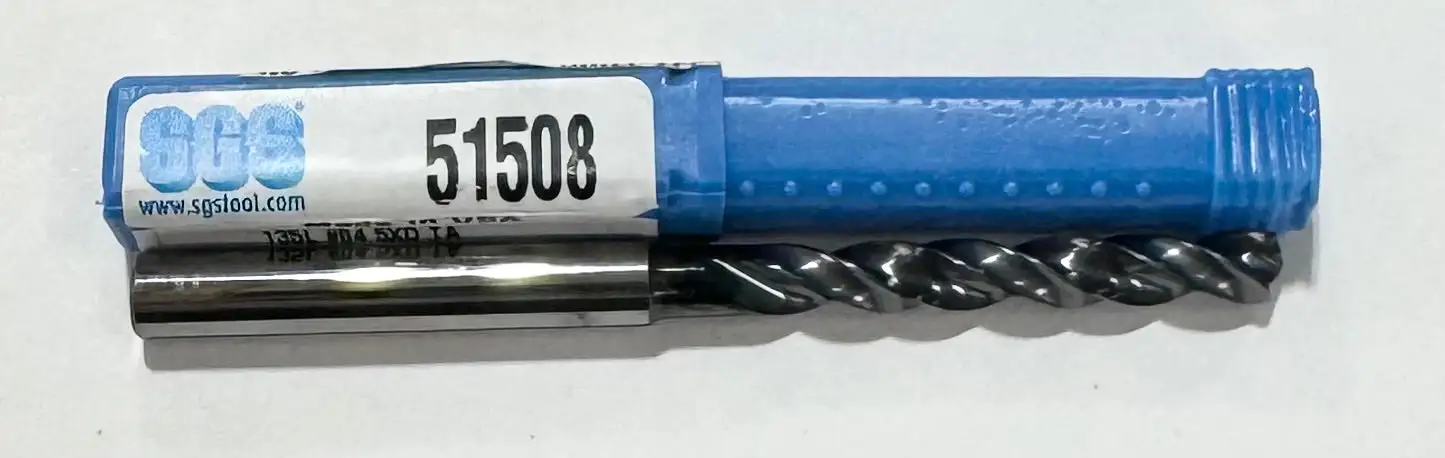

SGS #4 Solid Carbide Drill 5xD TA Coating 145 Degree Point USA Made

Series Description: Hi-PerCarb 135
High Performance: Yes
Unit (inch/mm): inch
Number of Flutes: 2
Primary Workpiece Material: (P) Steel|(M) Stainless Steel|(H) Hardened Materials
Secondary Workpiece Material: (K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Reach (xD): 5xD
Size: #4
Cutting Diameter (DC) (Decimal Inch): 0.2090
Cutting Diameter (DC) (mm): 5.31
Cutting Diameter (DC) (Wire): #4
Shank Diameter (DCON) (Decimal Inch): 0.2500
Shank Diameter (DCON) (mm): 6.35
Usable Length (LU) (Fractional Inch): 1-37/64
Flute Length (LCF) (Decimal Inch): 1.7500
Flute Length (LCF) (Fractional Inch): 1-3/4
Flute Length (LCF) (mm): 44.45
Overall Length (OAL) (Decimal Inch): 3.2500
Overall Length (OAL) (Fractional Inch): 3-1/4
Overall Length (OAL) (mm): 82.55
Shank Length (LS) (Decimal Inch): 1.4375
Shank Length (LS) (Fractional Inch): 1-7/16
Point Angle (Degree): 145
Cutting Diameter (DC) Tolerance (Decimal Inch): +.00016 / +.00063
Cutting Diameter (DC) Tolerance (mm): +.0041 / +.0160
Shank Diameter (DCON) Tolerance (ISO): h6
Shank Type: Straight
Coolant Option: External Coolant
Additional Geometry: Right Hand Cut Direction (RHC)
Helix Angle: Right Spiral
Helix Angle (Degree): 32
Variable Helix: No
Center Cutting: No
Chip Breaker: No
Number of Margins: 4
