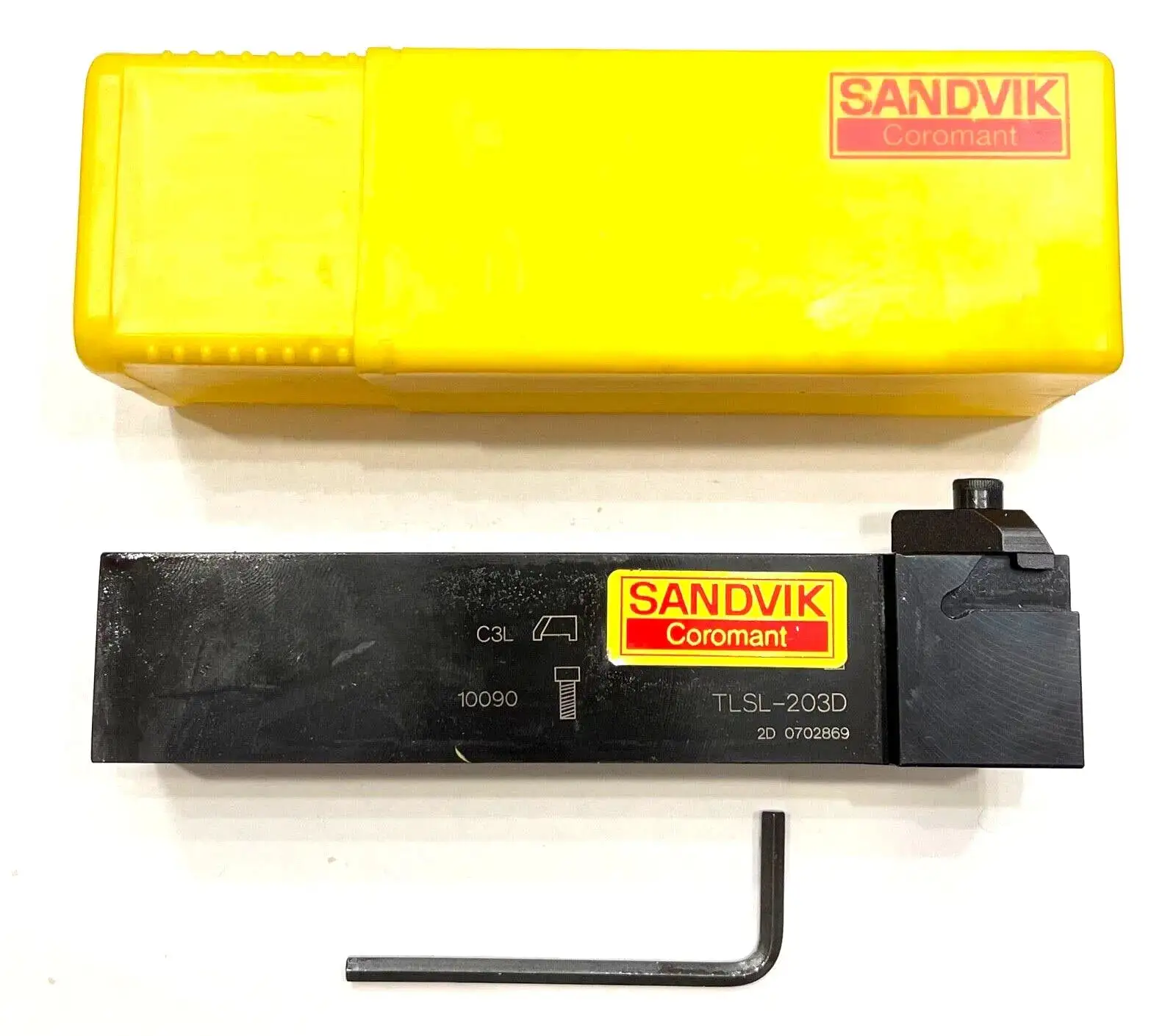

Sandvik TLSL-203D TOP-LOK TOOLHOLDER for Parting Grooving 5753254

SANDVIK

Cutting depth maximum(CDX)
0.18 inch
Clamping type code(MTP)
C
Part 2 of cutting item interface identifiers(CUTINT_MASTER)
Top-Lok -style 3L (TLG3L)
Insert seat size code(SSC)
3
Adaptive interface machine direction(ADINTMS)
Rectangular shank -inch: 1 1/4 x 1 1/4
Workpiece side body angle(BAWS)
0 deg
Maximum overhang(OHX)
1.3 inch
Hand(HAND)
L
Coolant entry style code(CNSC)
0: without coolant
Coolant exit style code(CXSC)
0: no coolant exit
Shank width(B)
1.25 inch
Shank height(H)
1.25 inch
Functional length(LF)
6 inch
Functional width(WF)
1.5 inch
Functional height(HF)
0 inch
Torque(TQ)
3.6878 ft lbf
Weight of item(WT)
2.5574 lb
