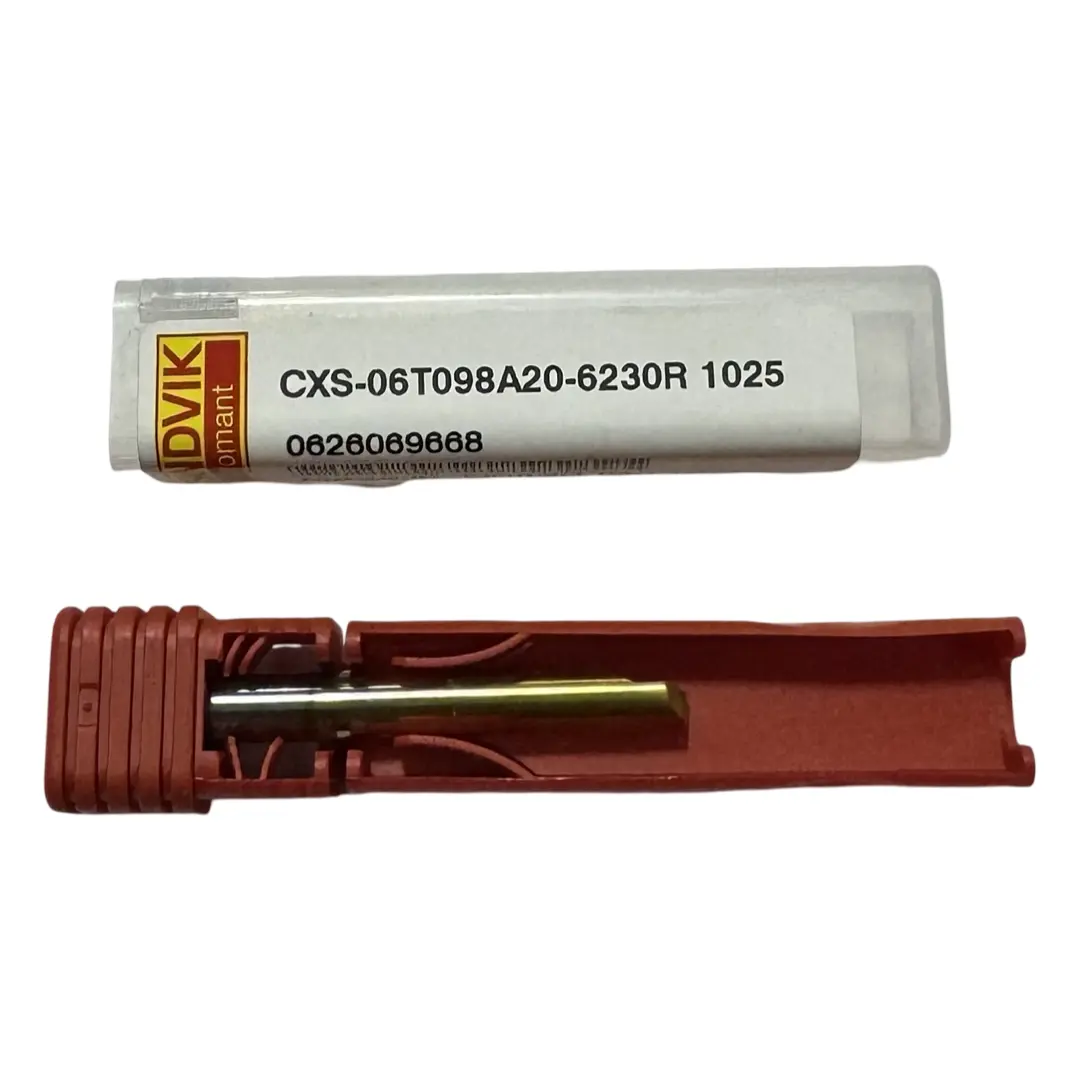

Sandvik CoroTurn XS Solid Carbide Tool for Turning CXS-06T098A20-6230R 1025

Tool cutting edge angle (KAPR)
98 deg

Lead angle(PSIR)
-8 deg

Corner radius (RE)
0.2 mm

Depth of cut maximum (APMX)
0.5 mm

Connection - machine side(ADINTMS)
CoroTurn XS -metric: 6

Maximum ramping angle (RMPX)
0 deg

Minimum bore diameter(DMIN1)
6.2 mm

Maximum overhang (OHX)
33 mm

Usable length (LU)
30.5 mm

Hand (HAND)
R

Chip breaker(CBMD)
A

Grade (GRADE)
1025

Substrate(SUBSTRATE)
HC

Coating(COATING)
PVD TiAlN+TiN

Coolant entry style(CNSC)
0: without coolant

Coolant exit style(CXSC)
0: no coolant exit

Connection diameter(DCONMS)
6 mm

Functional length(LF)
52.25 mm

Functional width(WF)
2.95 mm

Functional height(HF)
0 mm

Body width(WB)
5.7 mm

Body material(BMC)
Carbide

Weight of item(WT)
0.025 kg
