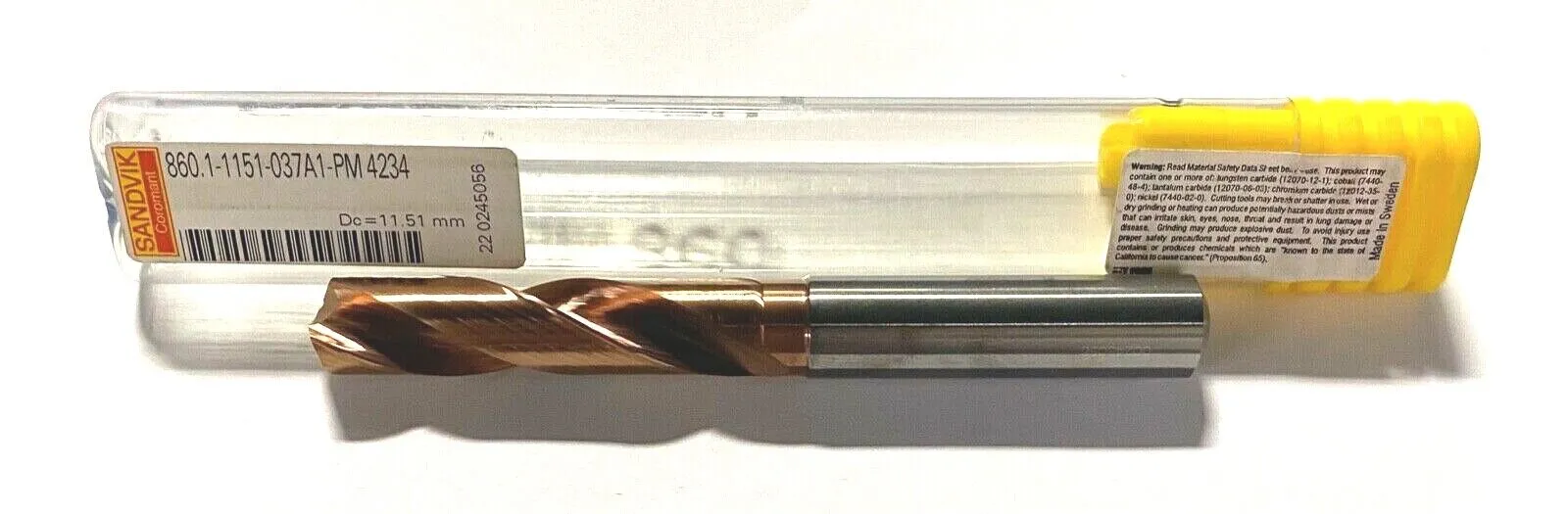

Sandvik 11.51mm Solid Carbide CoroDrill PVD TIALN Coated 102mm Overall Length

Sandvik 11.51mm Solid Carbide CoroDrill PVD TIALN Coated 102mm Overall Length

USD $33.99

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Other Cutting Tools
Manufacturer:
SANDVIK
Description

Cutting diameter (DC)11.51 mm
Achievable hole tolerance (TCHA)H8
Usable length (LU)36.4 mm
Usable length diameter ratio (ULDR)3.163
Adaptive interface machine direction (ADINTMS)Cylindrical shank (DIN6535-HA) -metric: 12
Connection diameter tolerance (TCDCON)h6
Grade (GRADE)4234
Substrate (SUBSTRATE)HC
Coating (COATING)PVD TIALN
Basic standard group (BSG)DIN 6537 K
Coolant entry style code (CNSC)4: axial concentric entry on circle
Coolant pressure (CP)20 bar
Connection diameter (DCON)12 mm
Point angle (SIG)147 deg
Point length (PL)1.9 mm
Overall length (OAL)102 mm
Functional length (LF)100.1 mm
Chip flute length (LCF)55 mm
Maximum regrinds (NORGMX)3
Rotational speed maximum (RPMX)6914 1/min
Weight of item (WT)0.136 kg
Sensor embedded property (SEP)0SANDVIK

SOLID CARBIDE CORO DRILL

Cutting diameter (DC)11.51 mm
Achievable hole tolerance (TCHA)H8
Usable length (LU)36.4 mm
Usable length diameter ratio (ULDR)3.163
Adaptive interface machine direction (ADINTMS)Cylindrical shank (DIN6535-HA) -metric: 12
Connection diameter tolerance (TCDCON)h6
Grade (GRADE)4234
Substrate (SUBSTRATE)HC
Coating (COATING)PVD TIALN
Basic standard group (BSG)DIN 6537 K
Coolant entry style code (CNSC)4: axial concentric entry on circle
Coolant pressure (CP)20 bar
Connection diameter (DCON)12 mm
Point angle (SIG)147 deg
Point length (PL)1.9 mm
Overall length (OAL)102 mm
Functional length (LF)100.1 mm
Chip flute length (LCF)55 mm
Maximum regrinds (NORGMX)3
Rotational speed maximum (RPMX)6914 1/min
Weight of item (WT)0.136 kg
Sensor embedded property (SEP)0
