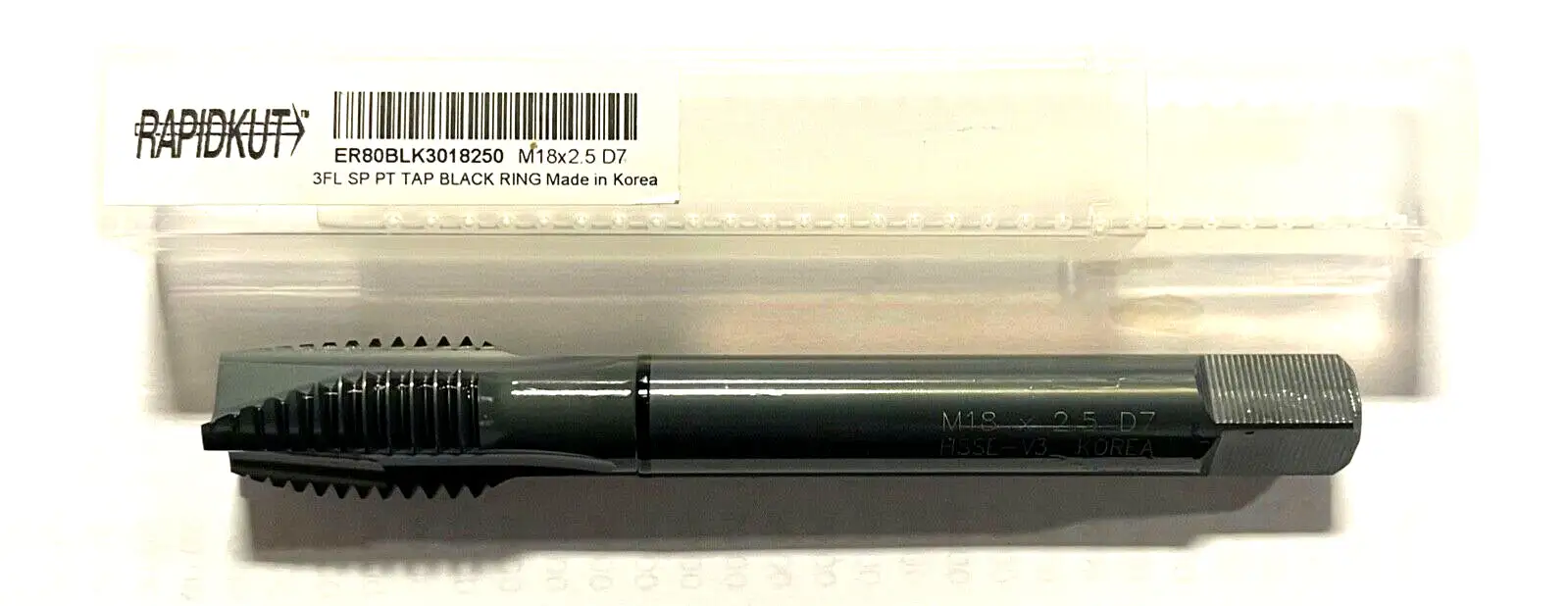

RapidKut M18 x 2.5 HSSE Spiral Point Plug Tap High Performance Black Ring D7 3FL

RAPIDKUT

HSSE-V SPIRAL POINT HIGH PERFORMANCE TAP

Thread Standard: Metric
Flute Count (NOF): 3
Thread Size: M18 × 2.5
Cutting Edge Material: High Vanadium Steel
Thread Diameter Size (TDZ): M18
Special Feature: Black Ring
Thread Pitch (TP): 2.5 mm
Applicable Material: General Purpose
Thread Tolerance Class (TCTR): D7
Connection Diameter Machine Side (DCONMS): 0.542″
Usable Length (LU): 1.083″
Thread Cutting Part Length (THL): 1.083″
Overall Length (OAL): 3.94″
End Shape: Spiral Point
Chamfer: Plug
Coolant Supply Property (CSP): No
Coating: Steam Oxide
Measurement Type: Metric
