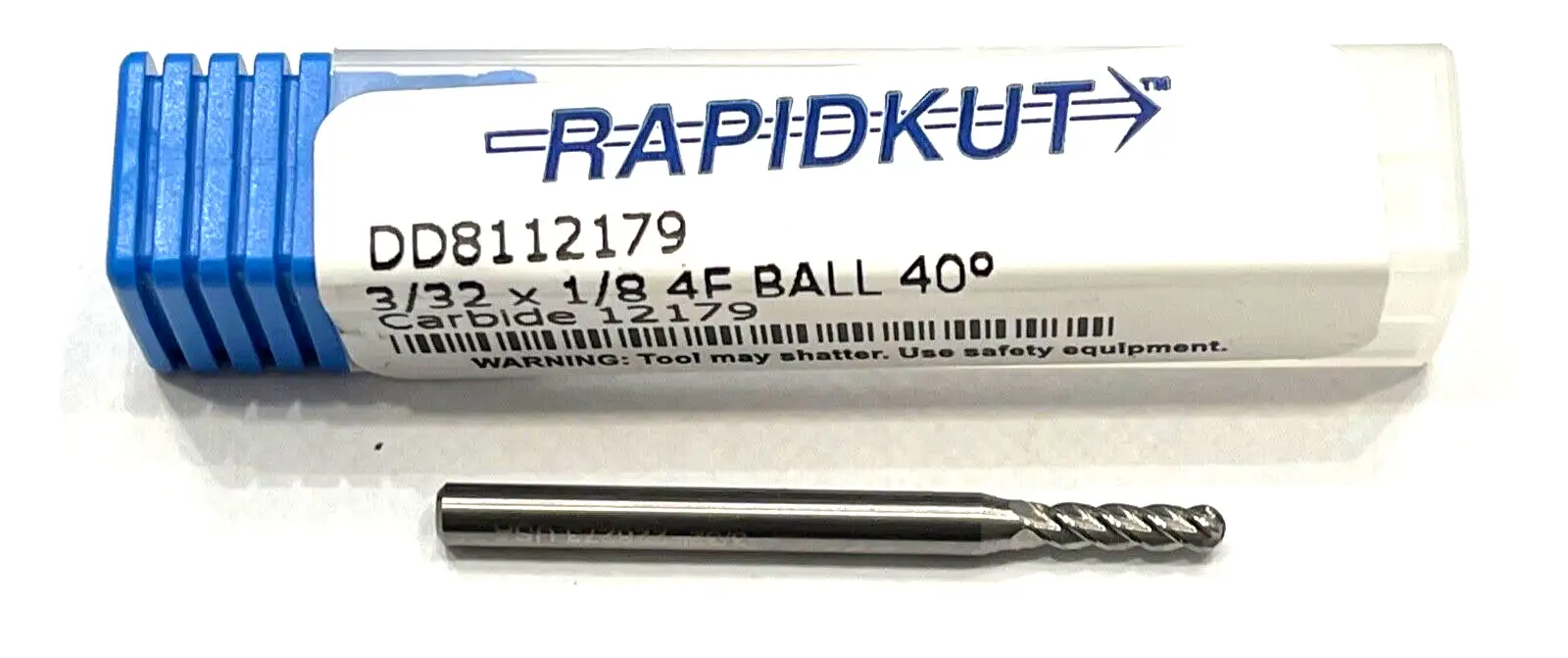

RapidKut 3/32" Carbide End Mill Ball Nosed 40° Helix 4 Flute USA Made

RAPIDKUT

USA MADE

SOLID CARBIDE BALL NOSED END MILL

Cutting Diameter (DC): 3/32″
Shank Type: Round
Connection Diameter Machine Side (DCONMS): 1/8″
Usable Length (LU): 3/8″
Depth of Cut Maximum (APMX): 3/8″
Corner Radius (RE): 0.046″
Overall Length (OAL): 1-1/2″
Tool Type: Single-End
Cutting Edge Material: Carbide
End Shape: Ball Nose
Coating: Uncoated
Coolant Supply Property (CSP): External
Flute Count (NOF): 4
Decimal Equivalent: 0.09375″
Flute Helix Angle (FHA): 40 Degrees
Measurement Type: Inch
