RAPIDKUT
USA MADE

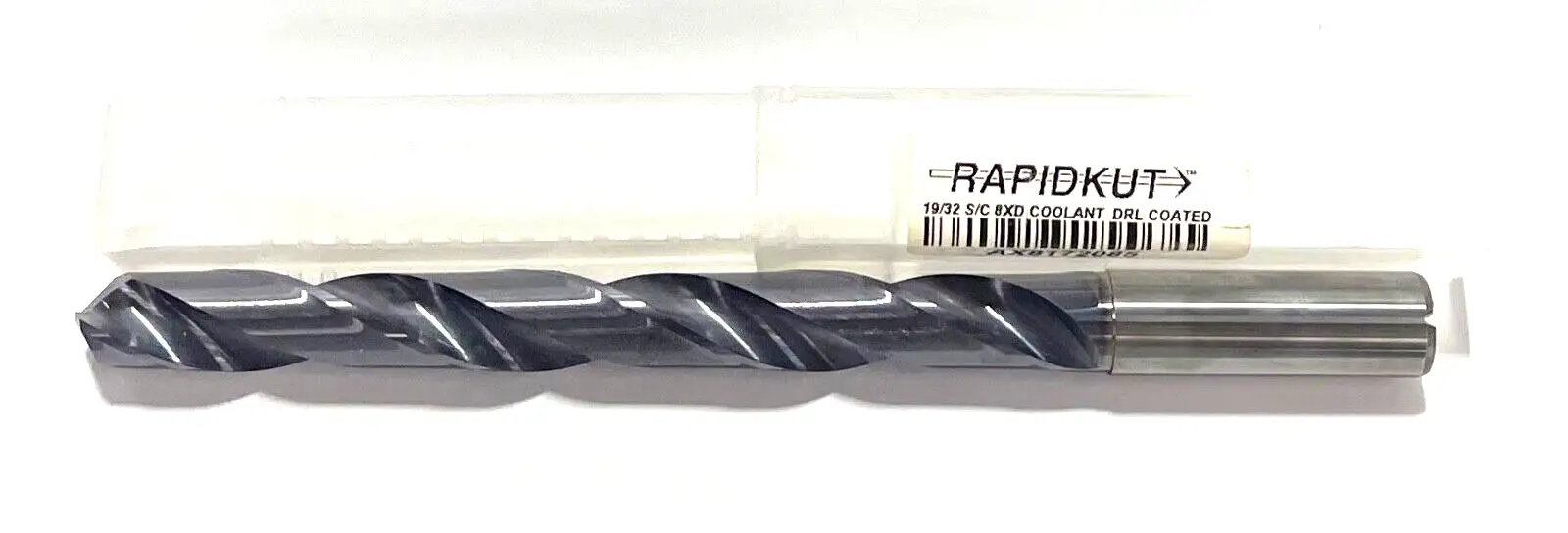

SOLID CARBIDE DRILL
Drill Bit Size / Cutting Diameter (DC): 19/32″
Shank Type: Round
Drill Bit Size / Cutting Diameter (DC) - Inch: 19/32″
Cutting Edge Material: Carbide
Decimal Equivalent: 0.5938″
Tool Type: Drill
Length Group: 8xD
Measurement Type: Inch
Coating: TiAlN
Usable Length (LU): 6″
Connection Diameter Machine Side (DCONMS): 5/8″
Length Chip Flute (LCF): 6″
Coolant Supply Property (CSP): Coolant Thru
Overall Length (OAL): 8″
Point Angle (SIG): 140 Degrees
Flute Count (NOF): 2
Flute Helix Angle (FHA): 30 Degrees
Cutting Direction (HAND): Right Hand
