RAPIDKUT
USA MADE

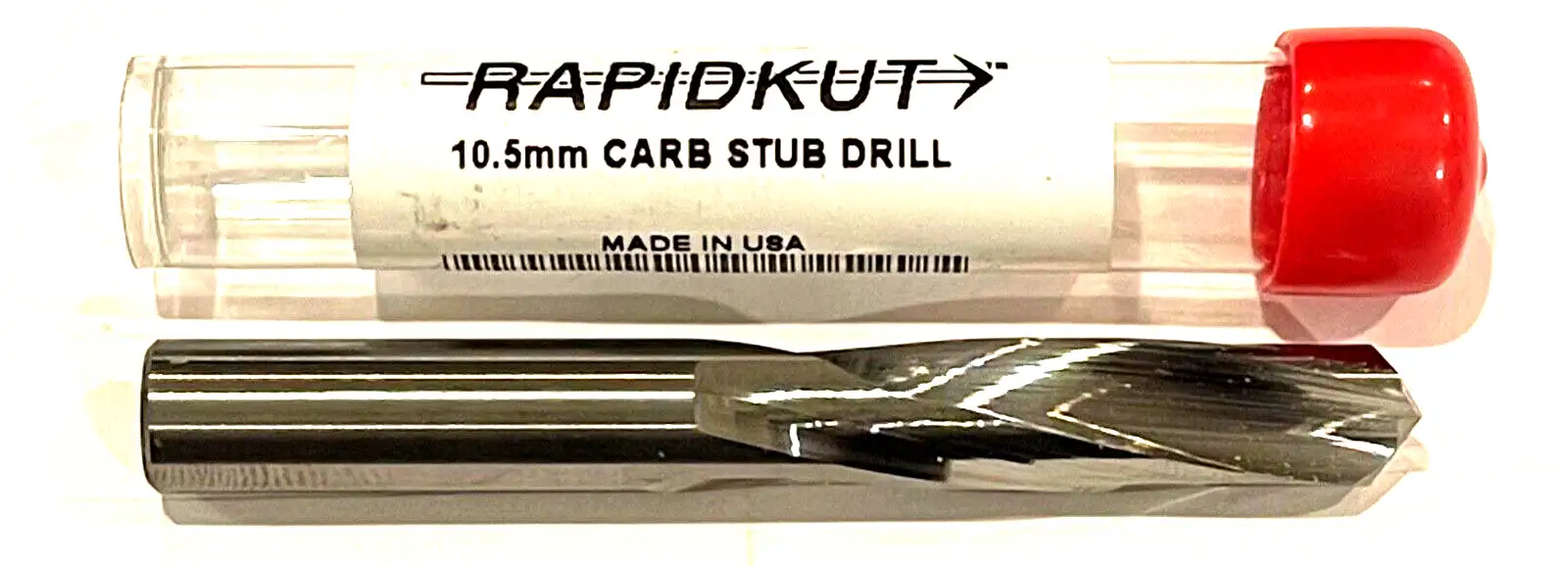

SOLID CARBIDE SCREW MACHINE LENGTH DRILL
Drill Bit Size / Cutting Diameter (DC): 10.5 mm
Cutting Edge Material: Carbide
Decimal Equivalent: 0.4134″
Tool Type: Drill
Drill Bit Size / Cutting Diameter (DC) - Metric: 10.5 mm
Point Shape: Split
Length Group: Screw Machine
Measurement Type: Metric
Coating: Uncoated
Usable Length (LU): 51 mm
Connection Diameter Machine Side (DCONMS): 10.5 mm
Length Chip Flute (LCF): 2″
Coolant Supply Property (CSP): External
Overall Length (OAL): 86 mm
Point Angle (SIG): 135 Degrees
Flute Count (NOF): 2
Flute Helix Angle (FHA): 15 Degrees
Cutting Direction (HAND): Right Hand
Shank Type: Round
:
