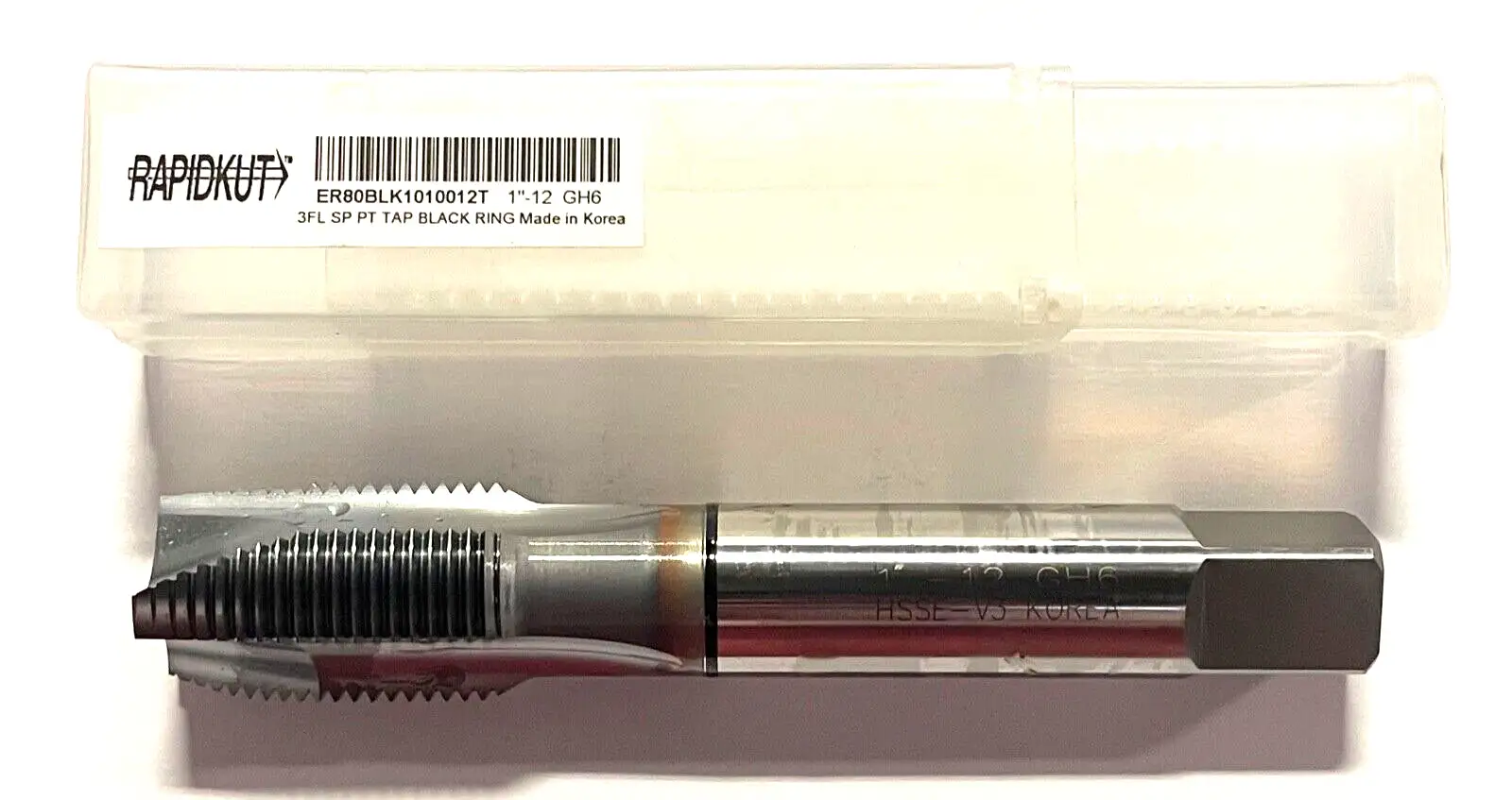

RapidKut 1"-12 HSSE-V3 Spiral Point Plug Tap TiCN Coated Black Ring 3FL GH6

RAPIDKUT

HSSE-V SPIRAL POINT HIGH PERFORMANCE PLUG TAP

Thread Standard: NF
Flute Count (NOF): 3
Thread Size: 1″ - 12
Cutting Edge Material: High Vanadium Steel
Thread Diameter Size (TDZ): 1″
Special Feature: Black Ring
Threads per Inch (TPI): 12
Applicable Material: General Purpose
Thread Tolerance Class (TCTR): H6
Connection Diameter Machine Side (DCONMS): 0.8″
Usable Length (LU): 1.496″
Thread Cutting Part Length (THL): 1.496″
Overall Length (OAL): 5.51″
End Shape: Spiral Point
Chamfer: Plug
Coolant Supply Property (CSP): No
Coating: TiCN
Measurement Type: Fractional
