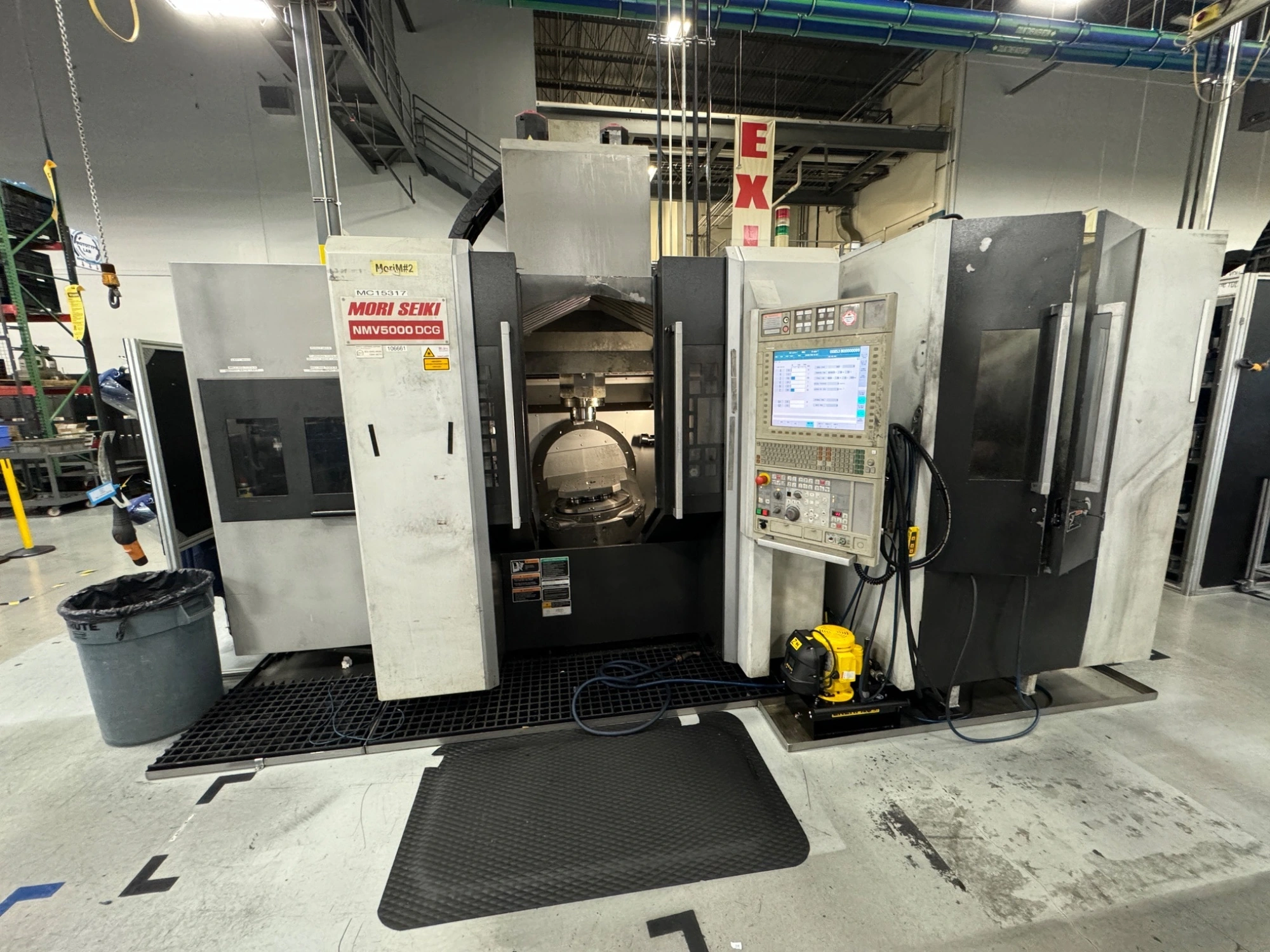

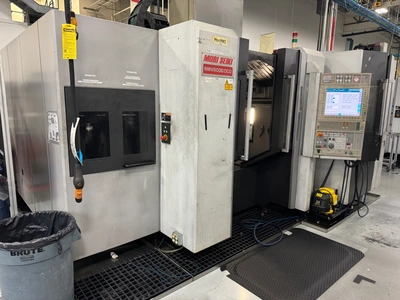

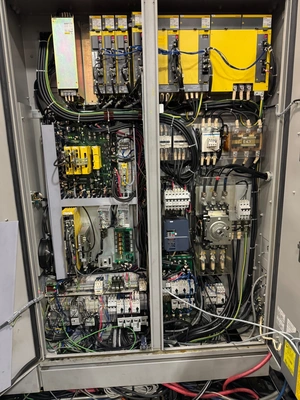

USED 2009 MORI SEIKI NMV5000 DCG

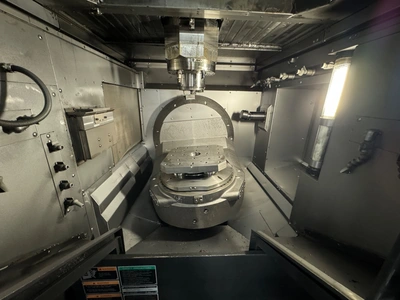

The NMV Series 5-axis control vertical machining center, equipped with DMG MORI’s original technologies: DDM (Direct Drive Motor), which achieves zero backlash and is produced in-house for maximum reliability, DCG (Driven at the Center of Gravity), which controls vibration and improves acceleration, and ORC (Octagonal Ram Construction), which offers high-speed, high-precision feed. It can complete all the machining in one clamping, except for the part being gripped, and achieves high-efficiency, high-quality machining of complex shaped workpieces. This state-of-the-art 5-axis control machine is equipped with all our cutting-edge technologies, to respond to the need for the increasingly complex workpieces.

Specifications:

X-Axis Travel: 28.7"
Y-Axis Travel: 20.1"
Z-Axis Travel: 20.1"
Distance From Table Surface to Spindle Gauge Plane: 130-640 mm
Table Height From The Floor To The Upper Face OF Table: 34.3"
Table (Pallet) Working Surface: 15.7" x 15.7"
Table (Pallet)
Loading Capacity: 660 Lbs.
Maximum Workpiece Swing Diameter: 27.5"
Maximum Workpiece Height: 17.7"
Maximum Spindle Speed: 12,000 RPM
C-Axis Speed: 1200 RPM
Type of Spindle Taper Hole: No. 40 (HSK-A63)
Rapid Traverse Rate (X,Y): 50,000 mm/min
Rapid Traverse Rate (Z): 40,000 mm/min
Maximum Tool Diameter W/Adjacent Tools: 3.5"
Maximum Tool Diameter W/Out Adjacent Tools: 4.9"
Spindle Drive Motor: 24.7/20 HP
Electrical Power Supply: 35.6 kVA
Coolant Tank Capacity: 198 Gallons
Machine Height (From Floor): 128.5"
Floor Space: (width x depth): 109.2" x 155.5"
Mass of Machine (Approx.): 27,280#

Fanuc Control

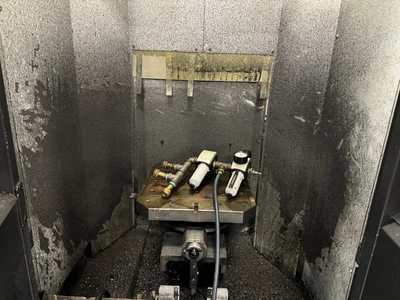

Pallet Changer
12,000 RPM Spindle
Blum Tool Break Detection

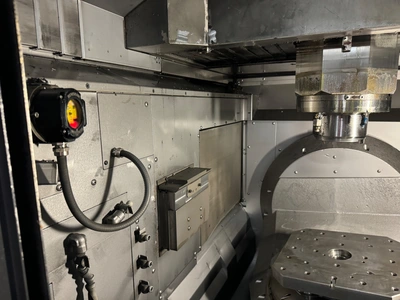

Renishaw OMI-2 Probing

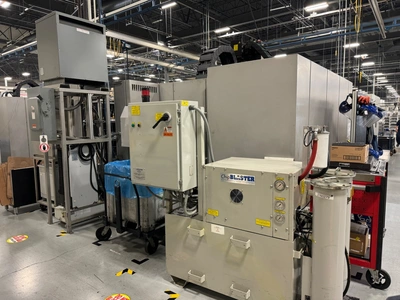

Chip Blaster High Pressure Coolant System
Chip Conveyor
Hydraulic Fixture Clamping
Transformer
