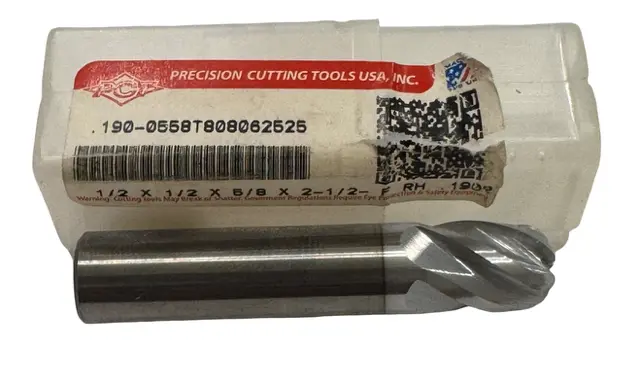

PCT 1/2" Carbide Ball End Mill 5 Flute AITiCrN Coated .190 Radius USA

Description: SQ End Mill; 1/2" Dia. x 5/8" LOC x 1/2" Shank Dia. x 2-1/2" OAL ; 5 FL ; Carbide ; AITiCrN ; Series 558
Body Material: Carbide
Brand: Precision Cutting Tools
Coating: Exxtral Silver
Connection Diameter Machine Side Dconms: 1/2"
Coolant Supply Property CSP: External
Corner Radius Re: 1/8"
Cutting Diameter DC: 1/2"
Cutting Edge Material: Carbide
Decimal Equivalent: 0.5"
Depth Of Cut Maximum Apmx: 5/8"
End Shape: Corner Radius
Flute Count Nof: 5
Flute Helix Angle Fha: 35 Degrees
Grade: H5008 Exxtral Silver
Measurement Type: Inch
Overall Length Oal: 2-1/2"
Shank Standard: h6
Shank Type: Cylindrical
Usable Length Lu: 5/8"
