PCT 1" Carbide Ball Nose End Mill 5 Flute Variable Pitch H5008 Exxtral Silver

PCT 1" Carbide Ball Nose End Mill 5 Flute Variable Pitch H5008 Exxtral Silver

USD $68.43

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Other Cutting Tools
Manufacturer:
PCT
Description

PCT

USA MADE

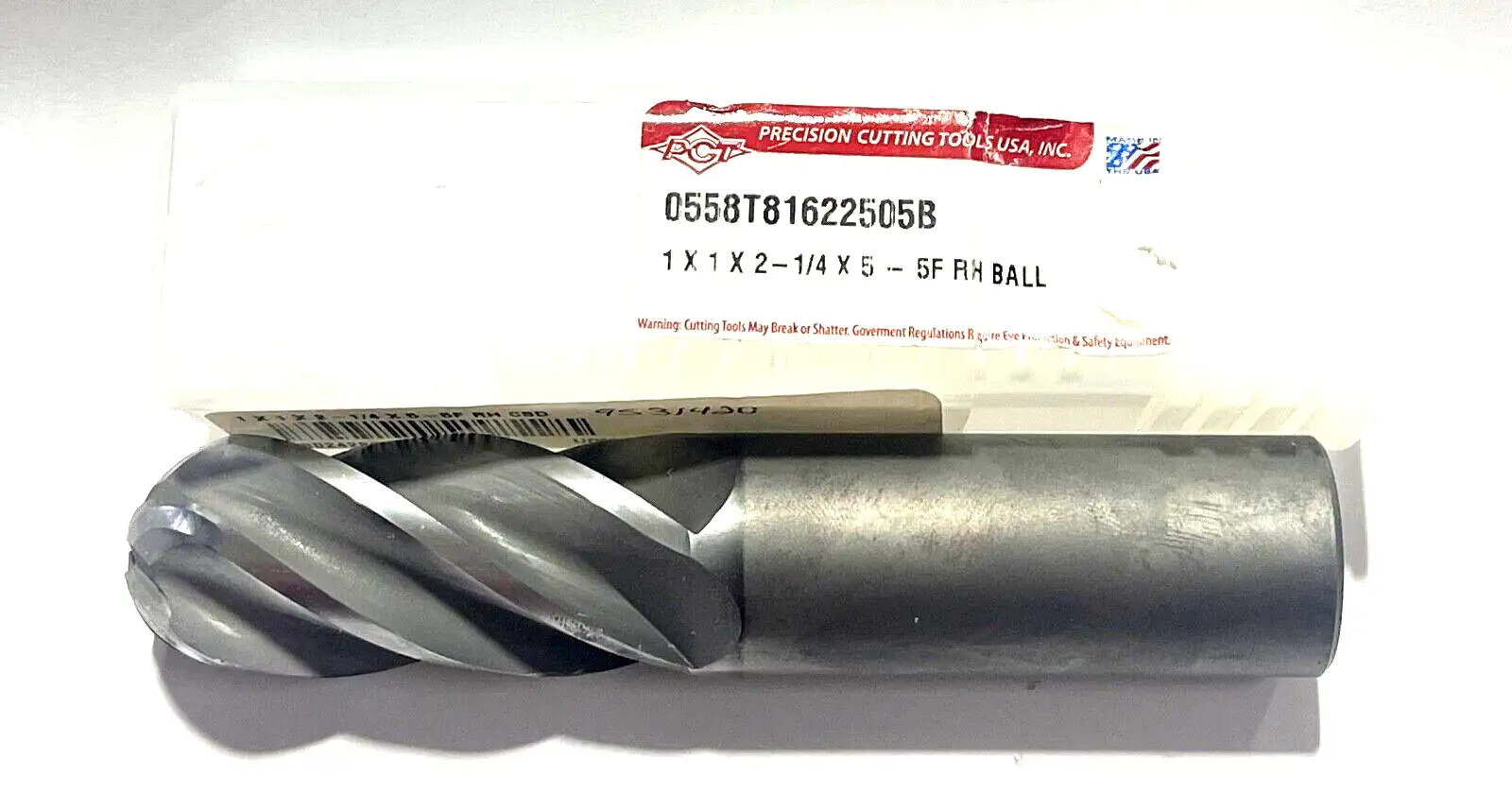

SOLID CARBIDE BALL NOSE END MILL

Cutting Diameter (DC): 1″
Grade: H5008 Exxtral Silver
Connection Diameter Machine Side (DCONMS): 1″
Tool Type: Solid Carbide Endmill
Depth of Cut Maximum (APMX): 2-1/4″
Length Group: Long
Overall Length (OAL): 5″
End Shape: Ballnose
Cutting Edge Material: Carbide
Coolant Supply Property (CSP): External
Coating: AITiCrN
Shank Standard: h6
Flute Count (NOF): 5
Body Material: Carbide
Flute Helix Angle (FHA): 35 Degrees
Decimal Equivalent: 1″
Shank Type: Round
Measurement Type: Inch
Usable Length (LU): 2-1/4″
Series/List #: 558
Applicable Material: | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium |
Maximum Feed per Tooth (fz(max)): 0.014 ″/tooth
Application: | Finish | HEM | Profiling | Semi Finish |
Minimum Feed per Tooth (fz(min)): 0.002 ″/tooth
Corner Radius (RE): 1/2″
Shank Size (SS): 1″
Number of Teeth: 5
