USED GLEASON 14
Overview

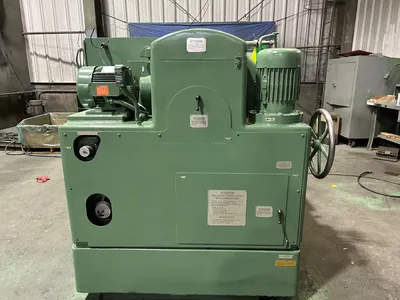

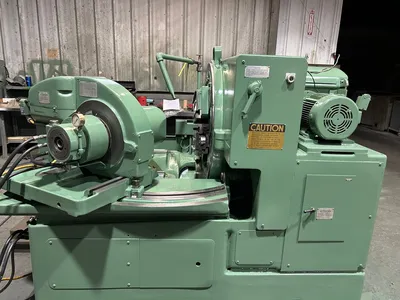

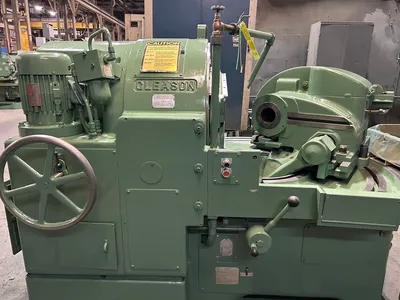

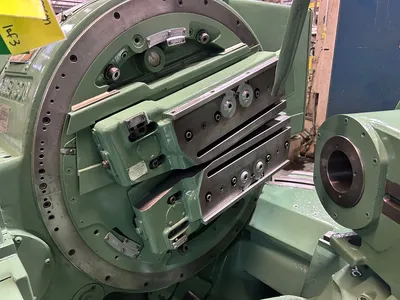

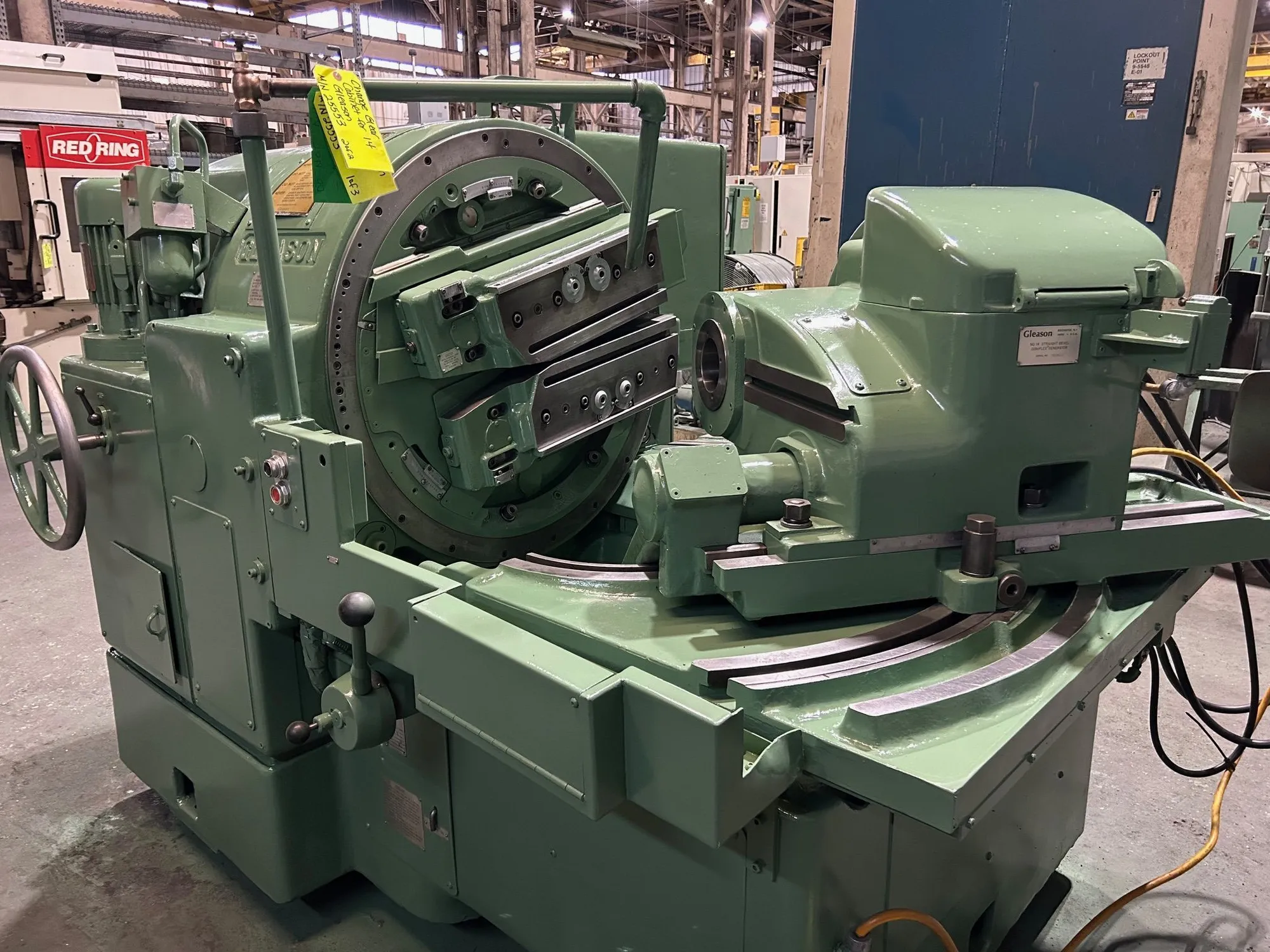

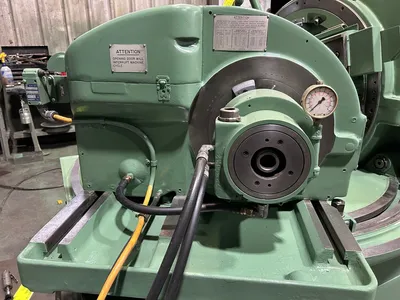

The No. 14 Straight Bevel Coniflex® Generator is an automatic machine for cutting straight bevel Coniflex gears. A wide range of work is covered - gears up to 24" in diameter at 10 to 1 ratio, 3½" face width and 3 diametral pitch. This generator is a two tool machine employing side-cutting tools, which operate alternately on opposite sides of the gear tooth being cut.
The No. 14 Straight Bevel Coniflex Generator offers many advantages: improved quality of product, increased production, ease of setup and operation, and simplified calculations and development.
Specs
Specifications:
Gear Diameter: up to 24"
Cone Distance (Maximum): 12"
Cone Distance (Minimum): 0
Extreme Ratio: 10:1
Diametral Pitch (coarsest): 3 DP
Index Range: 5 to 100 inclusive and most numbers up to 200
Diameter of Taper Hole at Large End: 3 29/32"
Taper per Foot: 39/64"
Depth of Taper: 6"
Diameter of Hole Through: 3 1/16"
Spindle Nose to Machine Center: 2 1/2" x 15"

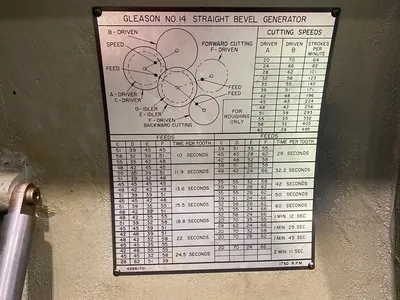

Cutter Speeds (Strokes per Minute): 64 to 495
Feeds (Seconds per Tooth): 10 to 131
Main Motor: 3 H.P., 1800 RPM
Floor Space: 76"x56"
Net Weight: 14,800 lbs.
Equipped With

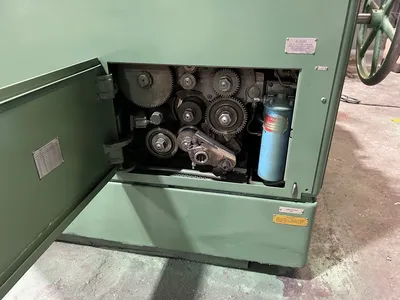

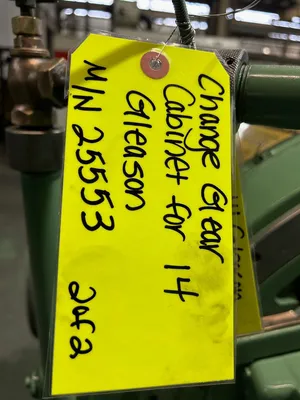

Cabinet of Change Gears
Setting Gages
Rough & Finish Feed Cam
Coniflex
