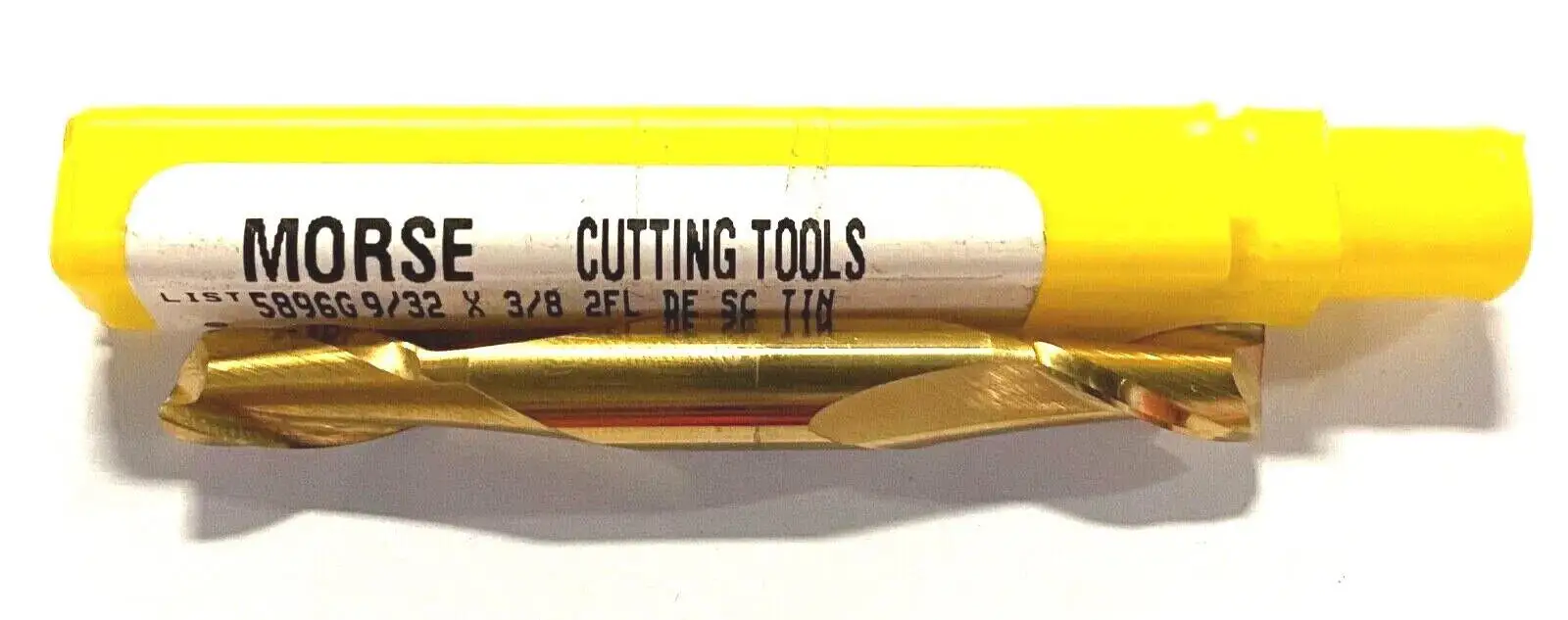

Morse 9/32" x 3/8" Carbide Double End Mill Tin Coated 2 Flute USA Made 90355

MORSE CUTTING TOOLS

USA MADE

SOLID CARBIDE END MILL

Cutting Diameter (DC): 9/32″
Usable Length (LU): 11/16″
Connection Diameter Machine Side (DCONMS): 3/8″
Corner Radius (RE): None
Depth of Cut Maximum (APMX): 11/16″
Tool Type: Double-End
Overall Length (OAL): 3-3/8″
Length Group: Regular
Cutting Edge Material: Carbide
Coolant Supply Property (CSP): External Coolant
Coating: TiN
Style: Finishing
Flute Count (NOF): 2
Decimal Equivalent: 0.28125″
Shank Type: Round
Measurement Type: Inch
End Shape: Square
Series/List #: 5896G
