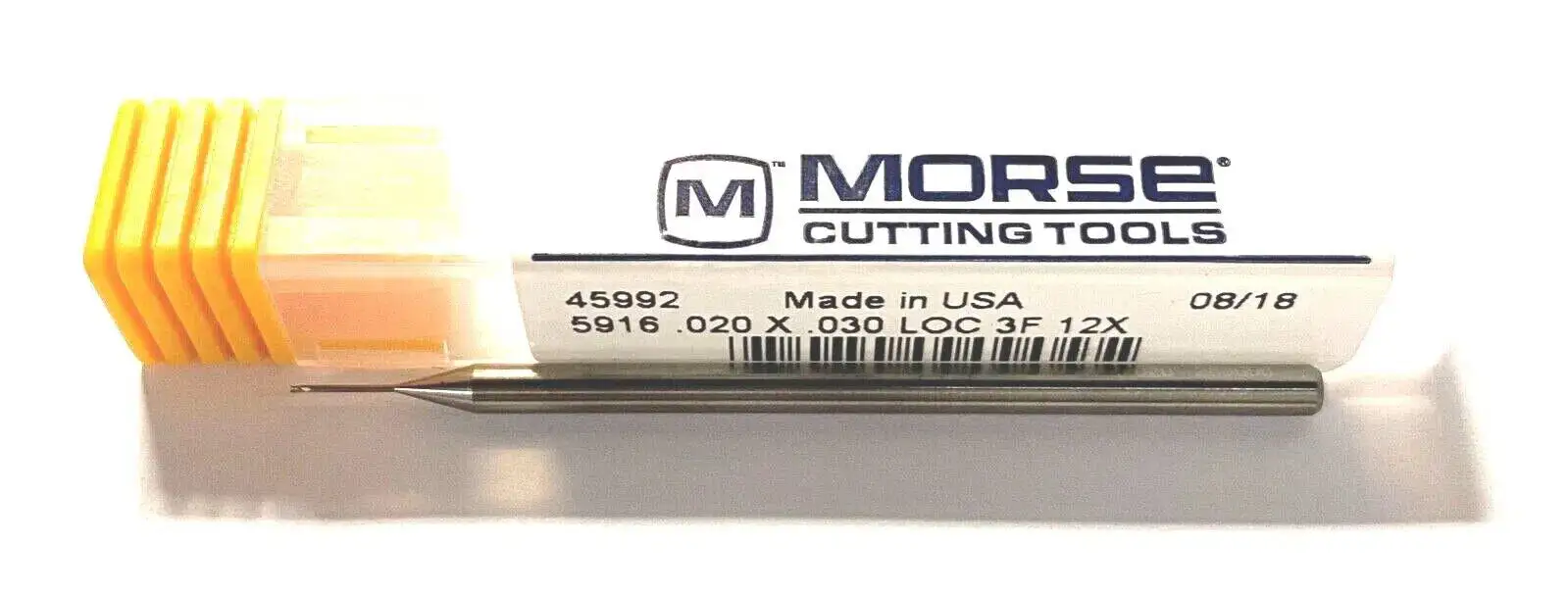

Morse .020" x 1/8" Solid Carbide End Mill 3 Flute 30° Helix 12X USA Made 45992

MORSE CUTTING TOOLS

USA MADE

SOLID CARBIDE END MILL
Cutting Diameter (DC): 0.02″
End Shape: Square
Connection Diameter Machine Side (DCONMS): 1/8″
Usable Length (LU): 0.03″
Depth of Cut Maximum (APMX): 0.03″
Corner Radius (RE): None
Overall Length (OAL): 2-1/2″
Tool Type: Single End
Cutting Edge Material: Carbide
Coolant Supply Property (CSP): External Coolant
Coating: BRT
Style: Finishing
Flute Count (NOF): 3
Decimal Equivalent: 0.02″
Flute Helix Angle (FHA): 30 Degrees
Measurement Type: Inch
Shank Type: Round
Series/List #: 5916
