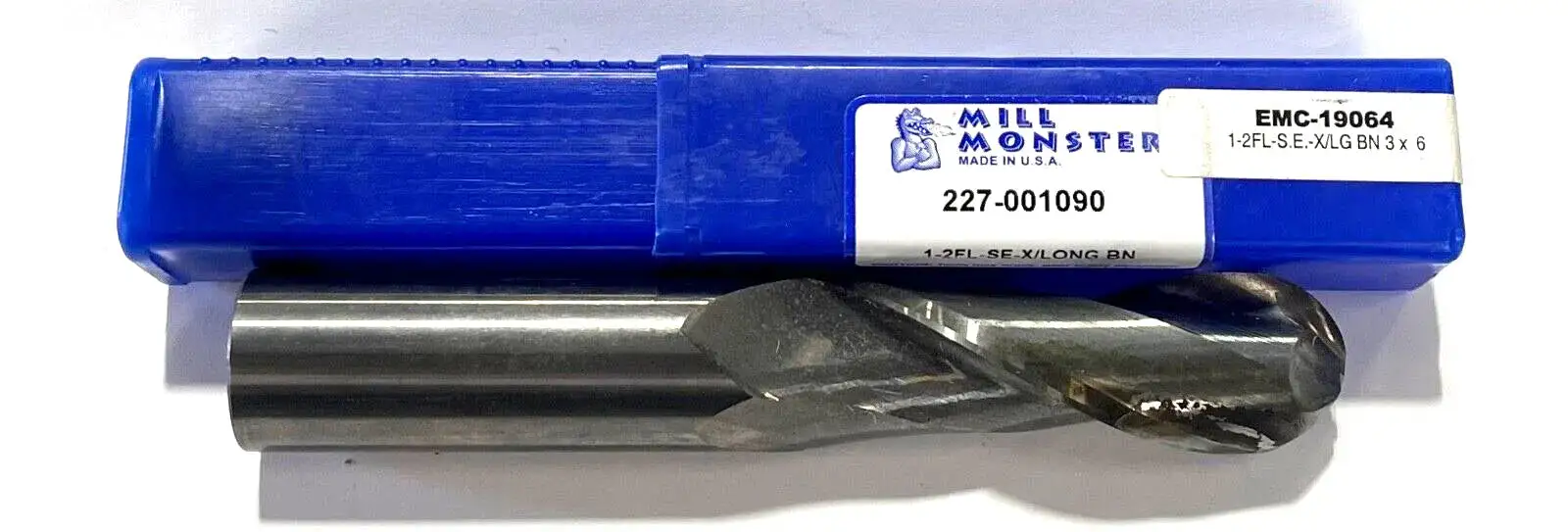

Mill Monster 1" Carbide Ball Nose End Mill Extra Long 2 Flute 227-001090 USA

MILL MONSTER

USA MADE

SOLID CARBIDE BALL NOSE END MILL EXTRA LONG

Cutting Diameter (DC): 1″
Application: | Profiling | Plunging | Profile Cutting | Radiusing | Radius Slotting |
Connection Diameter Machine Side (DCONMS): 1″
Grade: C-2 Sub-Micron
Depth of Cut Maximum (APMX): 3″
Length Group: Extra Long
Overall Length (OAL): 6″
End Shape: Ballnose
Cutting Edge Material: Carbide
Decimal Equivalent: 1″
Coating: Bright
Series/List #: 227
Flute Count (NOF): 2
Cutting Direction (HAND): Right Hand
Flute Helix Angle (FHA): 30 Degrees
Center Cutting: Yes
Applicable Material: | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
Single / Double End: Single End
