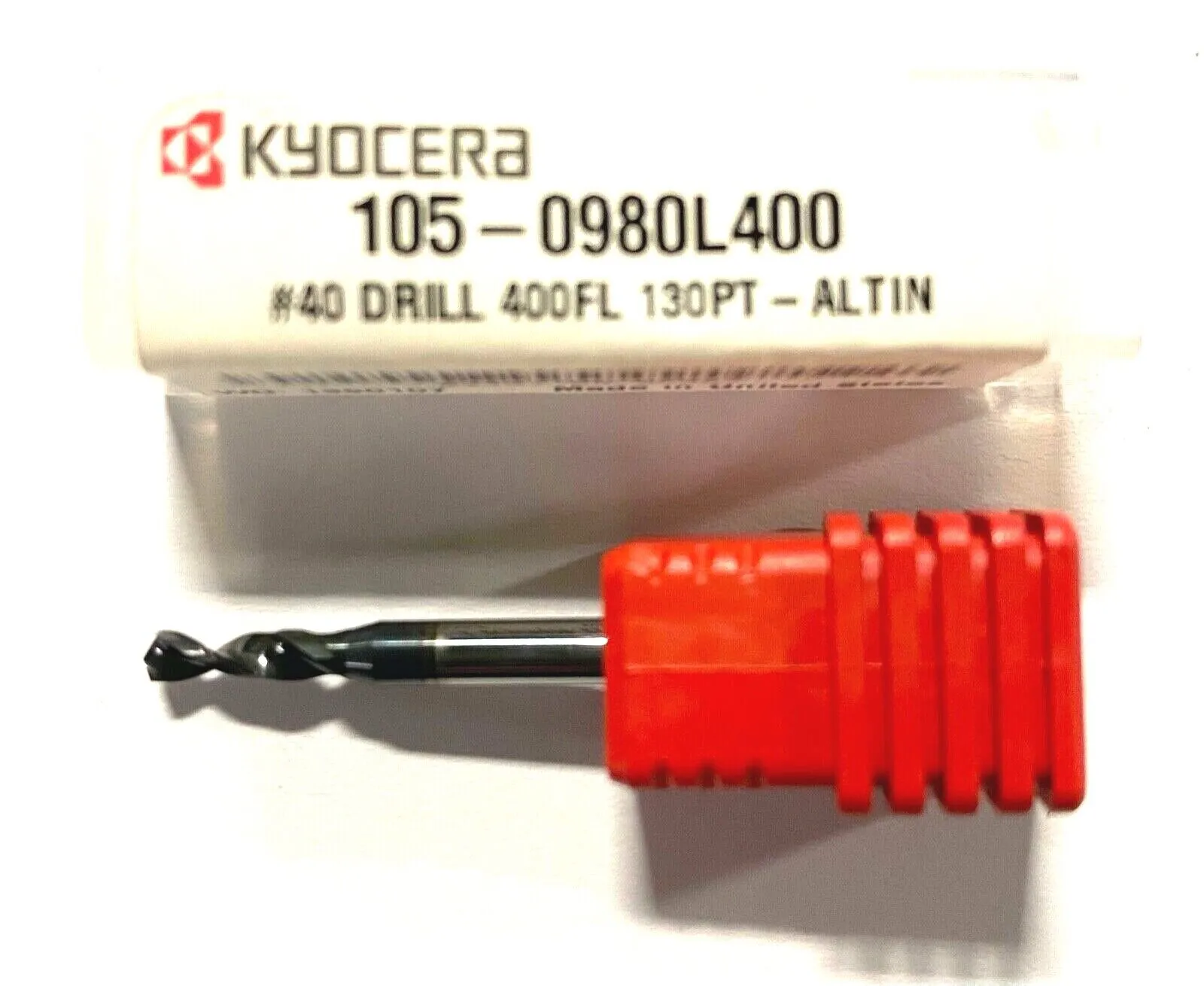

Kyocera #40 Solid Carbide Micro Drill AlTiN Coated 130° Point USA Made

KYOCERA

USA MADE

SOLID CARBIDE DRILL
Grade: Micrograin Carbide
Drill Bit Material: Solid Carbide
Item: Micro Drill Bit
Drill Bit Dimension Type: Wire
Number of Pieces: 1
Shank Type: Straight
Drill Bit Point Angle: 130 Degrees
Point Type: 4 Facet
Drill Bit Finish: AlTiN
Drill Bit Size: #40
Decimal Equivalent: 0.0980
Coolant Through: No
List Number: 105
Shank Dia.: 1/8 in
Number of Flutes: 2
Flute Length: 3/8 in
Application: Metalworking
Overall Length: 1 1/2 in
Cutting Direction: Right Hand
Coolant Fed: Non-Coolant Through
Material - Machining: Carbide
Aircraft Drill: No
Series: 105
Circuit Board Drill: No
Web Construction: Split
Drill Diameter Tolerance: +0.00mm/-0.0003mm
Primary Material Application ISO Code: H, M, P
Primary Material Application: Brass, Carbon Fiber, Cast Iron, Composite, Copper, Graphite, Hardened Steel, Nickel, Titanium
Spiral Direction: Right Hand
Drill Bit Point Type: 4 Facet Point
Finish - Machining: AlTiN
Drill Length Class: Micro Length
Web Thinning: X-Thinned
Shank Type - Machining: Straight
Measurement System: Wire
Flute Type: Spiral
Maximum Drilling Depth: 0.4000 in
Material Grade - Machining: Sub Micron
Standards: Not Rated
Country of Origin (subject to change): United States
