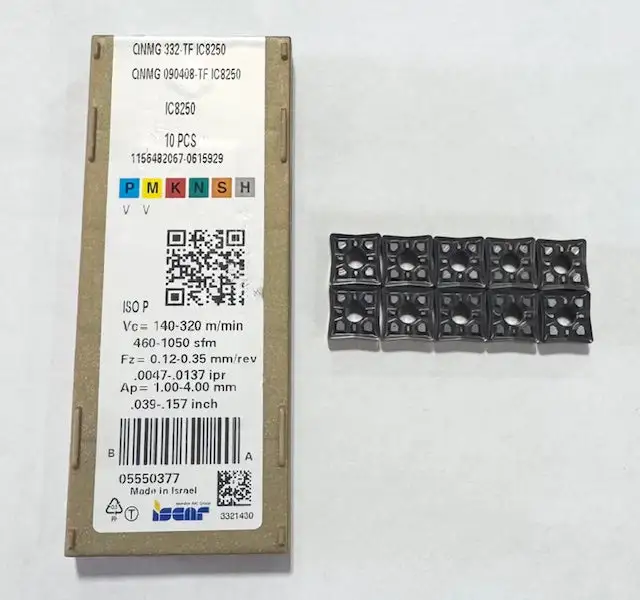

Description: Turning Insert; Q ; 0.406" Length x 3/8" IC x 0.0315" Corner Radius ; IC8250 ; Carbide ; TiCN+Al2O3+TiN
Body Material: Carbide
Brand: Iscar
Chip Breaker Type: TF
Coating: TiCN|Al2O3|TiN
Corner Radius Re: 0.0315"
Cutting Edge Length L: 0.406"
Cutting Edge Material: Carbide
Depth Of Cut Maximum Apmx: 0.157"
Grade: IC8250
Inscribed Circle Diameter Ic: 3/8"
Insert Included Angle Epsr: 60 Degrees
Insert Size: 332
Insert Style: QNMG
Insert Thickness S: 0.187"
Measurement Type: Inch
Number Of Cutting Edges: 3
Quantity: 10
Shape: Q
Tool Type: Turn Negative Inserts
