EDP/Part Number:
Order Code: 8.600
Package Quantity: 1
EAN Number: 4031093634991
Dimensions (mm): 8.600 X 131.000
Item Weight (kg): 0.082
Package Weight (kg): 0
Coating: nano-FIREX
Coolant Through: Yes
Cutting Direction: RH
Drilling Depth: 7xD
Material: Carbide
Point Angle: 140°
Shank: HA
Type: RT 100 U
Tolerance: m7 facet point grind
main cutting edge form straight
optimized cutting geometry
double marginGUHRING

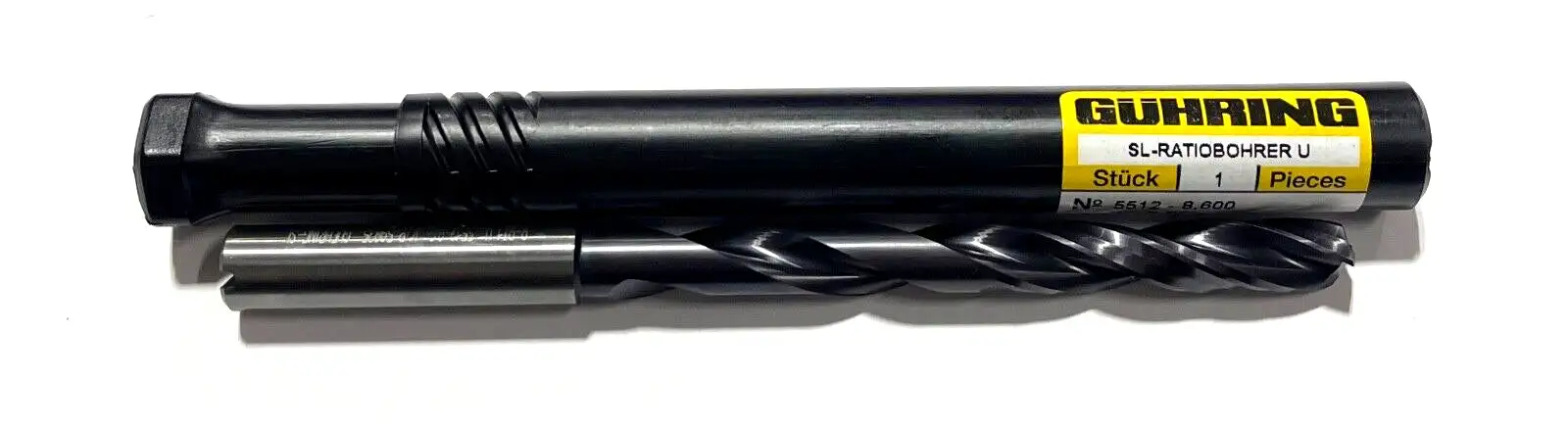

SOLID CARBIDE COOLANT THRU DRILL
facet point grind
main cutting edge form straight
optimized cutting geometry
double margin
LENGTH OF CUT: 87MM
SHANK DIAMETER: 10MM
EDP/Part Number
Order Code
8.600
Package Quantity
1
EAN Number
4031093634991
Dimensions (mm)
8.600 X 131.000
Item Weight (kg)
0.082
Package Weight (kg)
0
Coating
nano-FIREX
Coolant Through
Yes
Cutting Direction
RH
Drilling Depth
7xD
Material
Carbide
Point Angle
140°
Shank
HA
Type
RT 100 U
Tolerance
m7
