EDP/Part Number:
Order Code: 15.480
Package Quantity: 1
EAN Number: 4049844034402
Dimensions (mm): 15.480 X 204.000
Item Weight (kg): 0.385
Package Weight (kg): 0
Coating: nano-FIREX
Coolant Through: Yes
Cutting Direction: RH
Drilling Depth: 7xD
Material: Carbide
Point Angle: 140°
Shank: HA
Type: RT 100 U
Tolerance: m7 facet point grind
main cutting edge form straight
optimized cutting geometry
double marginGUHRING

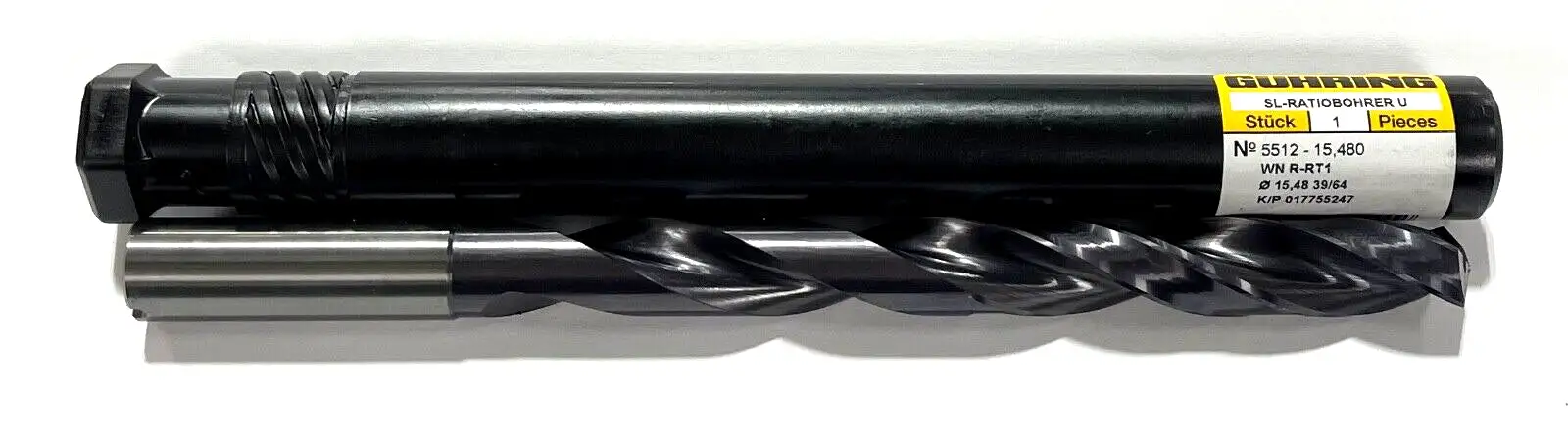

SOLID CARBIDE COOLANT THRU DRILL
facet point grind
main cutting edge form straight
optimized cutting geometry
double margin
EDP/Part Number
Order Code
15.480
Package Quantity
1
EAN Number
4049844034402
Dimensions (mm)
15.480 X 204.000
Item Weight (kg)
0.385
Package Weight (kg)
0
Coating
nano-FIREX
Coolant Through
Yes
Cutting Direction
RH
Drilling Depth
7xD
Material
Carbide
Point Angle
140°
Shank
HA
Type
RT 100 U
Tolerance
m7
