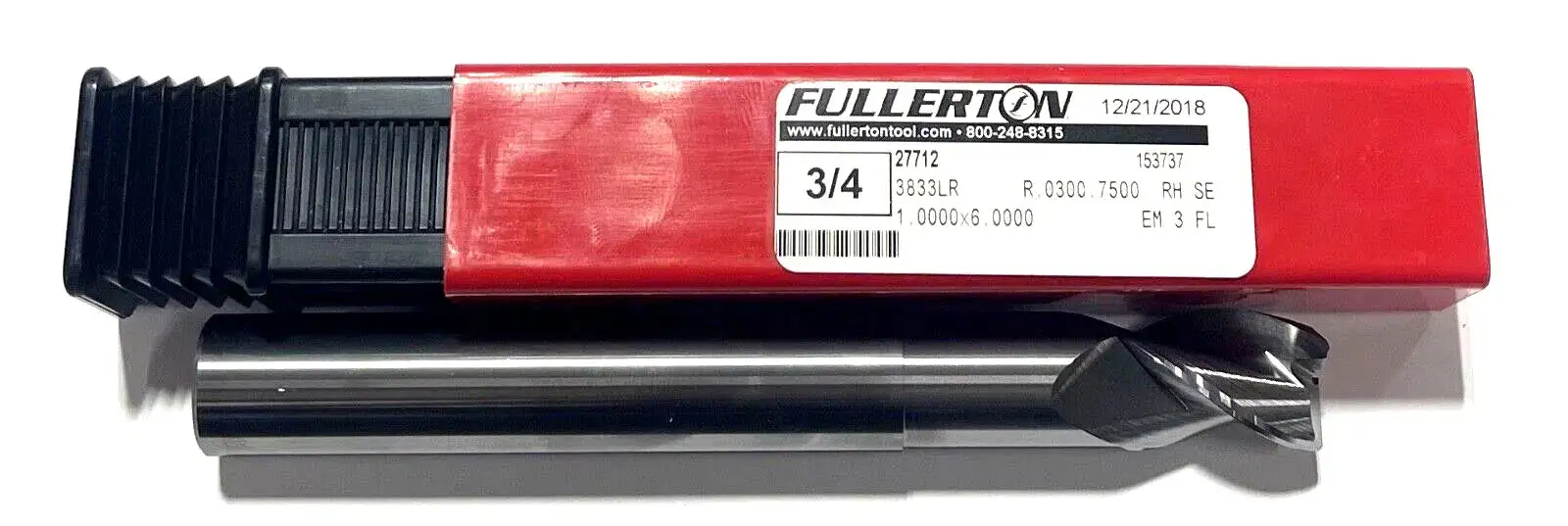

Fullerton 3/4" x 3/4" x 1" x 6" Carbide End Mill 3 Flute Long Reach .030" Radius

FULLERTON

USA MADE

SOLID CARBIDE END MILL

Features
The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating
Product Specifications
Cutting Diameter (Decimal Inch)
0.7500"
Cutting Diameter (mm)
19.05mm
Cutting Diameter (Inch)
3/4"
Cutting Flute Length (Decimal Inch)
1"
Cutting Flute Length (mm)
25.40mm
Cutting Flute Length (Inch)
1"
Shank Diameter (Decimal Inch)
0.7500"
Shank Diameter (mm)
19.05mm
Shank Diameter (Inch)
3/4"
Overall Length (Decimal Inch)
6.0000"
Overall Length (mm)
152.40mm
Overall Length (Inch)
6"
Coating/Finish
Uncoated
Metric/Inch
Inch
Number of Flutes
3
Helix Angle (Degrees)
37.5
Flute Spiral Direction
Right Hand
Direction of Cut
Right Hand
Neck Diameter (Decimal Inch)
0.7200"
Neck Diameter (mm)
18.29mm
Reach (Decimal Inch)
2.2500"
Reach (mm)
57.15mm
Reach (Inch)
2-1/4"
Point End Type
Corner Radius
End Type Character Designation
R
Radius (Decimal Inch)
0.0300"
Radius (mm)
0.76mm
End Type
Single End
Coolant Through
Non Coolant Through
Weldon Flat
No
Length
Long Reach
Length Designator
LR
