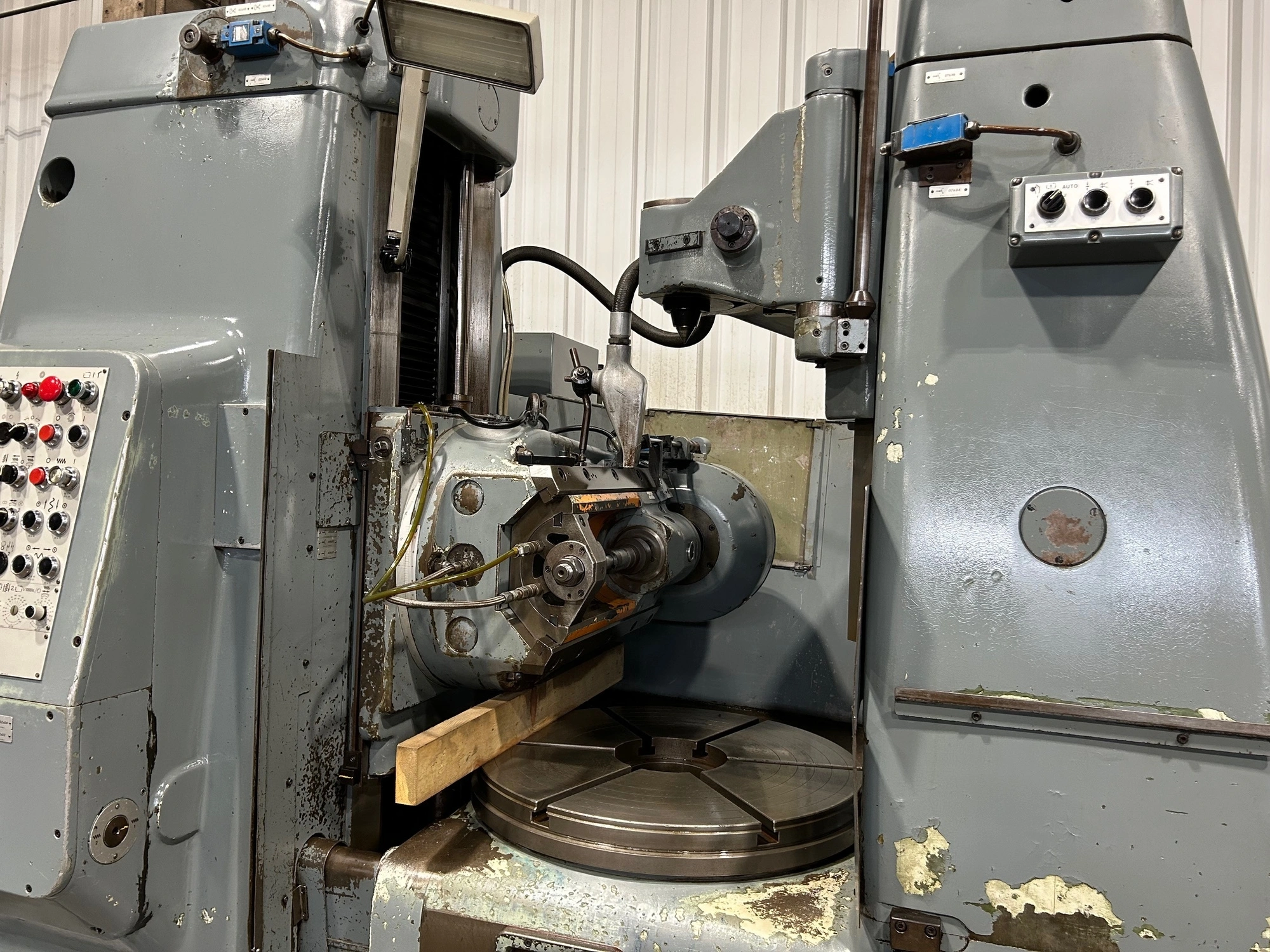

The Pfauter P900 vertical gear hobber is a high-production hydraulic machine designed for precise gear hobbing. It can handle gears with a maximum diameter of 900mm and a maximum module of 10. The machine features a double-cut cycle with independently adjustable hob rotation speeds and feed rates for both cuts.
| Maximum Workpiece Diameter | 36" | 914.4 mm |
| Horz/Vert | Vert | Vert |
| Maximum Diametral Pitch | 2.0 | 2.0 |
| Module | 10 | 10 |
| Axial Travel | 19.685" | 500 mm |
| Maximum Hob Diameter | 7.5" | 190.5 mm |
| Hob Arbor Size | 1.25" | 31.75 mm |
| Control Manufacturer | Conventional | Conventional |
Differential
Two-Cut Cycle
Tailstock W/Center
Change Gears
Arbors
Chip Conveyor
Coolant System
