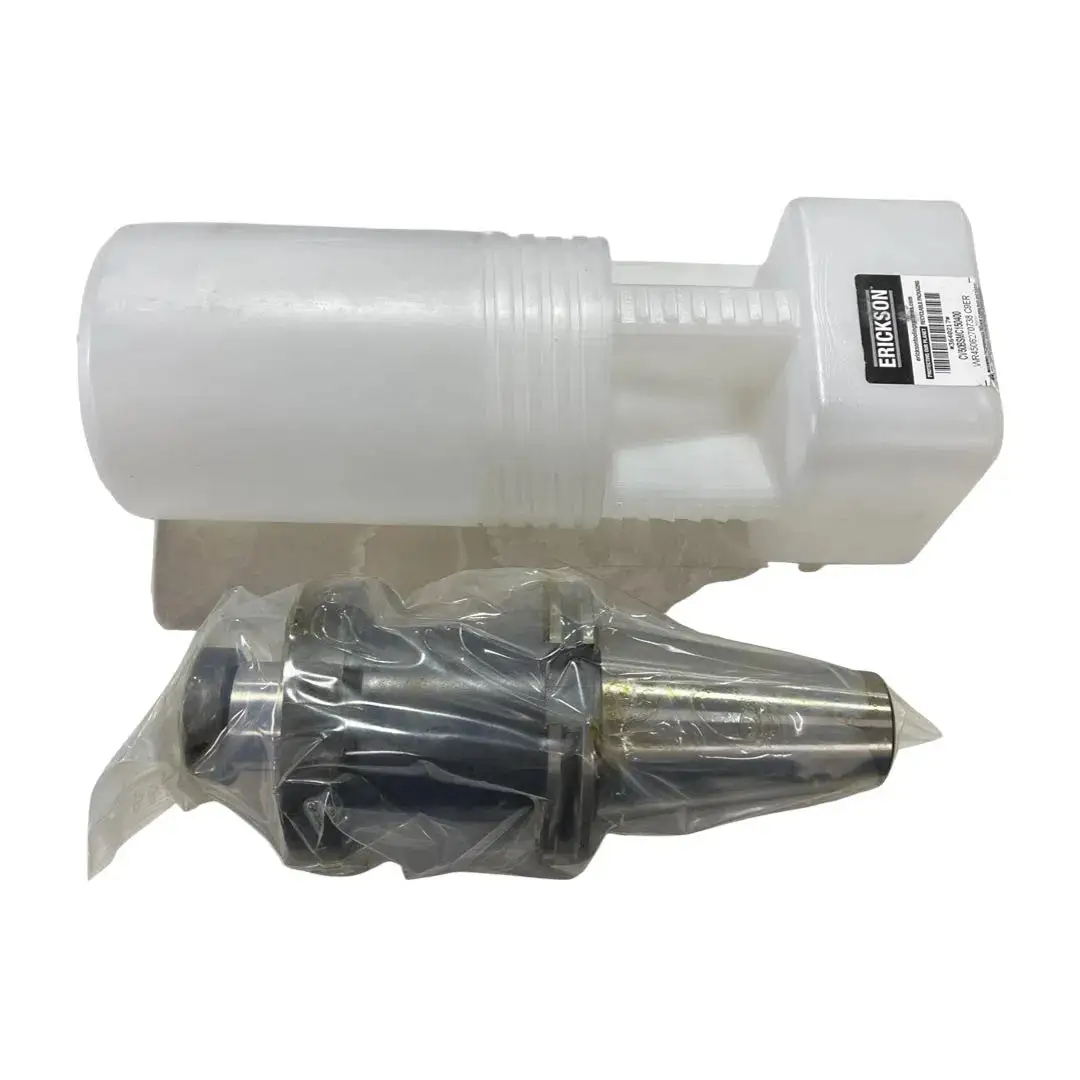

Erickson CAT50 1-1/2" Shell Mill Holder Coolant Thru 4-15/16" Protruding Length

ERICKSON

CAT50 SHELL MILL HOLDER

Connection Diameter Machine Side (DCONMS): #50
Thread Size: 3/4″ - 16
Connection Diameter Workpiece Side (DCONWS): 1-1/2″
Coolant Supply Property (CSP): Coolant Thru
Shank Size (SS): #50
Pilot Length: 15/16″
Functional Length (LF): 4″
Series/List #: CV50
Body Length (LB): 4″
Measurement Type: Inch
Body Diameter (BD): 3.81″
Protruding Length (LPR): 4-15/16″
Overall Length (OAL): 8-15/16″
Body Diameter_2 (BD_2): 3-7/8″
Shank Type: CV-Caterpillar V-Flange In
Body Length Maximum (LBX): 3-1/4″
