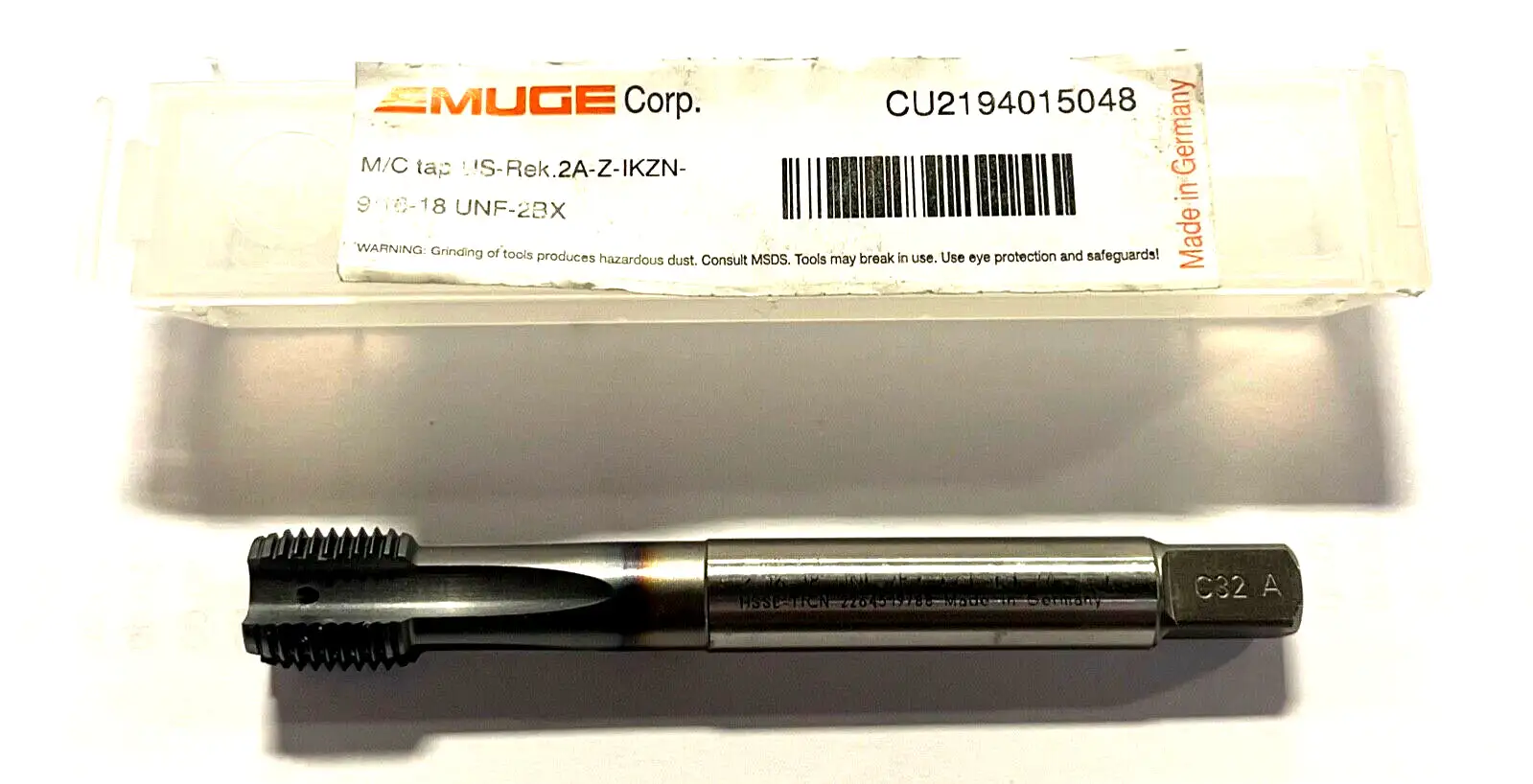

EMUGE 9/16-18 UNF-2BX HSSE Tap TiCN Coating Coolant Thru Straight Flute

EMUGE

HSSE COOLANT THRU TAP

Thread Diameter Size (TDZ)
9/16″
Standard
DIN | ANSI
Threads per Inch (TPI)
18
Tool Type
Rekord A-Z
Thread Standard
UNF
Chamfer
2P-3P
Overall Length (OAL)
3.937″
Coating
TiCN
Thread Cutting Part Length (THL)
0.87″
Flute Type
Straight
Connection Diameter Machine Side (DCONMS)
0.429″
End Shape
Chamfer
Flute Helix Angle (FHA)
0 Degrees
Cutting Direction (HAND)
Right Hand
Applicable Material
Cast Iron
Coolant Supply Property (CSP)
Coolant Thru
Cutting Edge Material
HSSE
Measurement Type
Fractional
Thread Tolerance Class (TCTR)
2BX
Thread Size
9/16″ - 18
