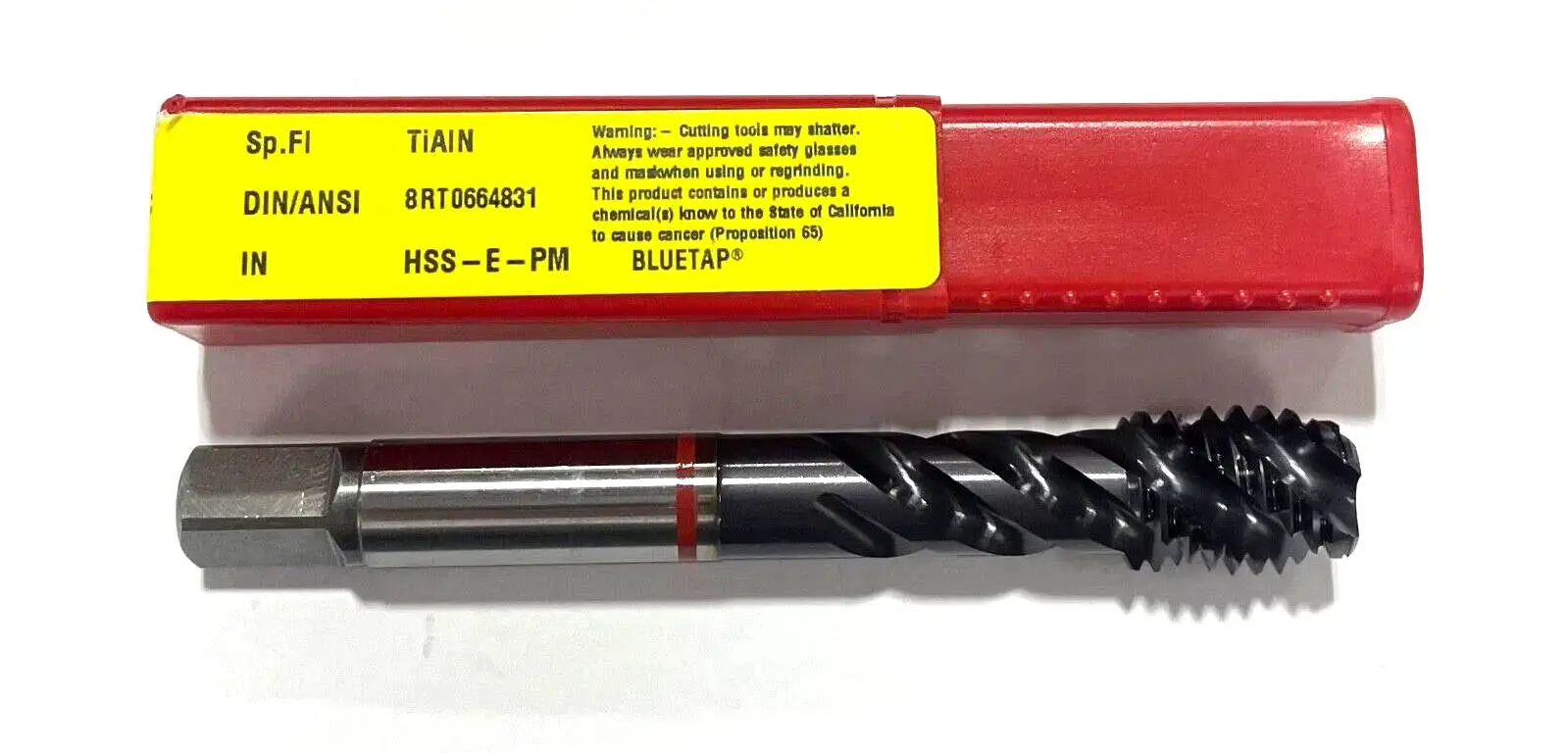

Dormer 5/8-11 Tap HSS-E-PM Spiral Flute Semi Bottoming 45° TiAlN Red Ring 4FL

DORMER

HSS-E-PM SPIRAL FLUTE SEMI BOTTOMING TAP

Thread Diameter Size (TDZ): 5/8″
Standard: | DIN | ANSI |
Threads per Inch (TPI): 11
Tool Type: Machine Tap
Thread Standard: | UNC |
Chamfer: 2P-3P
Overall Length (OAL): 4.331″
Coating: TiAlN
Thread Cutting Part Length (THL): 0.787″
Flute Type: Spiral
Connection Diameter Machine Side (DCONMS): 0.48″
Style: Semi-Bottoming
Flute Count (NOF): 4
Cutting Direction (HAND): Right Hand
Flute Helix Angle (FHA): 45 Degrees
Coolant Supply Property (CSP): External
Applicable Material: | Steel |
Length Group: 2.5xD
Cutting Edge Material: HSSE-PM
Square Size: 0.358″
Thread Tolerance Class (TCTR): | 2B |
Measurement Type: Fractional
Special Feature: Red Shark
Series/List #: E810
