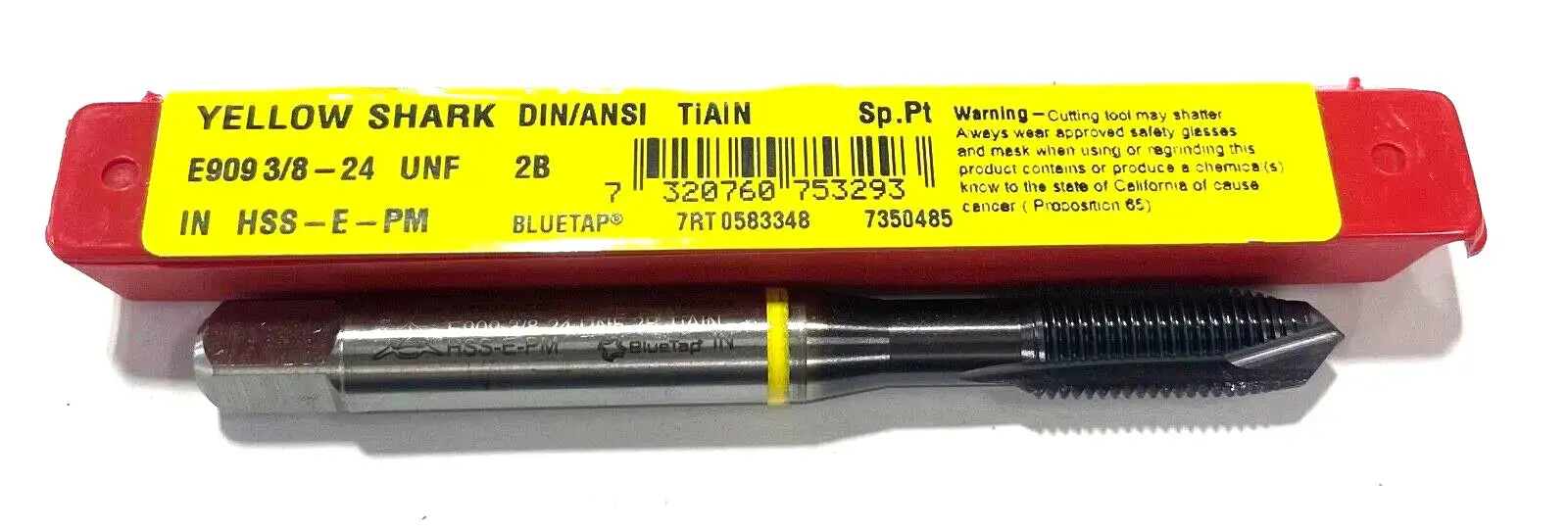

Dormer 3/8-24 UNF Spiral Point Plug Tap TiAlN Coating 3 Flute H4 2B 7350485

Dormer 3/8-24 UNF Spiral Point Plug Tap TiAlN Coating 3 Flute H4 2B 7350485

USD $11.64

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Other Cutting Tools
Manufacturer:
DORMER
Description

DORMER

HSS-E-PM SPIRAL POINT PLUG TAP

Thread Standard: | UNF |
Applicable Material: | Steel |
Thread Size: 3/8″ - 24
Connection Diameter Machine Side (DCONMS): 0.381″
Thread Diameter Size (TDZ): 3/8″
Thread Cutting Part Length (THL): 0.787″
Threads per Inch (TPI): 24
Flute Helix Angle (FHA): 0 Degrees
Thread Tolerance Class (TCTR): | H4 |
Tapping Prehole Diameter (Pre-hole): Q
Usable Length (LU): 1.476″
Flute Length: 0.787″
Overall Length (OAL): 3.543″
End Shape: Spiral Point
Chamfer: 3.5P-5P
Style: Plug
Coating: TiAlN
Cutting Direction (HAND): Right Hand
Flute Count (NOF): 3
Coolant Supply Property (CSP): External
Cutting Edge Material: HSSE PM
Length Group: 2.5xD
Standard: | DIN | ANSI |
Measurement Type: Fractional
Tool Type: Machine Tap
Series/List #: E909
Special Feature: Yellow Shark
