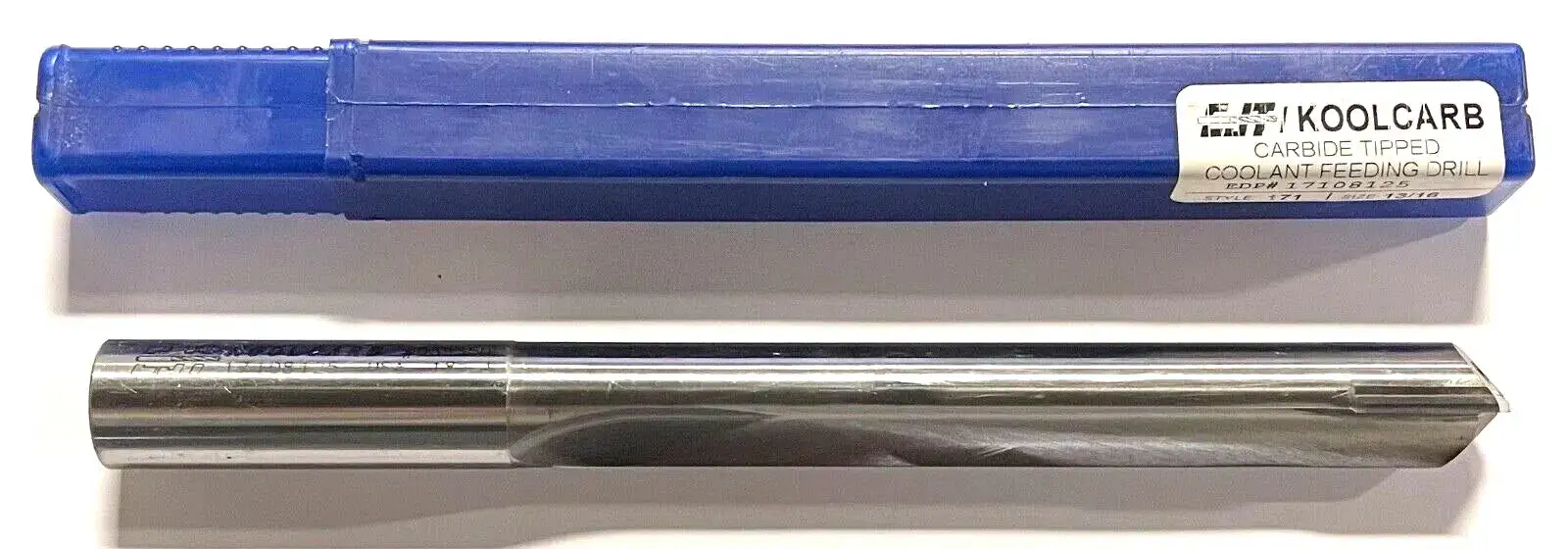

CJT Koolcarb 13/16" Carbide Tipped Coolant Feeding Drill Straight Flute USA Made

CJT KOOLCARB

USA MADE

CARBIDE TIPPED COOLANT FEEDING DRILL STRAIGHT FLUTE

Drill Bit Grouping: Drill Bit
Item: Straight Flute Drill Bit
Drill Bit Dimension Type: Fractional Inch
Drill Bit Size: 13/16 in
Decimal Equivalent: 0.8125
Drill Bit Point Angle: 125 Degrees
Drill Bit Material: Carbide-Tipped
Drill Bit Finish: Uncoated
Overall Length: 8 9/16 in
Flute Length: 6 1/16 in
Depth:Dia. Ratio: 6xD
Cutting Direction: Right Hand
Material: Carbide-Tipped
Coolant Through: Yes
Point Type: 4 Facet
Shank Dia.: 13/16 in
Standards: Not Rated
Depth x Dia. Ratio: 6xD
Helix Angle: 0 Degrees
Drilling Depth: 4.4000"
Coolant Fed: Coolant Through
Shank Length: 2-1/2 in
Number of Flutes: 2
Primary Material Application: All Materials
Flute Type: Straight
Aircraft Drill: No
Shank Type - Machining: Straight
Number of Coolant Holes: 2
Primary Material Application ISO Code: H, K, N, P
Drill Bit Point Type: 4 Facet Point
Finish - Machining: Bright (Uncoated)
Material - Machining: Carbide Tipped
Measurement System: Fractional Inch
Drill Point Length: 0.21 mm
Maximum Drilling Depth: 6-1/16 in
Drill Length Class: Jobber Length
Drill Diameter Tolerance: +0.0000 in /-0.0010 in
Country of Origin (subject to change): United States
