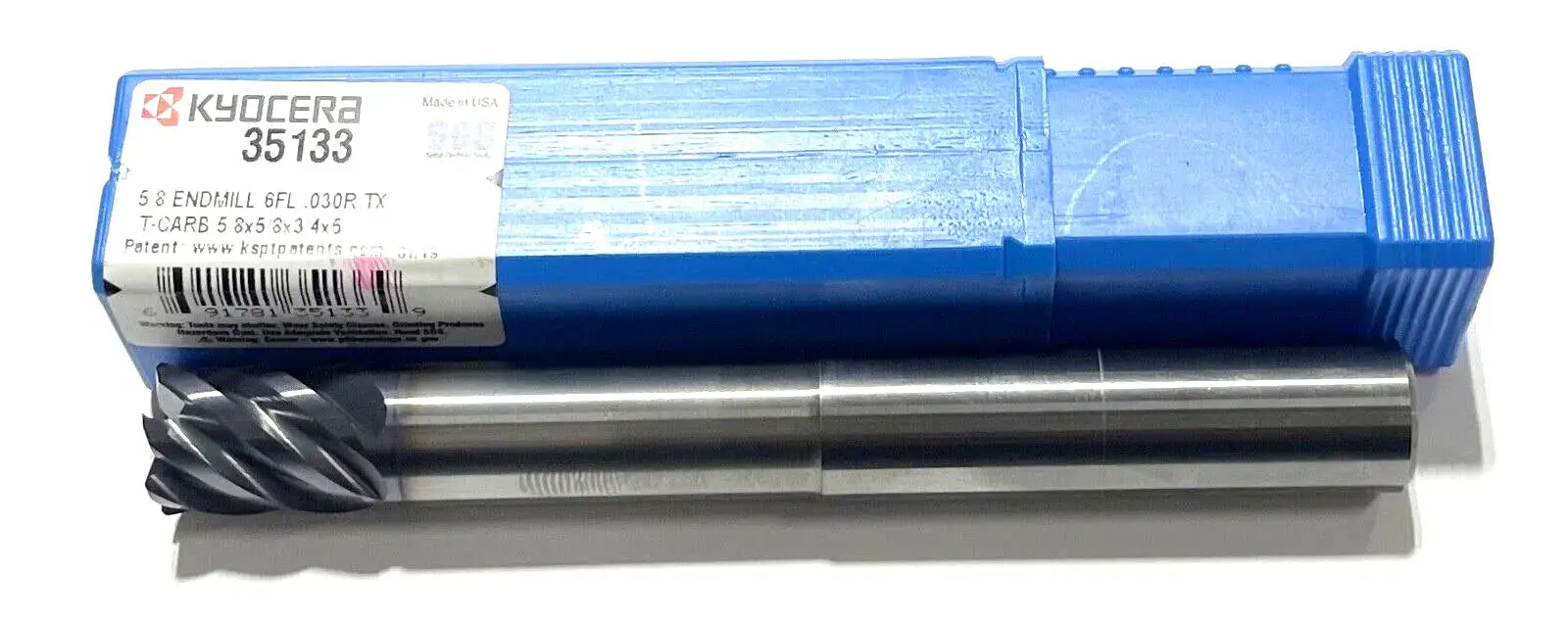

5/8" Carbide End Mill TX Coating .030 Radius 6 Flute with Neck Relief USA Made

KYOCERA

USA MADE

SOLID CARBIDE END MILL

Engineered for High Speed Milling using Trochoidal and Peel Milling techniques
Eccentric relief provides superior strength and smoother surface finish
Enhanced corner geometry with tight tolerance corner radius
Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch)
5/8"
Shank Diameter (Inch)
5/8"
Length of Cut (Inch)
3/4"
Overall Length (Inch)
5"
Shank Length (Inch)
2.5"
Cut of Direction
Right Hand
Flute Type
Spiral
Reach (Inch)
2.5"
Corner Radius (Inch)
0.03"
Helix Angle
41 Degree
Coating
TX
Number of Flutes
6
