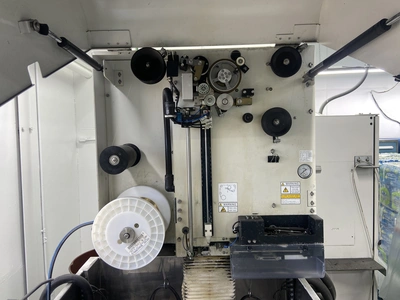

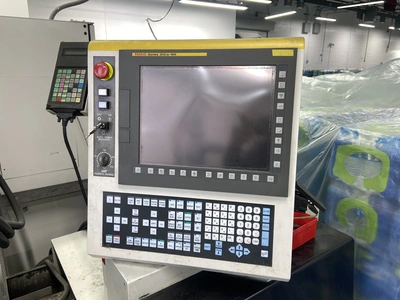

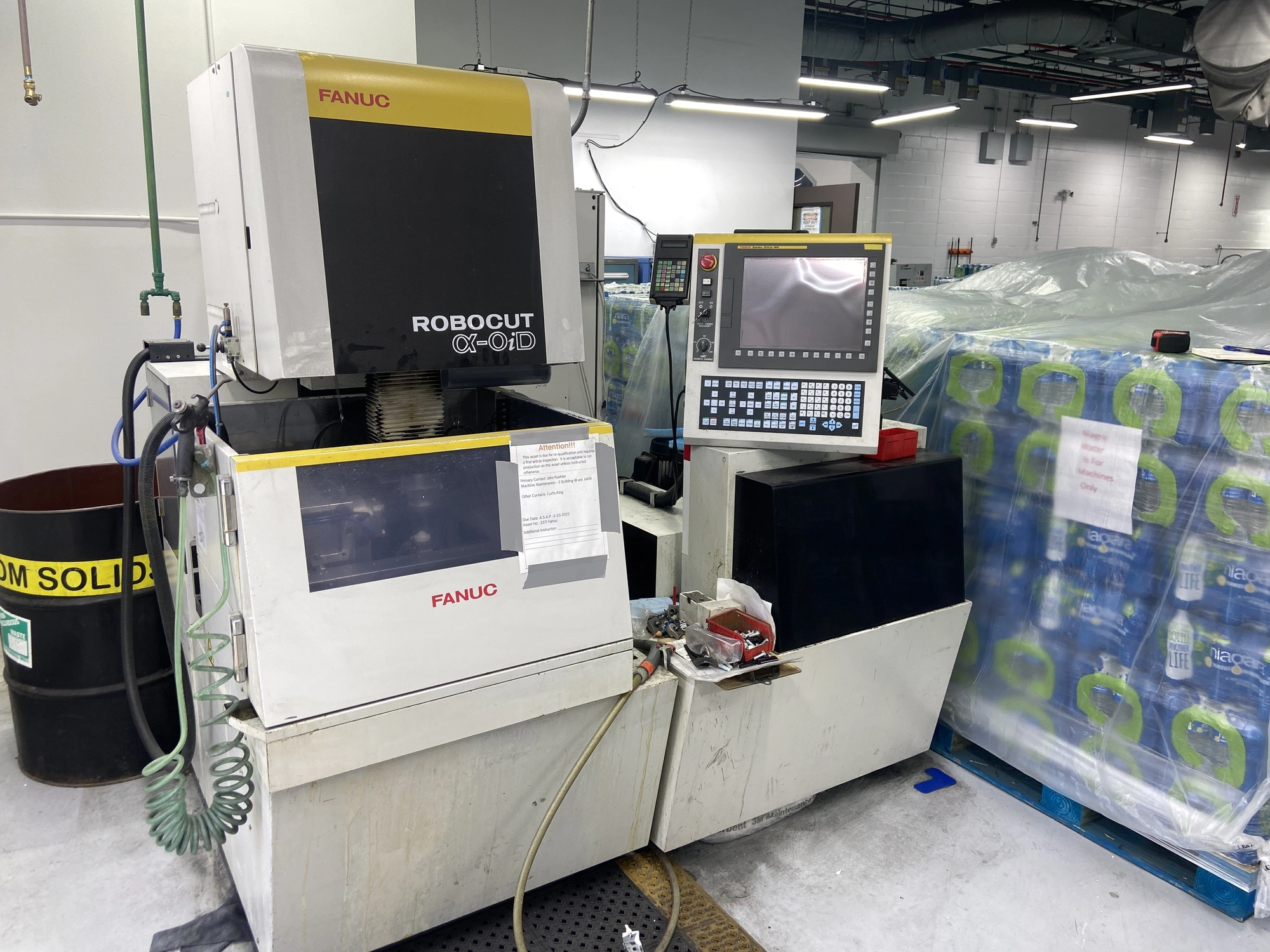

The FANUC ROBOCUT A-OID is a high-precision, compact wire EDM (Electrical Discharge Machining) machine known for its accuracy and ease of use. It utilizes electrical discharge to erode a conductive workpiece, creating intricate shapes with high precision. The machine is equipped with an advanced FANUC CNC control system, a robust frame, and features like automatic wire threading and corner control.
| X-Axis Travel | 14.6" | 370.84 mm |
| Y-Axis Travel | 10.6" | 269.24 mm |
| Z-Axis Travel | 10" | 254 mm |
| Auto Threading (Yes/No) | Yes | Yes |
| Submerged (Yes/No) | Yes | Yes |
| Control | CNC | CNC |
| Dimensions | 76" x 87" x 77" H | 76" x 87" x 77" H |
| Weight | 4,000# | 4,000# |
Specifications:
X-Axis Travel: 14.6"
Y-Axis Travel: 10.6"
Z-Axis Travel: 10"
U/V Axis Travel: 2.36" x 2.36"
Degree Taper Cutting: 30" at 3.3"
Inside Tank Dimensions: 30.5" x 23.6"

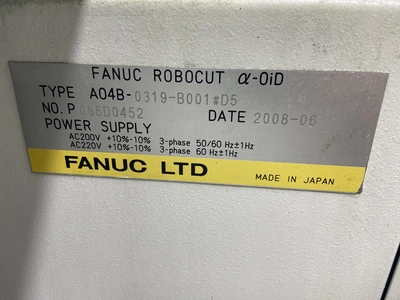

Power Requirement: 200-230/3/60
Glass Scale Feedback: .00000004 Rotary
Wire Diameter: .008" - .012"
Max Cutting Speed: Wire .012 Coated, 2.4" Thick, D2 33.5 Sq In/Hour
Positioning Accuracy: +/- .0001
Dielectric Capacity: 145 Gallons
Max Submerged Depth: 9.84"
Max Workpiece Size: 30.5" x 23.6" x 10"
Max Workpiece Weight: 1,100 Lbs
Machine Footprint: 76" x 87" x 77"H
Machine Weight: 4,000 Lbs
