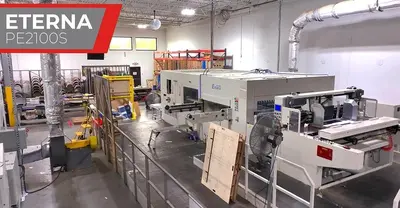

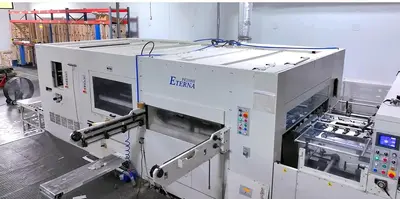

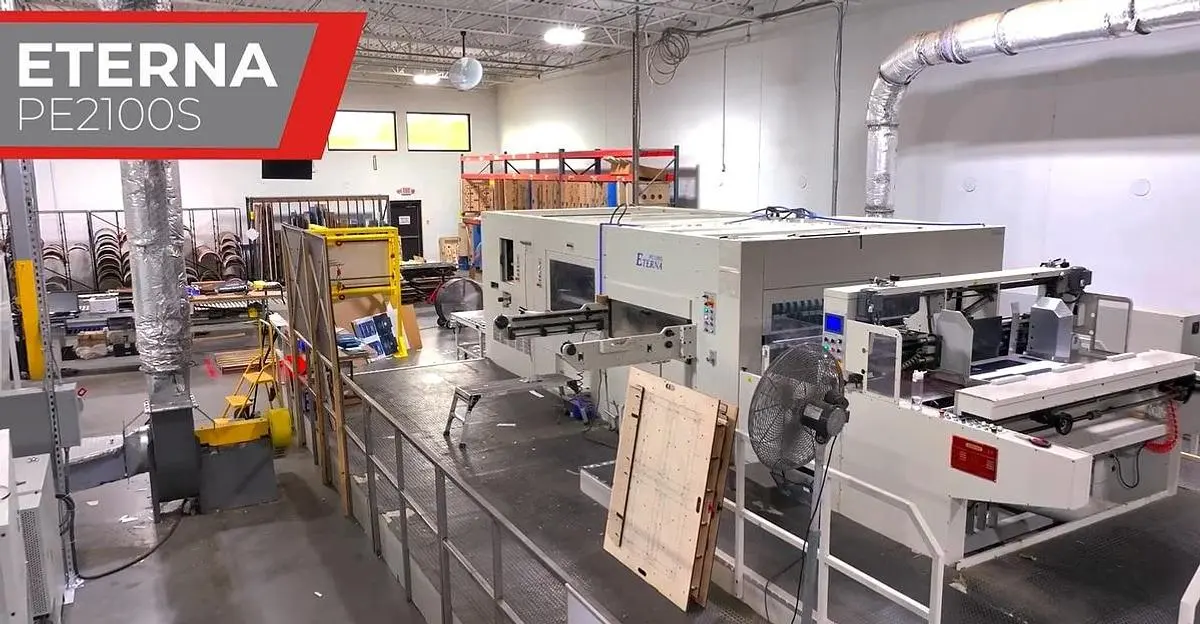

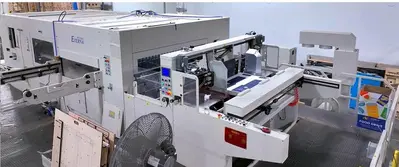

USED 2017 ETERNA PE2100S

82" Large format automatic flatbed die cutting & creasing machine with servo drive lead edge feeder.

Specifications:
Maximum Sheet Size: 82.67" x 51.18" (2100 x 1300mm)
Minimum Sheet Size: 33.46" x 23.63" (850 x 600mm)
Maximum Speed: 4,5000 sheets/hour
Maximum Cutting Pressure: 500 tons
Stock Range: Corrugated Board - E, C, B, A, AB flute and other flute up to 11mm
Plastic Corrugated Board - 1 - 11mm

Features:
Lead Edge Feeder
Dynamic torque servo motor-driven differential speed belt lead edge feeder with extended feeding table and side alignment
Top quality feeding belt for handling of warped corrugated board
Pneumatic side push jogger (left and right side)
Front Lay & Alignment Guide
Sheet arrives at front lay with servo motor controlled slow down action for precise registration
Side alignment system to ensure the accuracy of side register
Die Cutting Section
7 piece gripper bar with 24 spikes per piece
Safety door and die chase safety locking system to ensure safe operation
Complete lost sheet control throughout the entire machine
Centerline system compatible to Centerline II for quick change over and short setup time
Air cushion underneath die cutting plate for easy cutting plate floating in and out
Stripping Section
Centerline system with quick lock pins on upper frame
Centerline system compatible to Centerline II for quick stripping die setup
Motorized upper frame suspending hoister up to 500mm
Lead edge removal system to remove gripper margin completely

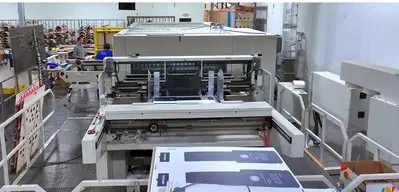

Delivery Section
Escalator delivery with non-stop air cylinder to protect the sheets from scratches
Non-stop batch counter bundle delivery to ensure continuous productivity and operation efficiency.
