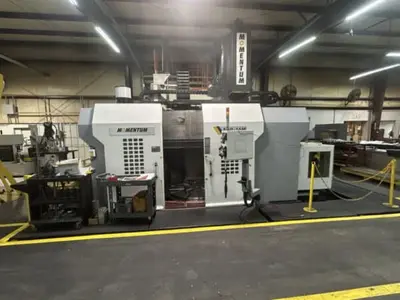

Momentum MVL-16M VTL – 2018

Momentum MVL16M Vertical Turret Lathes
Max Turn Dia: 78.74″

Max Turn Height: 63.18″

Table Diameter: 62.99″

Max Workpiece Weight: 22,000lbs

Spindle Power: 73 HP

Spindle Speed: (Low) 65 RPM / (High) 280 RPM

Milling Spindle Power: 25 HP

Milling Spindle Speed: (Low) 1,570 RPM / (High) 3,000 RPM

Milling Spindle Taper: CAT50

X-Travel: -40.1″ -> 45.8″

Z-Travel: 39.37″

Ram Size: 10″x10″

Tool Capacity: 15+1

Machine Weight: 81,130 lbs

Fanuc 0i-TF Plus Control

Milling Spindle

Right Angle Milling Head

Adjustable Cross Rail

Thru Milling Spindle Coolant

Telescopic Guards

Chip Conveyor

All Available Manuals
