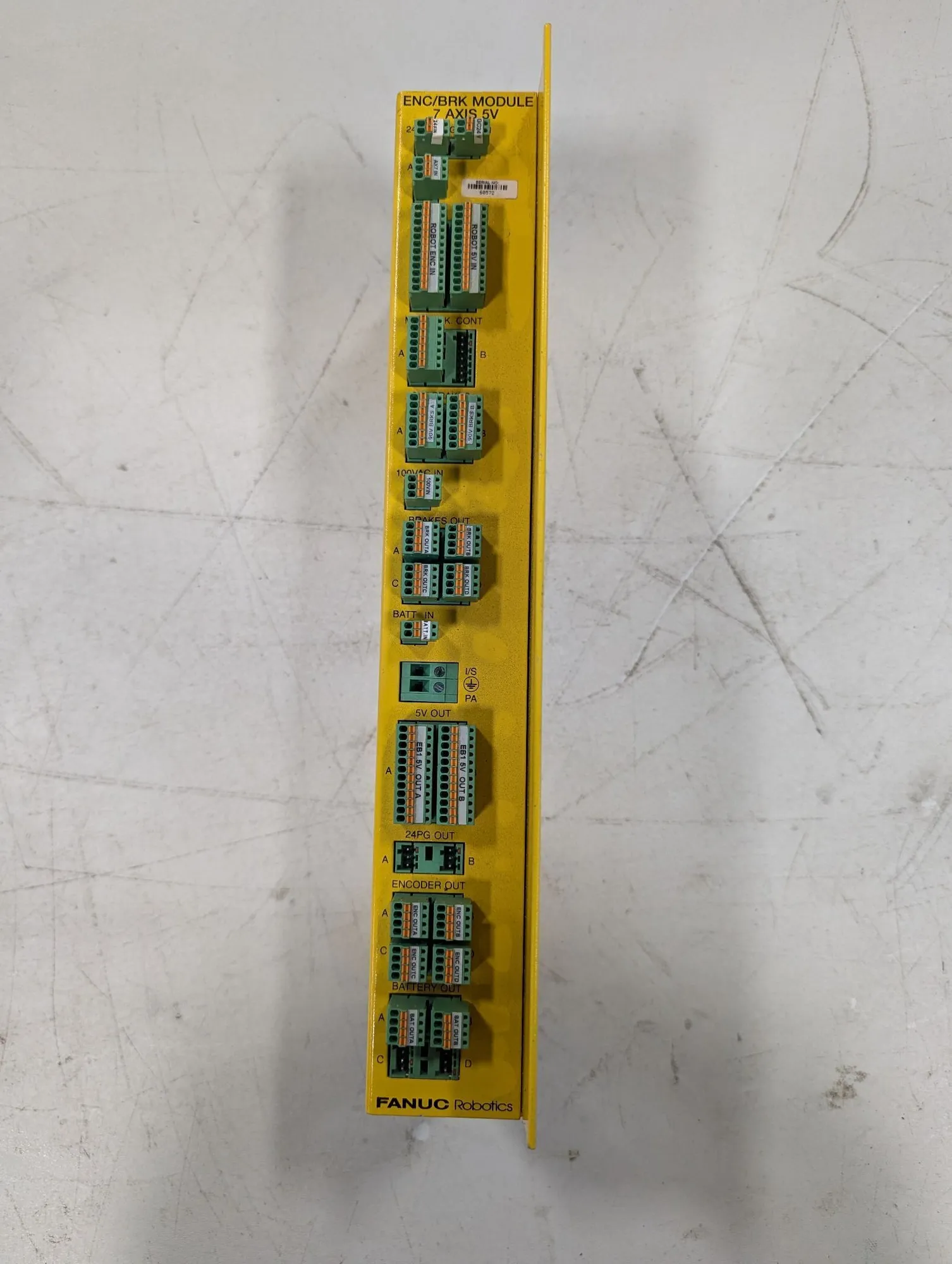

USED 2007 FANUC EE-4583-050

IDENTIFICATION
Manufacturer: FANUC Robotics
Part Number: EE-4583-050
Product Type: Encoder / brake module
Axis Configuration: 7-axis
Revision: F
Condition: USED
YOM: 2007-05-17
Country of Manufacture: USA

POWER
Module Voltage: 5 VDC
5 V Input: Present
5 V Output: Present
24 V Output: Present
Battery Input: Present
Battery Output: Present
Protective Earth: Present

ENCODER INTERFACE
Encoder Inputs: Present
Encoder Input Groups: A / B
Encoder Outputs: Present
Encoder Output Groups: A / B / C

BRAKE INTERFACE
Brake Outputs: Present
Brake Output Groups: A / B / C / D
Brake Control Interface: Integrated

CONTROL / CONNECTION
Terminal Connections: Pluggable terminal blocks
K_CONT Interface: Present
I/S / Protective Earth: Present
Field Connections: Front accessible

HAZARDOUS LOCATION
ATEX Classification: II (2) G
Protection Designation: [EEx ib] IIB
Ambient Temperature: -20 to +45 °C
ATEX Certificate: TRL 04 ATEX 21050X
IECEx Certificate: IECEx FMG 05.0002X
Connection Drawing: EE-4657-560
