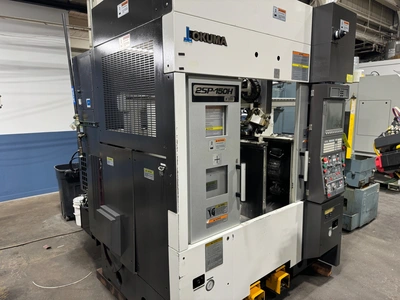

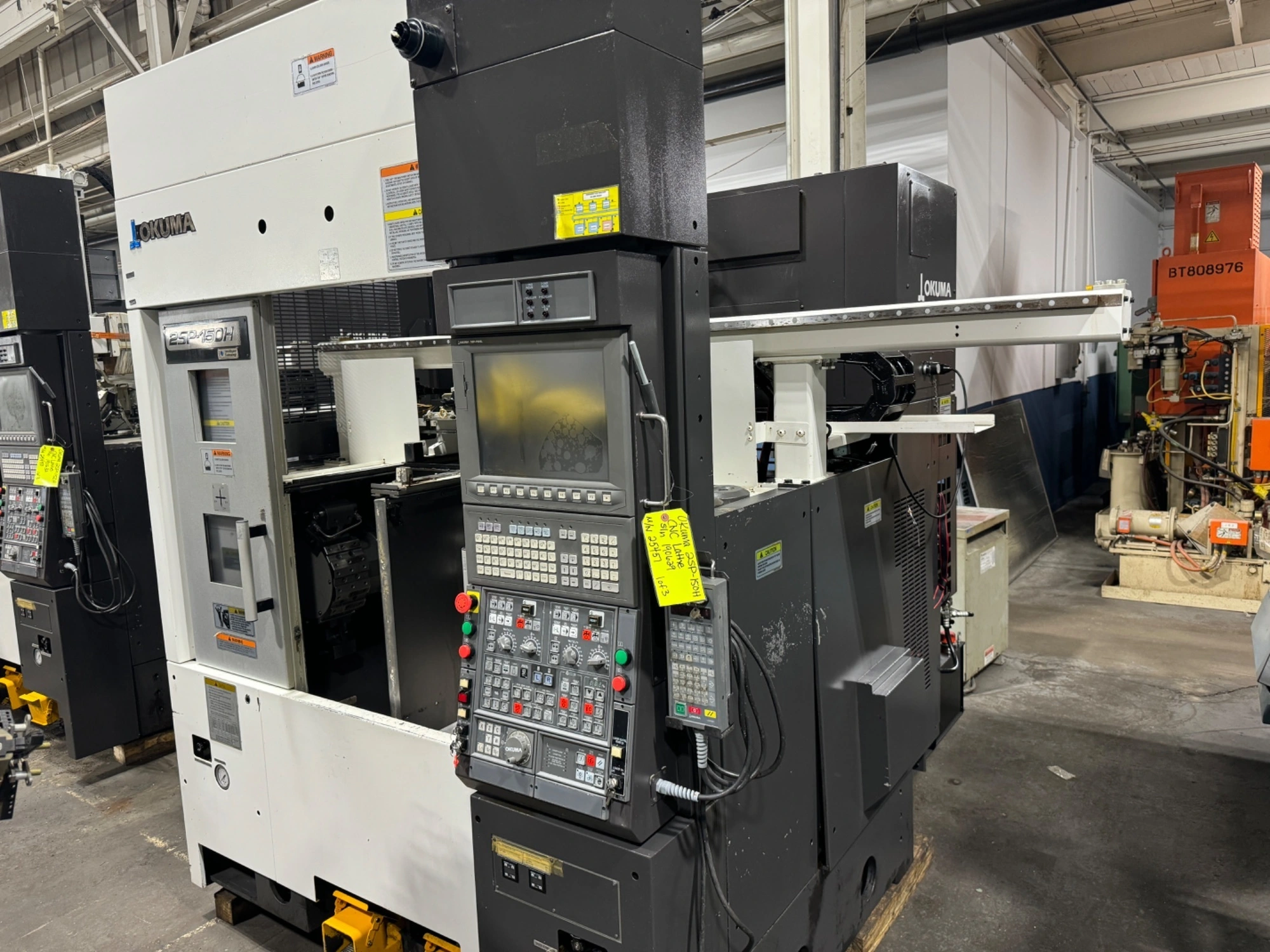

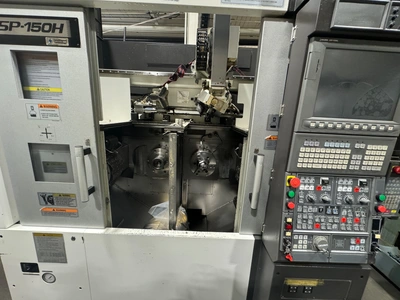

The innovative front-facing spindle of the 2SP-150H helps create an automation-friendly lathe for small parts production. By moving the spindle off the side and incorporating the Okuma Gantry Loader (OGL) into the production line, parts can be loaded and unloaded automatically. An extremely compact footprint improves floor space utilization, while the popular dual spindle option significantly reduces cycle time.

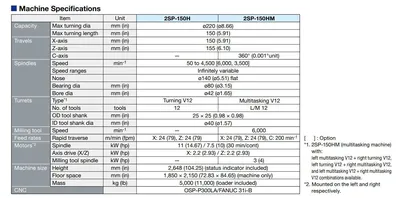

| Swing | 13.7" | 347.98 mm |
| Machining Length | 5.91" | 150.11 mm |
| # Axis | 3 | 3 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 8.68" | 220.47 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Okuma OSP-P300L) | CNC (Okuma OSP-P300L) |
| Dimensions | 84.65" x 72.83" x 104.25" | 84.65" x 72.83" x 104.25" |
| Weight | 11,000# | 11,000# |

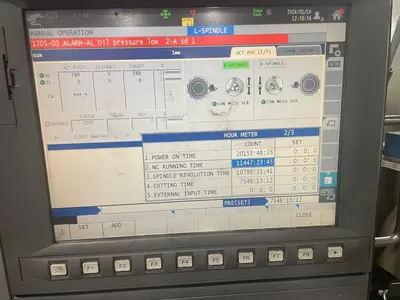

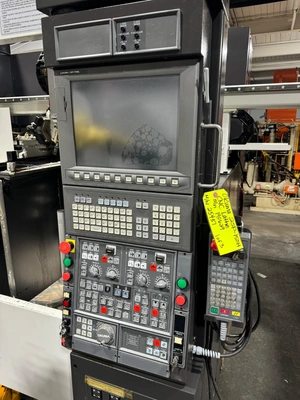

Okuma OSP-P300L CNC Control
8" 3-Jaw Chuck
Expanding Mandrel
Turret Tooling
Gantry Loader
Pendant Controller
Chip Auger
Stack Light
