USED Bridgeport SERIES II

58" Table 4HP Spindle Bridgeport SERIES II VERTICAL MILL, Var-Speed, #40 PDB, Mitutoyo DRO, Pwr Feeds

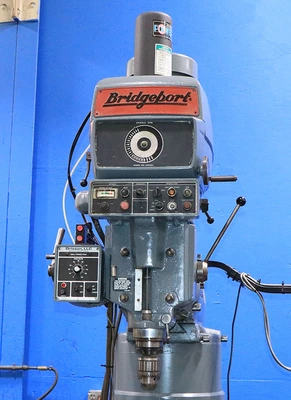

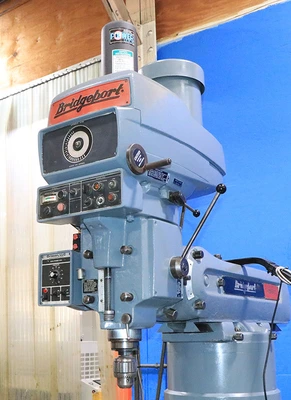

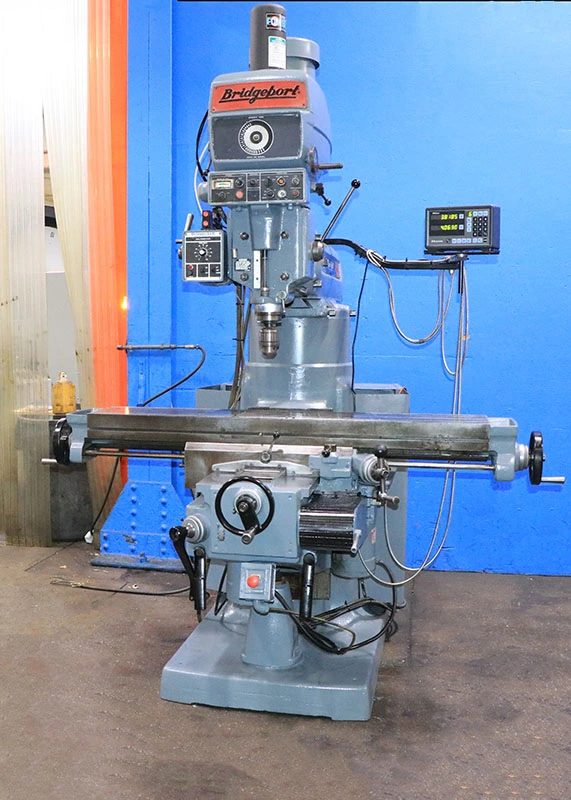

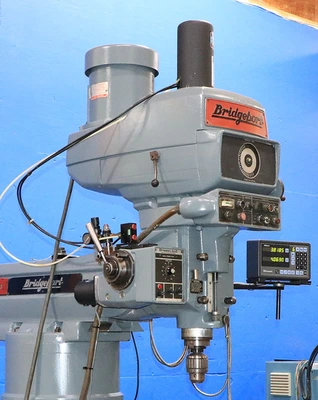

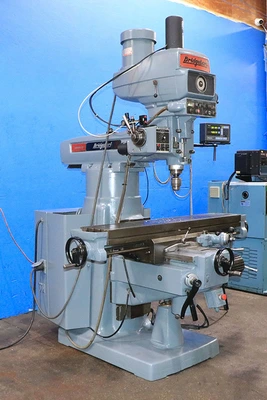

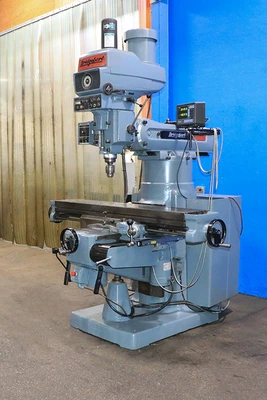

11" X 58" BRIDGEPORT VERTICAL MILL

MODEL: SERIES II, S/N: 2154, NEW: 1980's

SPECIFICATIONS:

WORKING SURFACE OF TABLE ................. 11" X 58"

RANGE:

- LONGITUDINAL ........................... 30"

- CROSS .................................. 15"

VERTICAL (KNEE) .......................... 16"

RAM TRAVEL ............................... 16"

MAXIMUM THROAT DISTANCE .................. 26-5/8"

MINIMUM THROAT DISTANCE .................. 10-5/8"

MAXIMUM TABLE LOAD CAPACITY .............. 1,500 LBS.

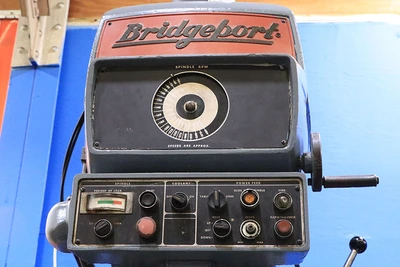

SPINDLE SPEEDS, TWO RANGES ............... 50 TO 450 RPM

INFINITELY VARIABLE ...................... 450 TO 3500 RPM

QUILL TRAVEL ............................. 5"

QUILL POWER FEED RANGE ................... .6 TO 2.5 IPM

FEEDS:

- LONGITUDINAL ........................... 3/8 TO 24 IPM

- CROSS .................................. 3/16 TO 12 IPM

RAPID TRAVERSE RATE:

- LONGITUDINAL AND CROSS ................. 24 IPM

- VERTICAL (KNEE) ........................ 12 IPM

TAPER IN SPINDLE ......................... #40 QUICK CHANGE

HEAD TILTS:

- LEFT TO RIGHT .......................... 90 DEG.

- FRONT TO BACK .......................... 30 DEG.

RAM SWIVELS .............................. 360 DEG.

APPROXIMATE WEIGHT ....................... 5,500 LBS.

EQUIPPED WITH:

- #40 TAPER SPINDLE

- KURT AIR ACTUATED DRAW BAR

- FEEDS ON QUILL & KNEE & TABLE

- OPTIONAL TABLE CONTROL CRANK

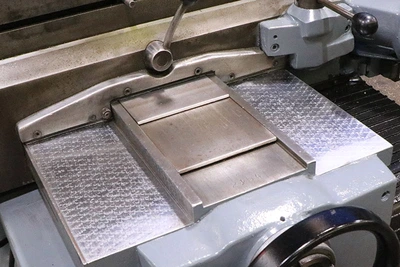

- BOX CHROME WAYS ON SADDLE

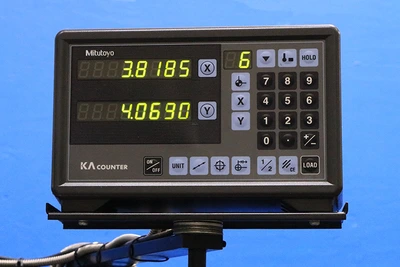

- MITUTOYO TWO AXIS DIGITAL READOUT

- 6" RISER BLOCK

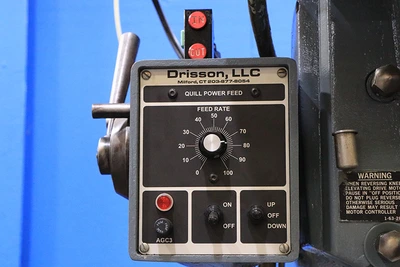

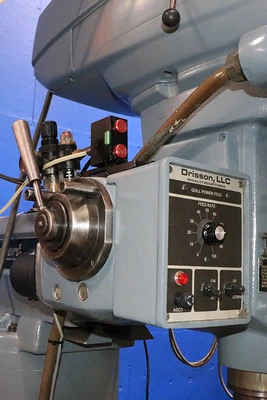

- NEW QUILL FEED DRIVE & MOTOR

- COOLANT PUMP

- BIJUR AUTOMATIC LUBRICATION SYSTEM

- 4 HORSE POWER MAIN QUI MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
