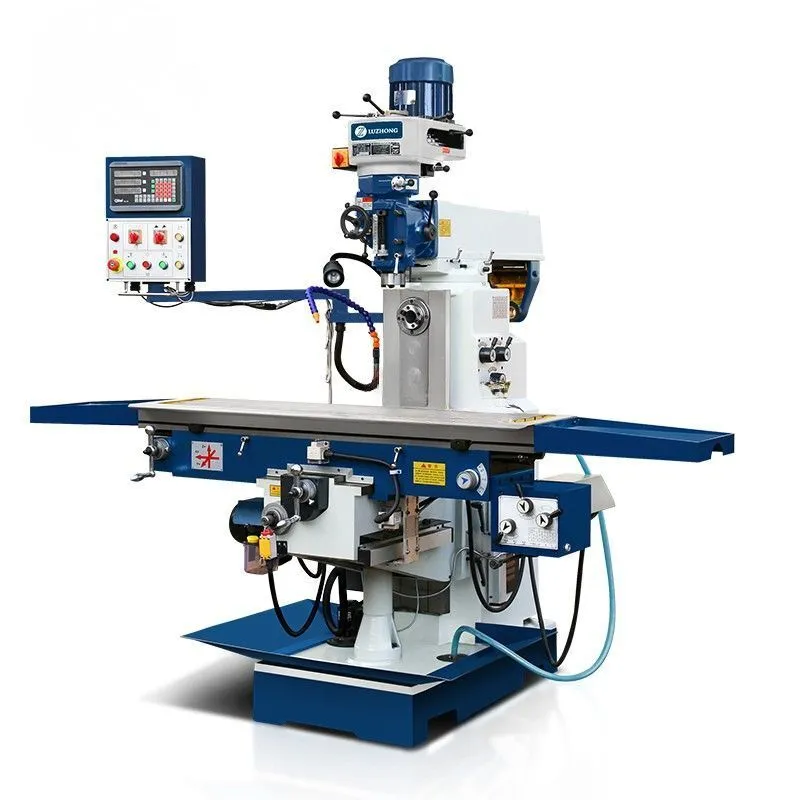

EP-Macmill HD Turret type milling machine
With horizontal milling capabilities.
Variable speed head
Power drawbar
3-axis DRO
Collet chuck & Boring Tool set/ 58 clamping set/
Please note photos are not of actual machine and design is subject to change.
| Table Size-W | 14.17" | 359.92 mm |
| Table Size-L | 59.06" | 1,500.1 mm |
| Dimensions | 87.4x70.47x92.91 | 87.4x70.47x92.91 |
| Weight | 10802.97 | 10802.97 |
Spindle taper: ISO40(V) ISO50(H)
Diameter of quill:120 mm
Distance from spindle to table:135 -535 mm
Distance between spindle axis and boom:230 mm
Distance from spindle to column:200-700 mm
Spindle speeds:60-4540r.p.m(V) 60-1800 r.p.m(H)
Spindle travel:127mm
Feeding of quill:(3step)0.04 0.08 0.15
Max.drilling capacity of auto-feeding:10 mm
Head movement:±45°
Table size:1500x360 mm
Table travel:1000 /320 /400 mm
Feeding range of longitudinal.cross travel:22-555 mm/min(8级)
X,Y-axis rapid feed speed:1080 mm/min
Z-axis rapid feed speed:590 mm/min
Z-axis motor power:1.1KW
Max.weight of work piece:400 kg
T-slot Number/width/distance: 3/18/80mm
Milling head moving (Vertical):5 HP(V) 4 kw(H)
Cross slide way:40W
X,Y axis driving motor:750 W
Overall dimension:2220x1790x2360 mm
Packing size:2300x1900x2250 mm
N.W./G.W.:4900/5200 kg
