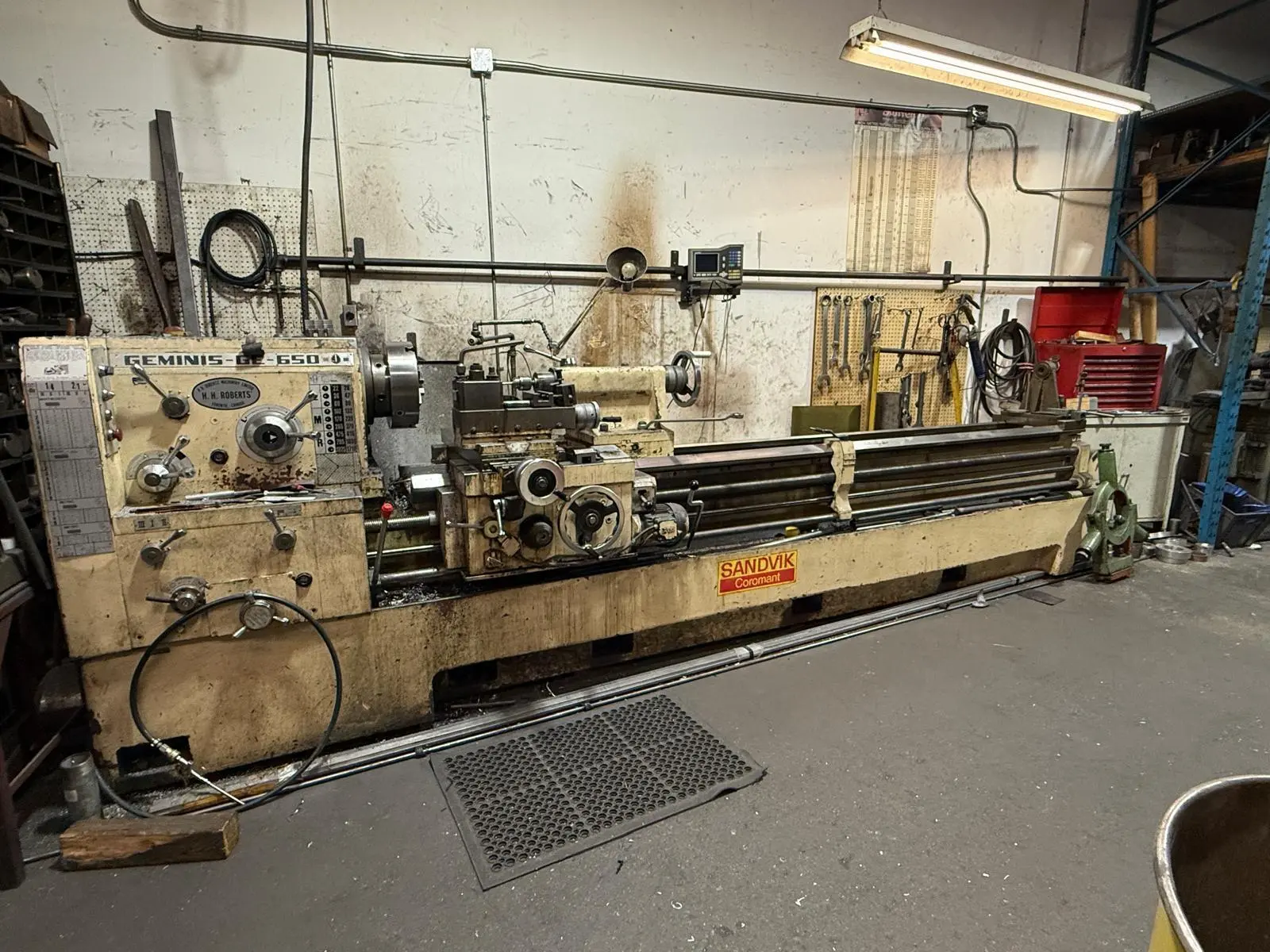

USED GEMINIS GE-650

GEMINIS GE-650 10'FT MANUAL ENGINE LATHE

Manufacturer: Geminis
Model: GE-650

POWER: 575v, 60hz, 3ph

Capacity
Swing Over Bed: 27in (650 mm)
Swing Over Cross Slide: 15.7 in (400 mm)
Distance Between Centers: Approx. 120 in

Spindle
Spindle Bore: ~4.1 in (105 mm)
Spindle Nose: Camlock D1-8
Spindle Speeds: Approx. 12–1,200 RPM

Feeds & Threading
Longitudinal Feeds: Wide multi-range selection
Cross Feeds: Yes

Threading:
Metric threads
Imperial (Whitworth) threads
Feed/thread chart mounted on headstock
Leadscrew: Full-length precision lead screw
Separate feed rod: Yes

Carriage & Slides
Apron: Power longitudinal & cross feed
Thread Dial Indicator: Yes
Compound Rest: Swiveling

Tailstock
Quill Diameter: ~4.7 in (120 mm)
Quill Travel: ~9.8 in (250 mm)
Taper: MT5
Tailstock Offset: Yes

Main Motor Power: 11 kW (15 HP)

*Accessories Included*
3-Jaw Chuck
4-Jaw Chuck (qty:2)
Steady Rest

Weight: 15,000 lbs
Machine Dimensions: 204'' x 75'' x 78''
