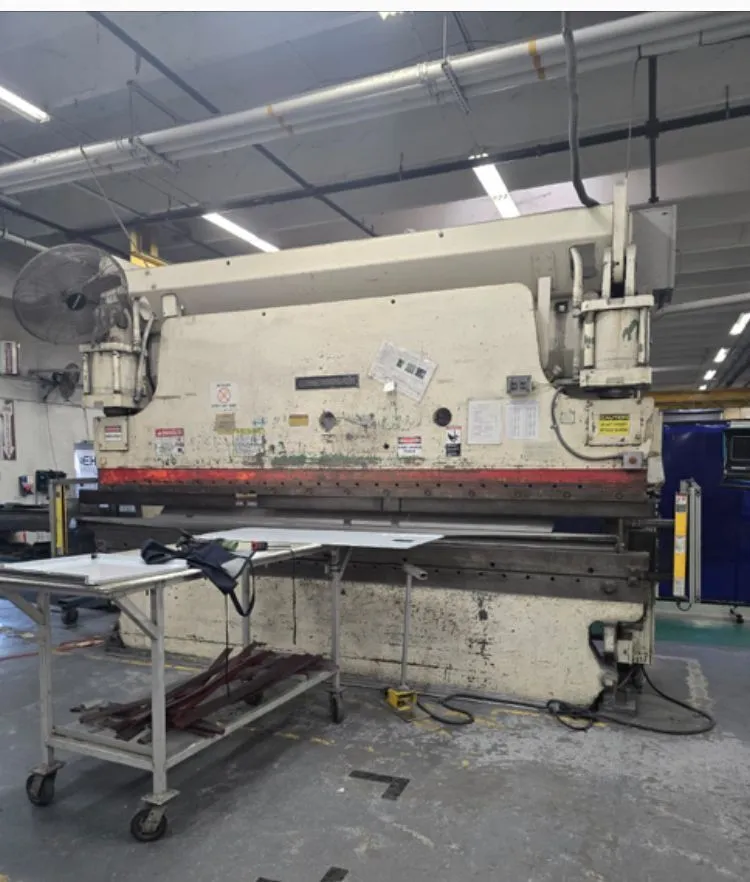

CINCINNATI INC 230CBx12 Hydraulic Press Brake available. Features 230T tonnage, 14' overall length, and 12.6' between housings. Used condition with 10" stroke. Ideal for precision bending tasks.
| Tonnage | 230 T | 208.653 t |
| Type | 'HYD' | 'HYD' |
| Overall Length | 14' | 4.3 m |
| Between Housings | 12.6' | 3.8 m |
| Stroke | 10" | 254 mm |
| Dimensions | 170" X 48" X 127" | 170" X 48" X 127" |
| Weight | 33000 Lbs | 33000 Lbs |
Tonnage Capacity: 230 tons
Overall Bending Length (bed/ram length): 14 feet (some listings note 12 feet effective working length, but overall is typically 14')
Distance Between Housings (clear working width): 12 feet 6 inches (12' 6") or approximately 150–152 inches
Stroke Length: 10 inches
Open Height (daylight): Approximately 17 inches
Closed/Shut Height: Approximately 7 inches
Throat Depth: Approximately 8 inches (some list 203 mm / 8")
Motor Power: Typically 25–30 HP (depending on configuration and voltage)
Design: Flush/floor-mounted or bed plate below grade
Common Features (on many used units): Dual palm buttons, foot pedal control, tonnage control, multiple depth stops, and often equipped with CNC back gauges (e.g., Hurco Autobend 5/7, single or multi-axis)
Approximate Weight: 29,000–33,000 lbs
Typical Bending Capacity Example: Around 12' × 1/4" mild steel (varies by material and tooling)
