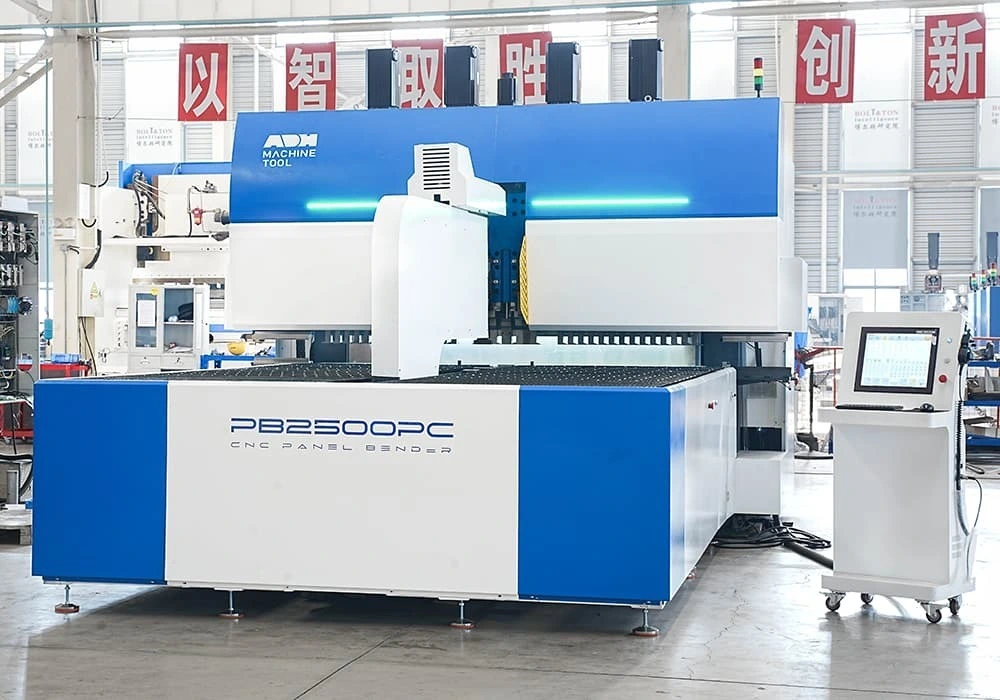

2026 ADH Panel Bender w/ robot loading, Auto-Tool Type Panel Bender, Advanced 24+4 Axis System
Achieve 0.2s bends and complex, mold-free designs with ease. Our Panel Bender features intuitive controls, low power consumption, and minimal maintenance. Fully Industry 4.0 integrated with intelligent systems for peak efficiency and protection. Simplify production, maximize output.
About ADH EMPLOYEES: 617 SALES & SERVICES OFFICES: 67 R & D TECHNICAL: 43
Founded in March 2002, Anhui Donghai Machine Tool Co., Ltd. (Brand: ADH) is a high-tech enterprise specializing in the production of press brake, hydraulic guillotine, fiber laser cutter etc. ADH is a comprehensive leading enterprise in the machine tool industry in China, which integrates automatic control system design, new product research and development, and equipment manufacturing innovation platform formation. Our factory is located in Bowang District, Ma'anshan City, Anhui Province, only 30 kilometers away from Nanjing Lukou International Airport and can be reached within 30 minutes by car.

Bending Length 3200mmBending Height 200mmMinimum Dimension for Four-Sided Forming 390/180mmMinimum Dimension for Two-Sided Forming 180mmMinimum Bending Height 6mmMinimum Arc Radius
4mmMaximum Diagonal 3600mmBending Angle /
Bending Speed 0.2s/bendingNumber of Axes 24+4Bending Plate Thickness ColdPlate: 2mmStainlessSteel: 1.5mmAluminum: 3.5mmGalvanizedPlate: 2mmHot-RolledPlate: 2mmSpindle Travel X - Ax i s: 150mmZ - Ax i s: 230mmU-Axis:
Feeding Structure pressingarmMaximum Feed Speed 0.8m/minTool Change Mode automaticUpper Tool Pressure on Two Axis /
Worktable Structure Brush and ball transferTotal Power 165kwPeak Power 110kwDimensions (L*W*H) 6900mmX4200mmX3500mmTotalWeight 28t

Item Unit Model
A3200
Bend length mm 3200
Bend height mm 200
Min size for four-sided forming mm 390/180
Min size for two-sided forming mm 180
Min bend height mm 6
Min arc radius mm 4
Max diagonal mm 3600
Bend angle ° /
Bending speed s/bend 0.2
Number of axis m/min 24+4
Bending plate thickness Cold plate mm 2
Stainless steel mm 1.5
Aluminum plate mm 3.5
Galvanized plate mm 2
Hot-rolled plate mm 2
Main axis travel
X-axis 150
Z-axis 230
U-axis 1800
Y-axis 300
Feeding structure Pressing arm
Maximum feeding speed m/min 0.8
Tool change method Automatic
2-axis upper tool pressure /
Upper and lower sub-tools Optional
Workbench structure Brush and ball transfer unit
Total power
Kw 165kw
Peak power
KW 110kw
Overall dimensions L*W*H 271.65"L x 165.3"W x 137.8"H
Total weight Tons 28t
